ADJUSTMENT Head Related Checks and Adjustments 332
Confidential
4.11 Head Related Checks and Adjustments
4.11.1 Head ID Check & Input
EXECUTION MODE
Normal Mode
PROCEDURE
1. Write down the Head Rank ID (QR code) from the ID label attached on the new
Printhead if replacing the Printhead.
2. Assemble the printer.
3. Turn the printer ON.
4. Start the Service Program and select Head ID Check & Input.
5. Enter the 45-digit ID into the edit boxes in the same way as indicated on the label.
(Enter the digits continuously without pressing the Space, Enter, or Tab key.)

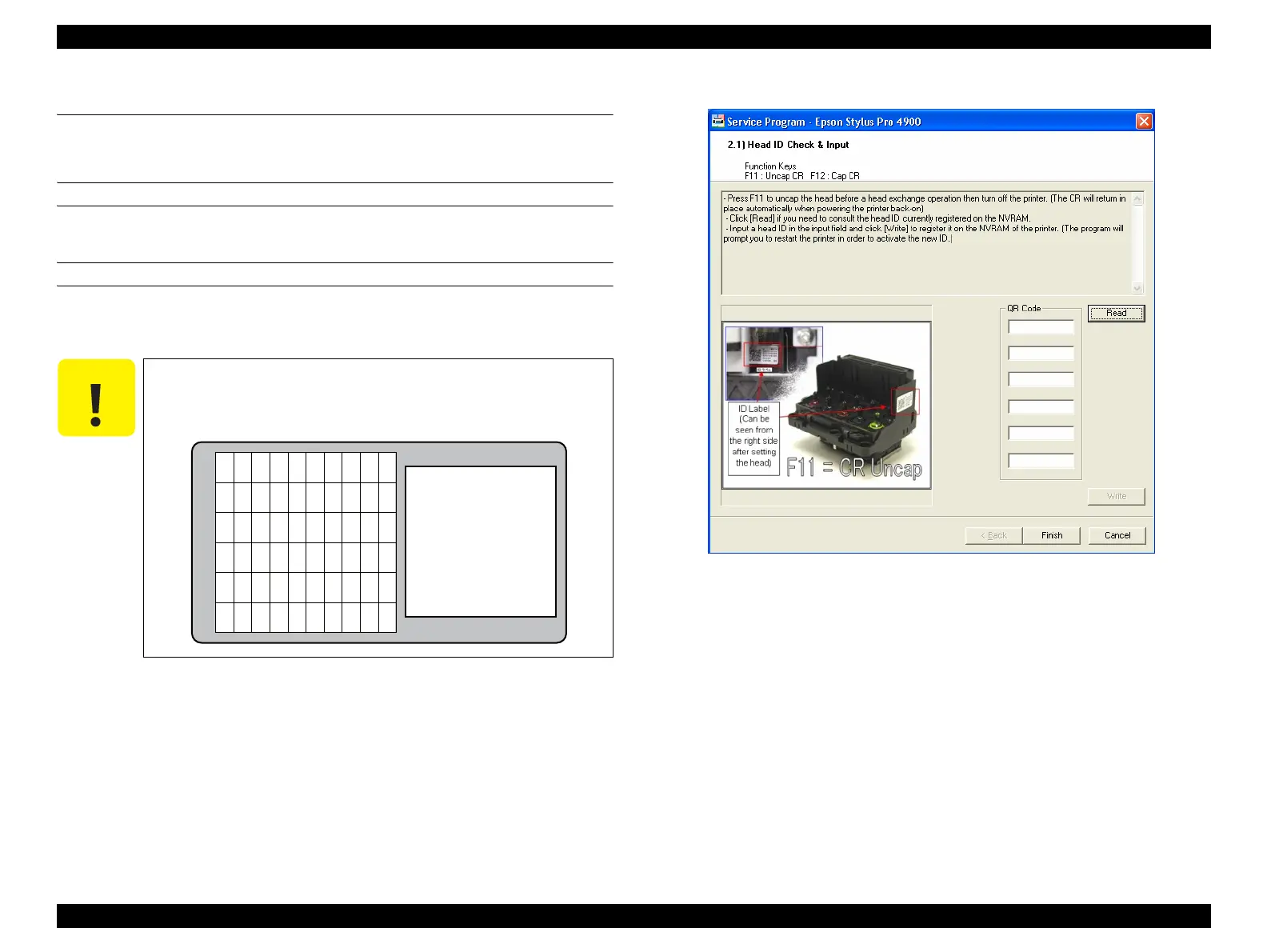

Figure 4-37. [Head ID Check & Input] Screen
C A U T I O N
A 48-digit alphanumeric character is written on the ID Label.
Use the first 45 digits for the Head Rank ID. (the last three digits
are not used.)
12 345678
91011121314
15 16 17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32 33 34
35 36 37 38 39 40 41 42 43 44
45
NA NA NA
QR code
