Air
Filter
and
Vent
Maintenance
144
b

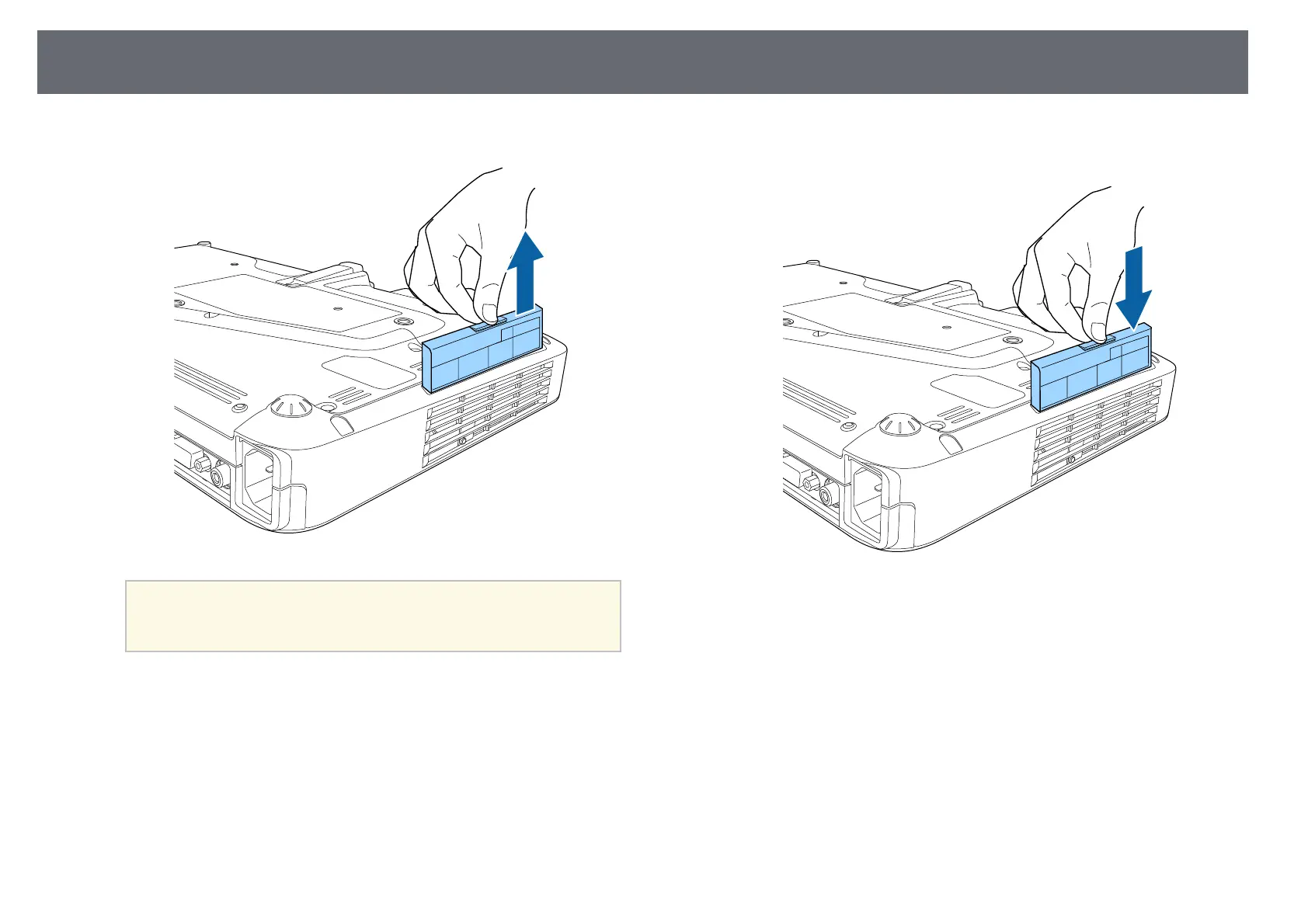

Pull
the
air
filter
out
of
the
projector.
a
Dispose
of
used
air
filters
according
to
local
regulations.
•
Filter
frame:
Polypropylene
•
Filter:
Polypropylene
c
Place
the
new
air
filter
in
the
projector
as
shown
and
push
gently
until
it
clicks
into
place.
g
g
Related
Links
•
"Replacement
Parts"
p.168
143
145
