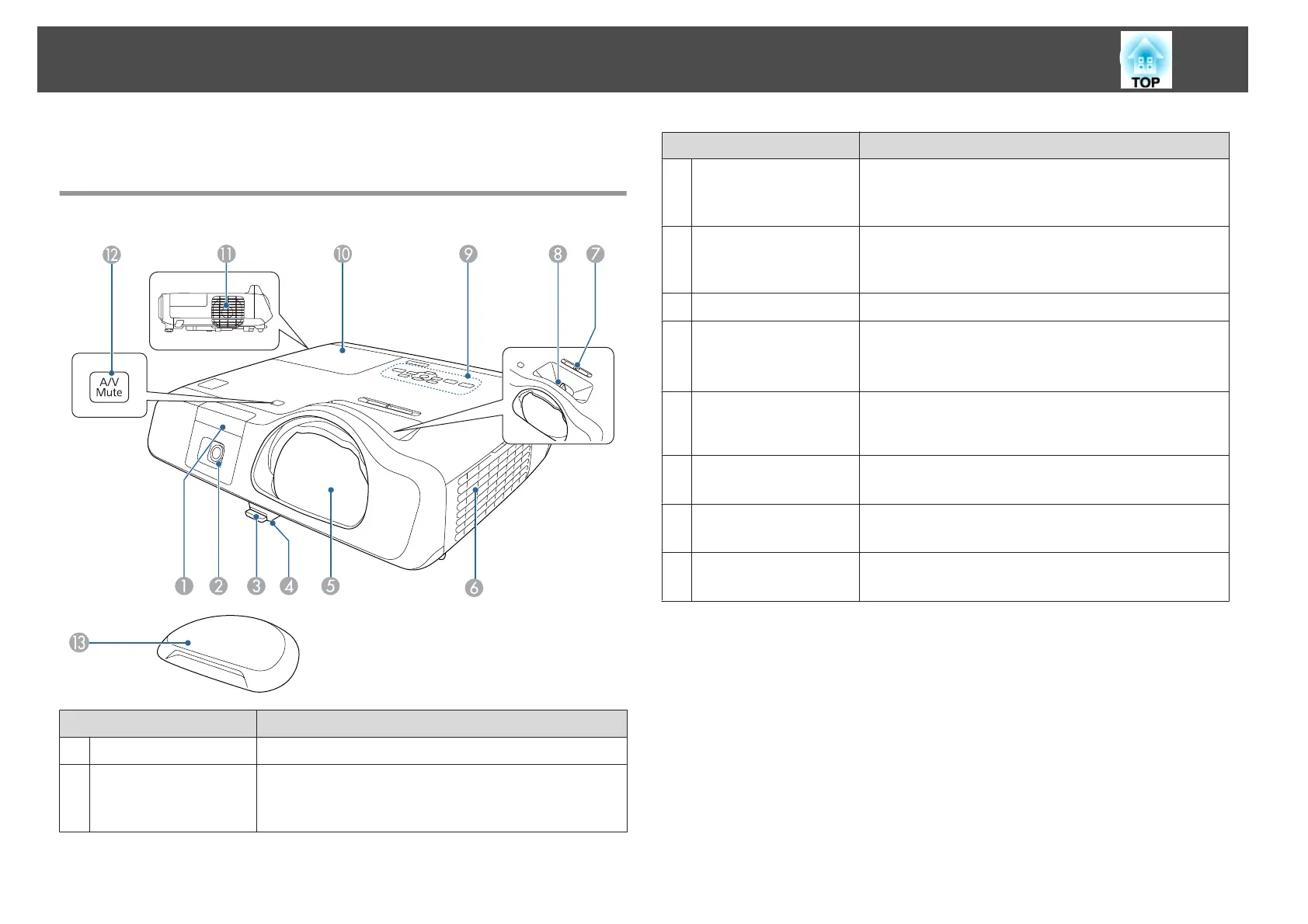

The illustrations currently used in this guide are for the EB-536Wi.
Front/Top
Name Function
A
Remote receiver
Receives signals from the remote control.
B
Easy Interactive Func-
tion receiver
(EB-536Wi only)
Receives signals from the interactive pen.
s "Using the Interactive Features (EB-536Wi only)"
p.58
Name Function
C
Foot adjust lever
Press the foot adjust lever to extend and retract the front
adjustable foot.
s "Adjusting the Image Position" p.52
D
Front adjustable foot
When setup on a surface such as a desk, extend the foot to
adjust the position of the image.
s "Adjusting the Image Position" p.52
E
Projection lens
Projects images.
F
Air intake vent
(Air filter)
Takes in air to cool the projector internally.
s "Cleaning the Air Filter" p.163
s "Replacing the Air Filter" p.169
G
Horizontal keystone
adjuster (EB-536Wi
only)
Corrects horizontal distortion in the projected image.
s "Correcting Manually" p.49
H
Focus ring
Adjusts the image focus.
s "Correcting the Focus" p.53
I
Control Panel
Operates the projector.
s "Control Panel" p.15
J
Lamp cover
Open when replacing the projector's lamp.
s "Replacing the Lamp" p.166
Part Names and Functions
11

Table of Contents

Other manuals for Epson EB-520

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Epson EB-520 and is the answer not in the manual?

Epson EB-520 Specifications

General IconGeneral
Matrix size0.55 \
Matrix type3-panel (p-Si TFT active)
Number of colors1.073 billion colors
Native aspect ratio4:3
Projection distance0.5 - 1.3 m
Vertical scan range50 - 85 Hz
Projection technology3LCD
Contrast ratio (typical)16000:1
Screen size compatibility50 - 108 \
Projector native resolutionXGA (1024x768)
Keystone correction, horizontal15 °
Projector brightness (economic mode)1600 ANSI lumens
FocusManual
Throw ratio0.55:1
Focal length range0 - 6.4 mm
Lamp power200 W
Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)10000 h
Full HDNo
Video processing10 bit
Analog signal format system-
Microphone inYes
USB connector typeUSB Type-A, USB Type-B
Serial interface typeRS-232
USB 2.0 ports quantity2
VGA (D-Sub) ports quantity3
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN (RJ-45) ports0
Noise level35 dB
Country of originChina
Noise level (economic mode)28 dB
RMS rated power16 W
PlacementDesktop, Ceiling
Product typeShort throw projector
Product colorWhite
Cable lock slot typeKensington
Power sourceAC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (standby)0.28 W
Power consumption (typical)278 W
Power consumption (PowerSave)219 W
Storage temperature (T-T)-10 - 60 °C
Operating temperature (T-T)5 - 35 °C
Storage relative humidity (H-H)10 - 90 %
Operating relative humidity (H-H)20 - 80 %
Pallet width800 mm
Pallet height2250 mm
Pallet length1200 mm
Pallet width (UK)1000 mm
Quantity per pack1 pc(s)
Quantity per pallet40 pc(s)
Quantity per pallet (UK)60 pc(s)
Quantity per pallet layer4 pc(s)
Quantity per pallet layer (UK)6 pc(s)
Weight and Dimensions IconWeight and Dimensions
Depth315 mm
Width344 mm
Height94 mm
Weight3700 g
Package depth490 mm
Package width385 mm
Package height210 mm
Package weight5860 g
