Name Function
K
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Warning
Do not look into the vents. If the lamp explodes,
gases may escape and small fragments of glass may
be scattered which could cause an injury. Contact a
doctor if any fragments of broken glass are inhaled
or get into the eyes or mouth.
Caution
While projecting, do not put your face or hands
near the air exhaust vent, and do not place objects
that may become warped or damaged by heat near
the vent.
L
[A/V Mute] button
Turns the video and audio on or off.
s "Hiding the Image and Sound Temporarily (A/V
Mute)" p.90
Hold down the button for approximately three seconds
to perform auto pen calibration (EB-536Wi only).
M
Lens cover
Install when not using the projector to protect the lens
from being damaged or soiled.

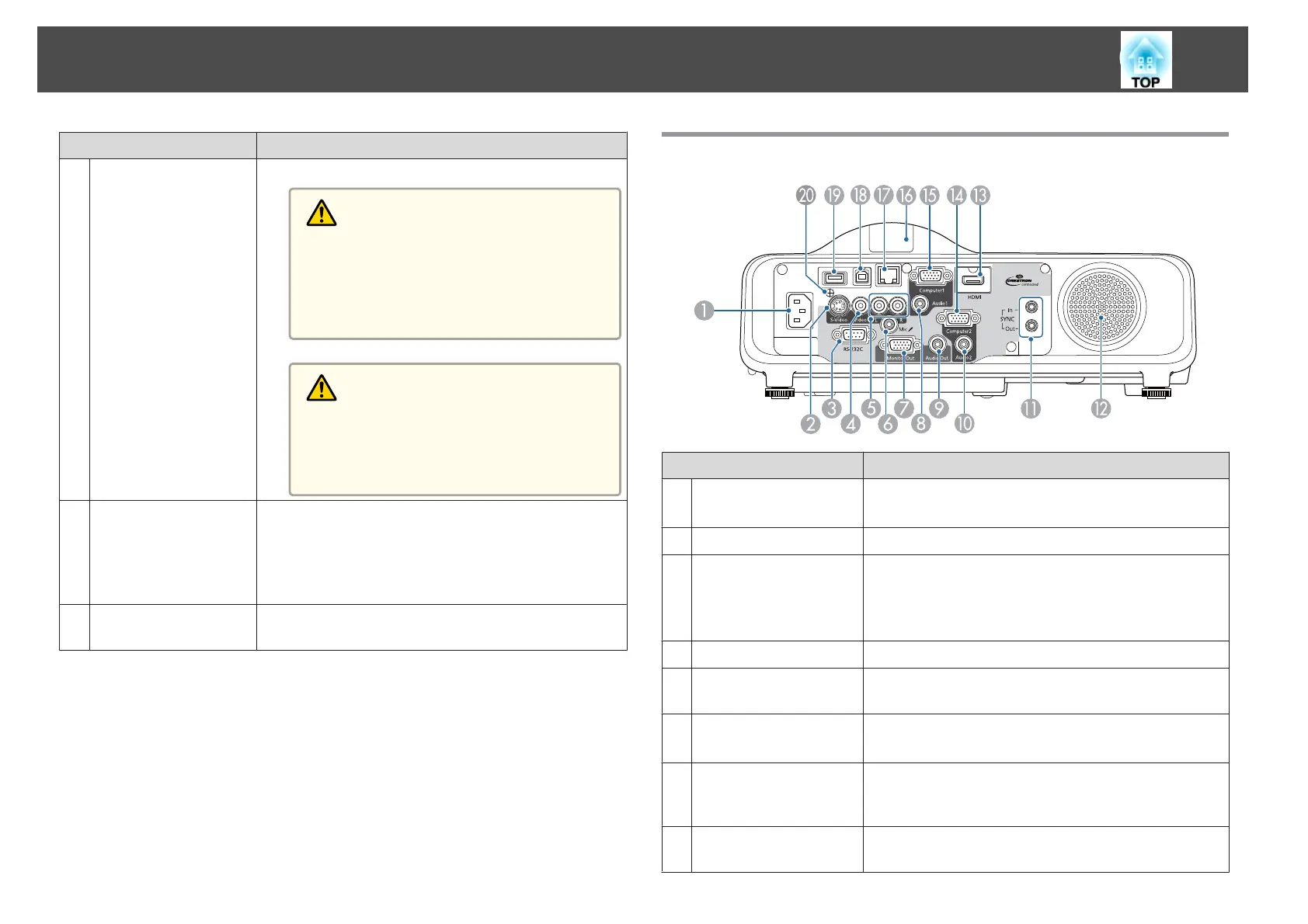

Rear
Name Function
A
Power inlet
Connects the power cord to the projector.
s "Turning On the Projector" p.41
B
S-Video port
For S-video signals from video sources.
C
RS-232C port
When controlling the device from a computer, connect it
to the computer with an RS-232C cable. This port is for
control use and should not normally be used.
s "ESC/VP21 Commands" p.106
D
Video port
Inputs composite video signals from video sources.
E
Audio-L/R port
Inputs audio from equipment connected to the S-Video
port or the Video port.
F
Mic port
Inputs audio from the microphone.
s "Connecting a Microphone" p.32
G
Monitor Out port
Outputs analog RGB signals input from the Computer1
port to an external monitor. You cannot output signals
input from other ports or component video signals.
H
Audio1 port
Inputs audio from equipment connected to the
Computer1 port.
Part Names and Functions
12
