Epson EB-535W User Manual

The illustrations currently used in this guide are for the EB-536Wi.

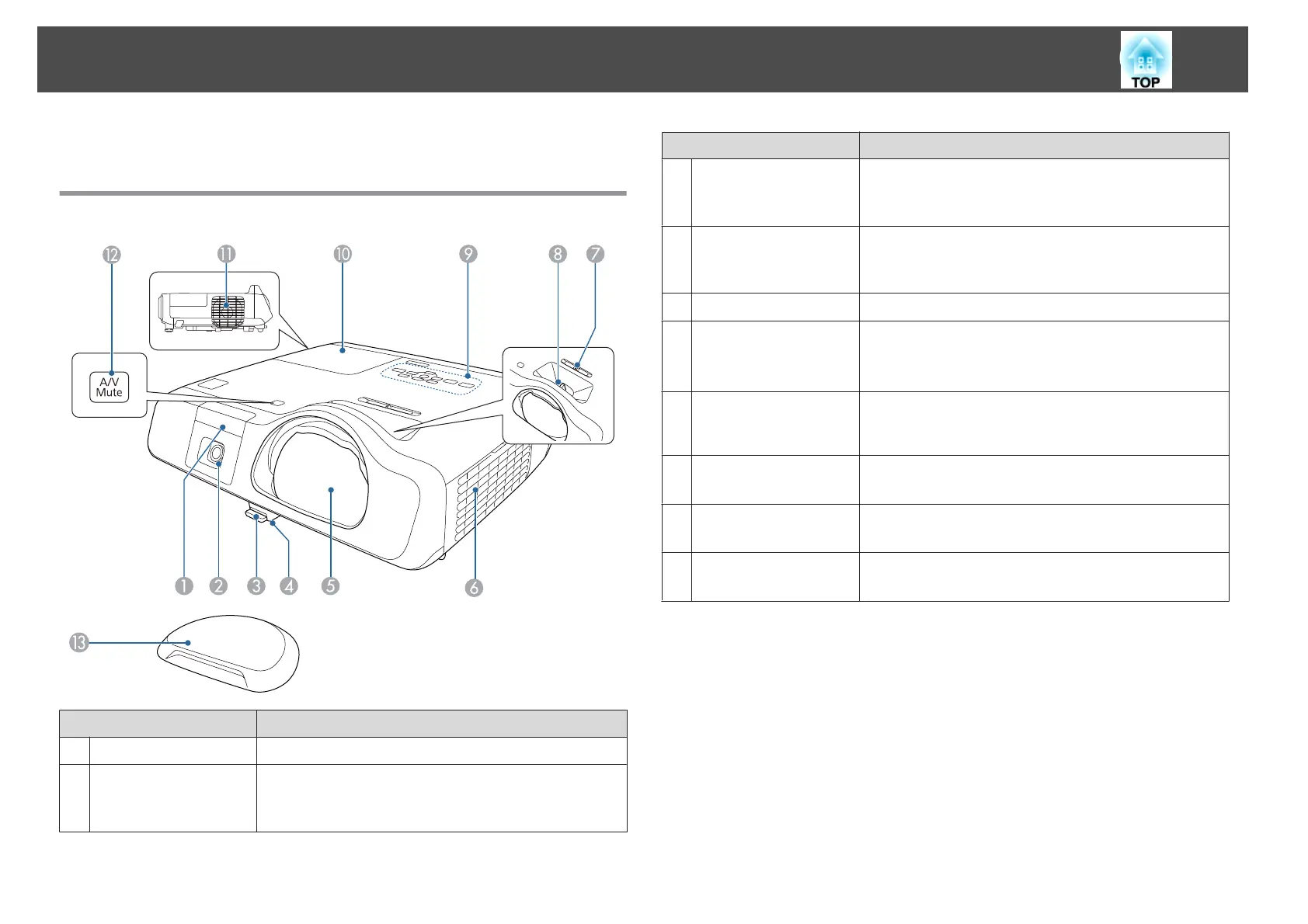

Front/Top
Name Function
A
Remote receiver
Receives signals from the remote control.
B
Easy Interactive Func-
tion receiver
(EB-536Wi only)
Receives signals from the interactive pen.
s "Using the Interactive Features (EB-536Wi only)"
p.58
Name Function
C
Foot adjust lever
Press the foot adjust lever to extend and retract the front
adjustable foot.
s "Adjusting the Image Position" p.52
D
Front adjustable foot
When setup on a surface such as a desk, extend the foot to
adjust the position of the image.
s "Adjusting the Image Position" p.52
E
Projection lens
Projects images.
F
Air intake vent
(Air filter)
Takes in air to cool the projector internally.
s "Cleaning the Air Filter" p.163
s "Replacing the Air Filter" p.169
G
Horizontal keystone
adjuster (EB-536Wi
only)
Corrects horizontal distortion in the projected image.
s "Correcting Manually" p.49
H
Focus ring
Adjusts the image focus.
s "Correcting the Focus" p.53
I
Control Panel
Operates the projector.
s "Control Panel" p.15
J
Lamp cover
Open when replacing the projector's lamp.
s "Replacing the Lamp" p.166
Part Names and Functions
11

Epson EB-535W Specifications

General

Number of colors	1.07 billion colors
Native aspect ratio	16:10
Projection distance	0.5 - 1.2 m
Vertical scan range	50 - 85 Hz
Projection technology	3LCD
Supported aspect ratios	-
Contrast ratio (typical)	16000:1
Screen size compatibility	53 - 116 \
Projector native resolution	WXGA (1280x800)
Keystone correction, horizontal	-15 - 15 °
Projector brightness (economic mode)	1900 ANSI lumens
Focus	Manual
Throw ratio	0.48 - 0.65:1
Focal length range	6.4 mm
Lamp power	215 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
Full HD	No
HD-Ready	Yes
Video processing	10 bit
Analog signal format system	NTSC, NTSC 4.43
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	37 dB
Country of origin	China
Noise level (economic mode)	29 dB
RMS rated power	16 W
Placement	Desktop
Product type	Short throw projector
Product color	White, Grey
Market positioning	Presentation
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.28 W
Power consumption (typical)	298 W
Power consumption (PowerSave)	221 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, VGA
Bundled software	iProjection, Epson Projector Management
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	60 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	85286200
Quantity per pallet layer (UK)	6 pc(s)
USB display function	3 in 1: Image / Mouse / Sound
Sustainability certificates	TCO

Weight and Dimensions

Depth	315 mm
Width	344 mm
Height	94 mm
Weight	3700 g
Package depth	497 mm
Package width	386 mm
Package height	215 mm
Package weight	5860 g
