Installation Guide
9

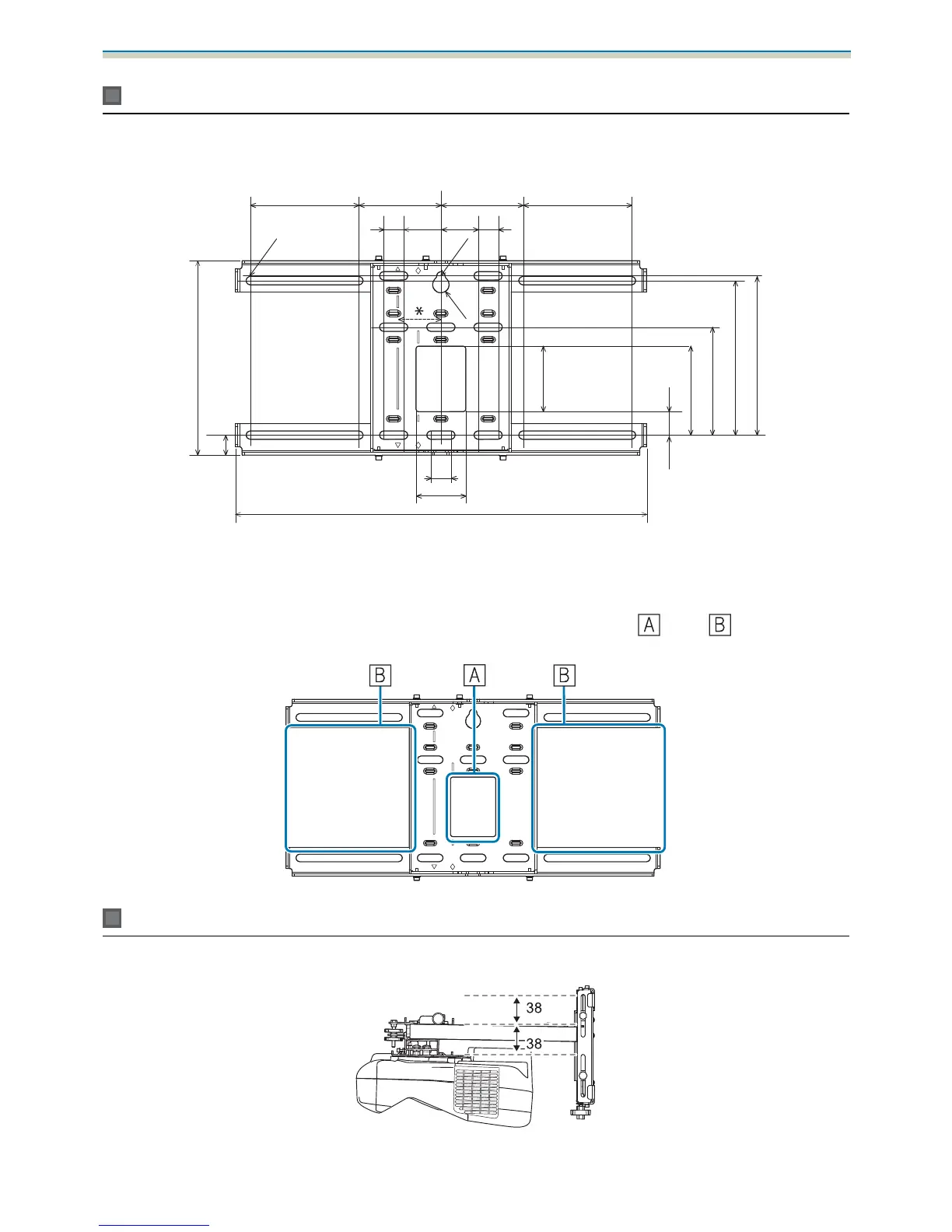

Wall plate
The following figure shows two frames connected to one plate (separate when shipped).
[Unit: mm]
186.4
130.2
107.3
28.3
4545
24
24
131131 99 99
79
192.3
234.4
24
60
24
496
5.1
5.1
R10
*
The offset value for the position of the center of the projected image and the center of the wall plate is 52 mm.
Cable routing holes
When routing cables to connect to the projector through a wall, use positions ( ) and ( ) in the following
figure as the cable routing holes.
Vertical slide adjustment range
[Unit: mm]
