The port name, location, and connector orientation differ depending on the source being connected.

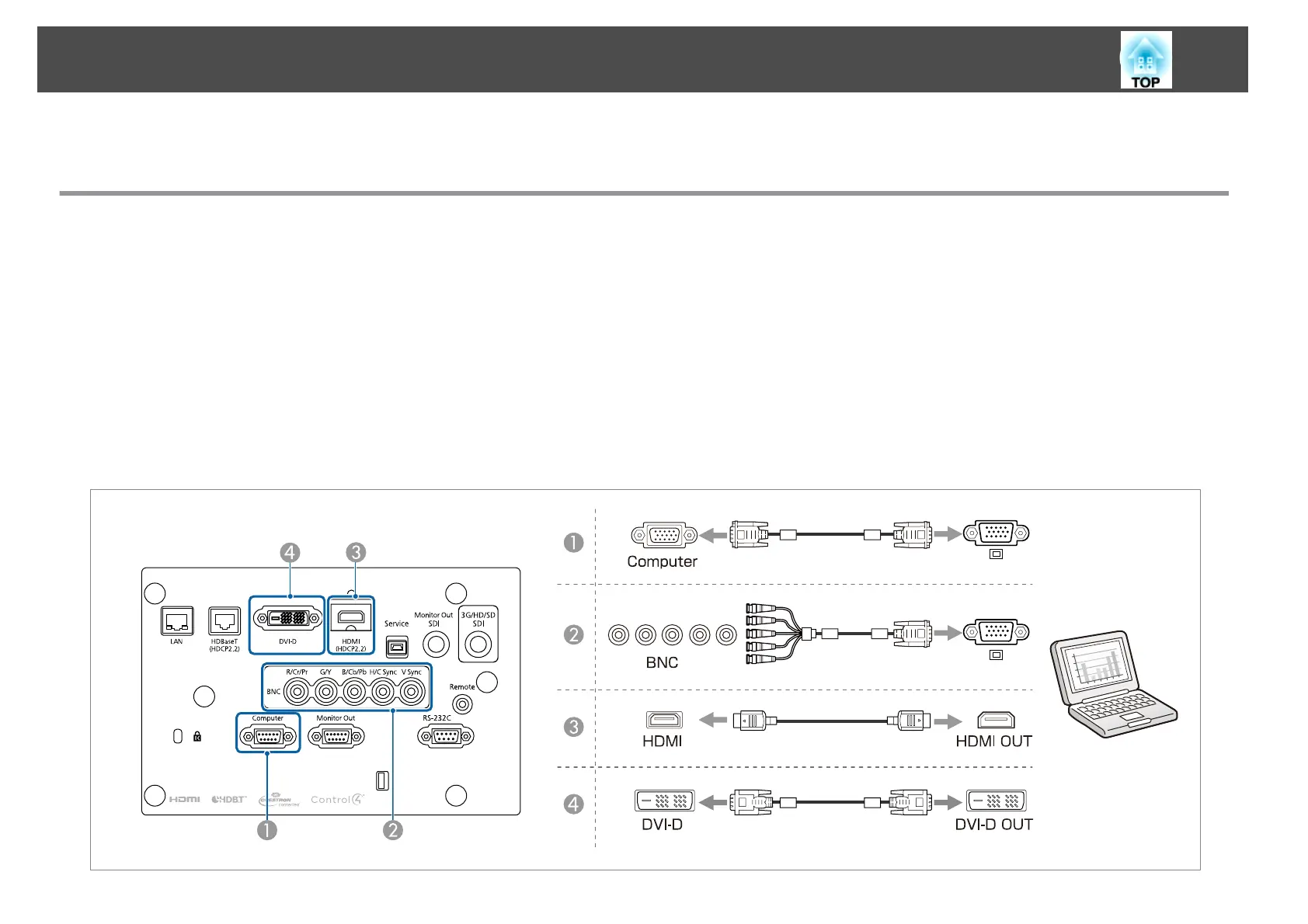

Connecting a Computer
To project images from a computer, connect the computer using one of the following methods.
A
When using a commercially available computer cable
Connect the computer's display output port to the projector's Computer port.
B
When using a commercially available 5BNC cable
Connect the computer's display output port to the projector's BNC port.
C
When using a commercially available HDMI cable
Connect the HDMI port on the computer to the projector's HDMI port.
D
When using a commercially available DVI-D cable
Connect the DVI-D port on the computer to the projector's DVI-D port.
Connecting Equipment
42
