EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480
Maintenance CONFIDENTIAL
SEIKO EPSON 130 Revision C

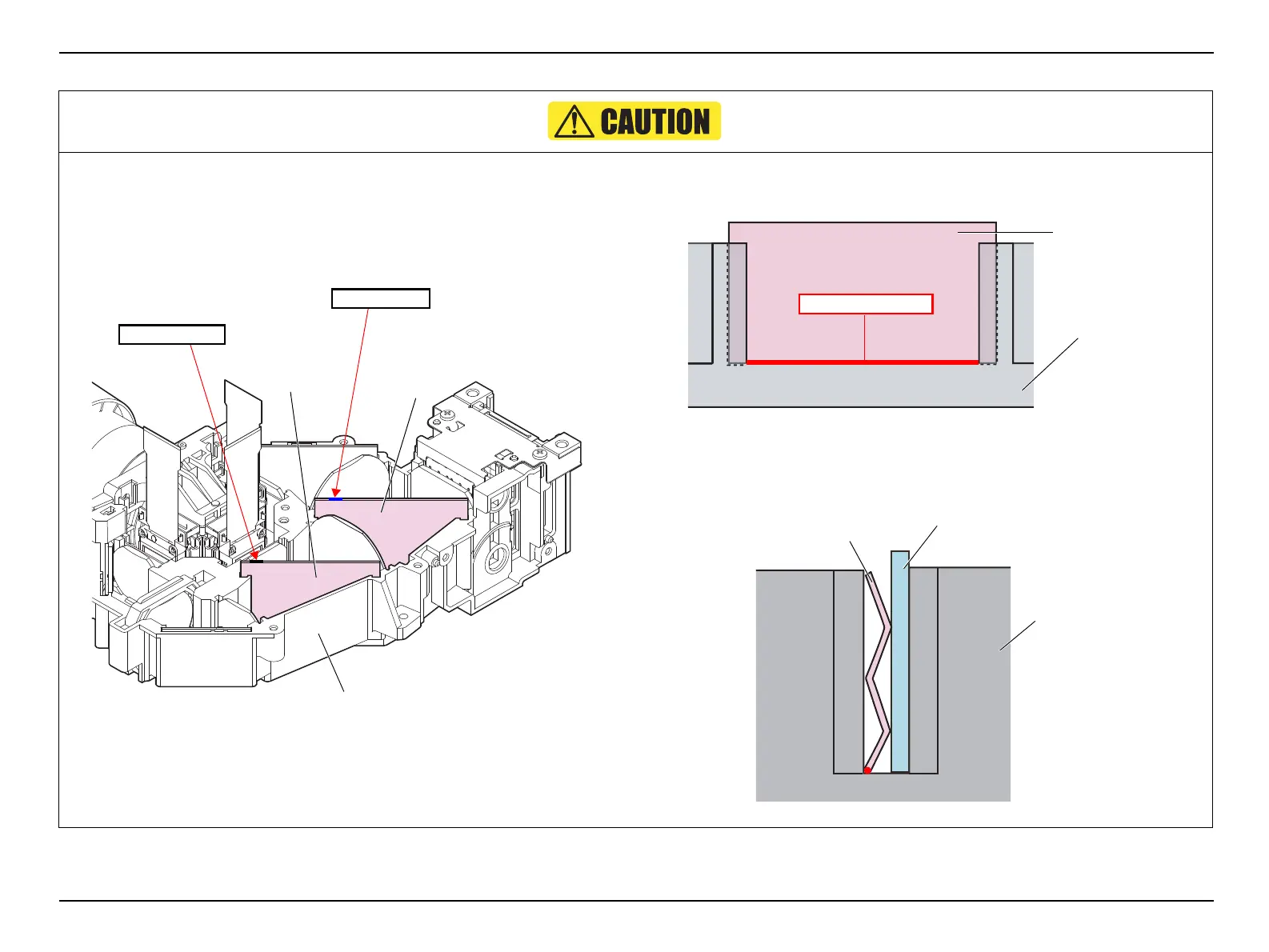

When reassembling the BDM/GDM, take care in the following instructions.
1. Install the
BDM/GDM
into the engine with their markings coming on the top
right as seen from the incidence side.
Figure 4-17.
2. Insert the
BDM/GDM
without any gap between the bottom of them and the
LIGHT GUIDE,LOWER.
Figure 4-18.
3. Insert the springs without any gap between the bottom and the LIGHT
GUIDE,LOWER to secure the
BDM/GDM
Figure 4-19.
LIGHT GUIDE,LOWER
GDM
Blue Marking
Black Marking
BDM
BDM/GDM
No gap in between
LIGHT GUIDE,LOWER
Spring,Mirror Fixing,FIF
BDM/GDM
LIGHT GUIDE,LOWER
To Next Page
