11. Remove the following parts from the Upper Case.
• Upper Cushion A x 2
• Upper Cushion B
• Upper Cushion C
• Shutter Cushion A x 2
• Shutter Cushion B x 2

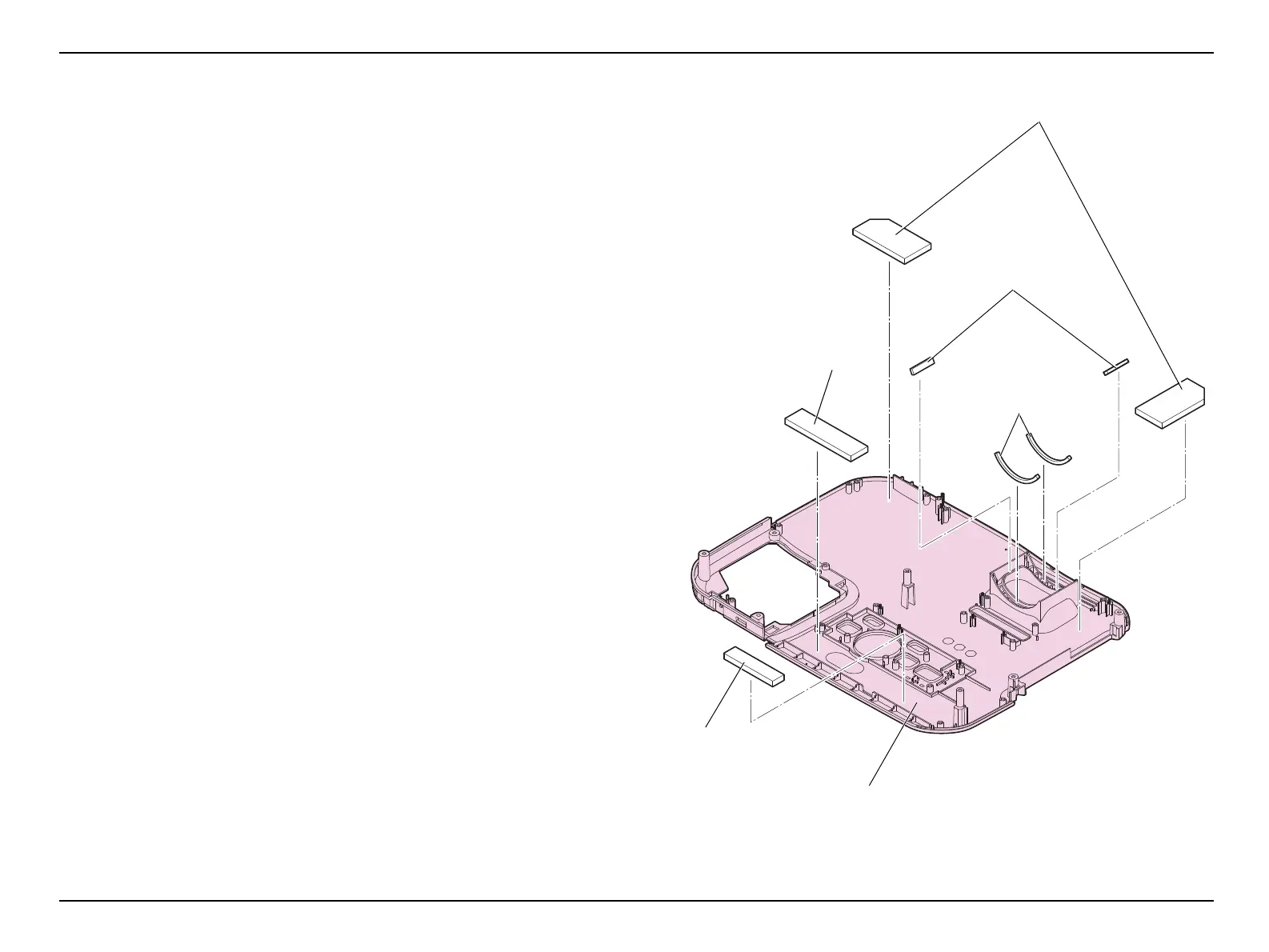

Figure 3-13.
Upper Case
Upper Cushion C
Upper Cushion B
Shutter Cushion B
Upper Cushion A
Shutter Cushion A
