Epson EB-X14G Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Maintenance CONFIDENTIAL
SEIKO EPSON 132 Revision C

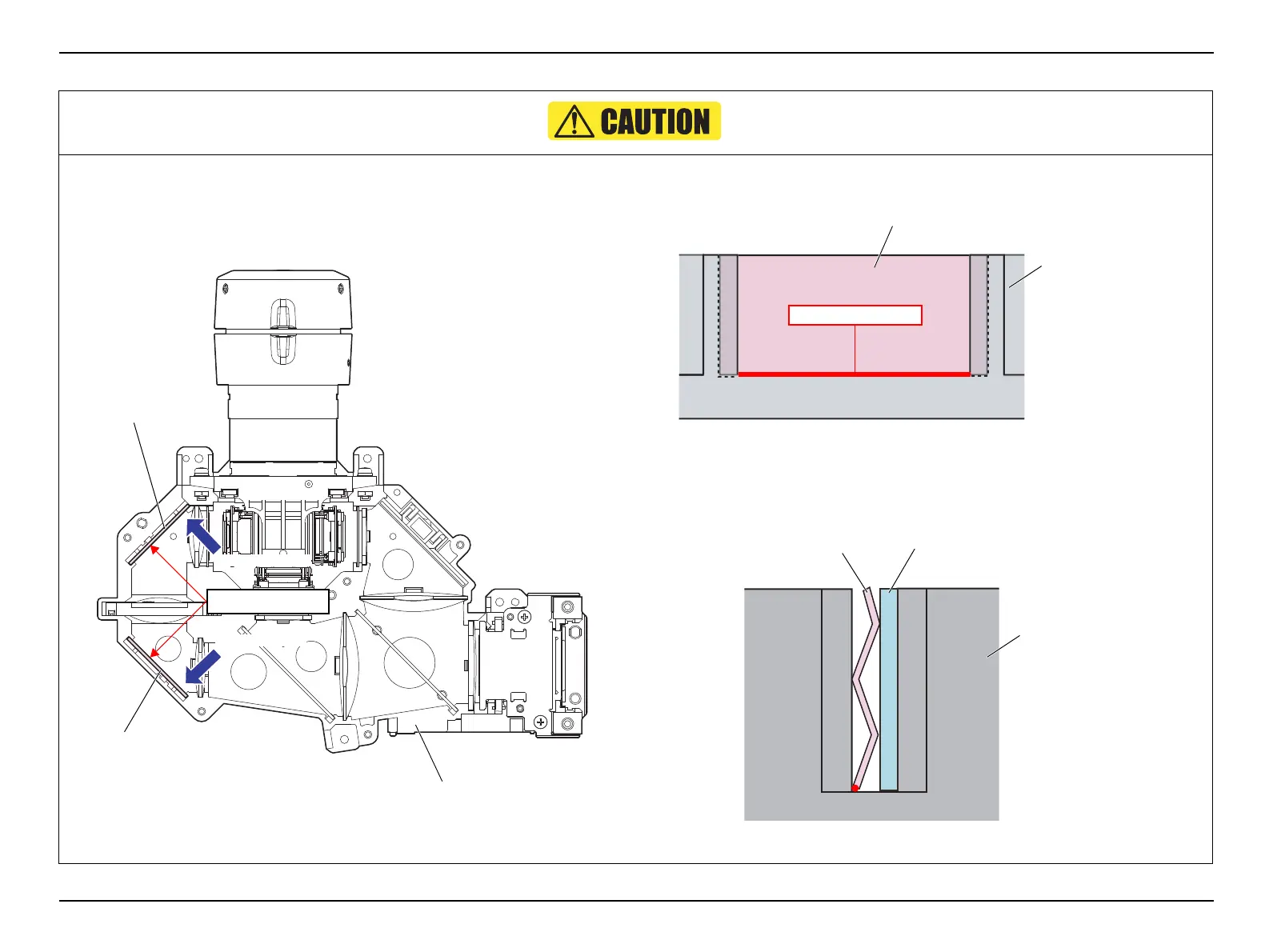

Install the MIRROR;R according to the following instructions.
1. Install the MIRROR;R to the engine with the reflection surface to the incidence
side (inwards).
Figure 4-21.
2. Insert the MIRROR;R without any gap between the bottom of them and the
LIGHT GUIDE,LOWER.
Figure 4-22.
3. Insert the springs without any gap between the bottom and the LIGHT
GUIDE,LOWER to secure the MIRROR;R.
Figure 4-23.
Reflection surface
Incidence side
MIRROR;R
Incidence side
MIRROR;R
LIGHT GUIDE,LOWER
MIRROR;R
LIGHT GUIDE,LOWER
No gap in between
MIRROR;R
Spring,Mirror Fixing,FIF
LIGHT GUIDE,LOWER
