Epson EB-X14G Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Maintenance CONFIDENTIAL
SEIKO EPSON 135 Revision C
4.2.6 MULTI LENS;A
1. Remove the LIGHT GUIDE,UPPER. (p.122)
2. Remove the COVER,ML. (p.133)
3. Remove the MULTI LENS;A.
4. Remove the two SPRING,ML FASTEN.

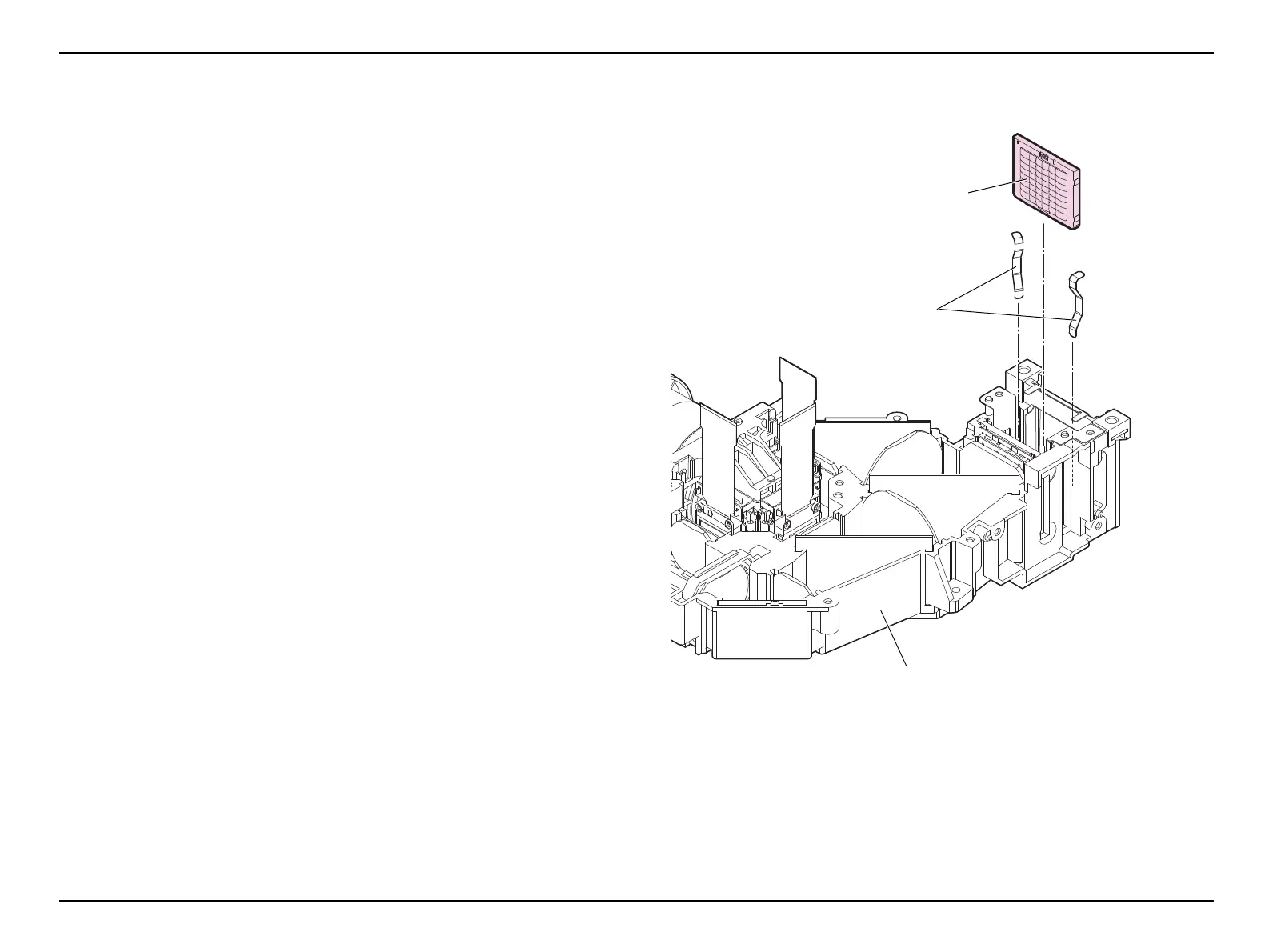

Figure 4-28.
MULTI LENS;A
LIGHT GUIDE,LOWER
SPRING,ML
FASTEN
