3.3.4 Front Foot
1. Insert the tips of tweezers or a similar tool into the holes on both sides of the Front
Foot to release the hooks, and remove the Front Foot.

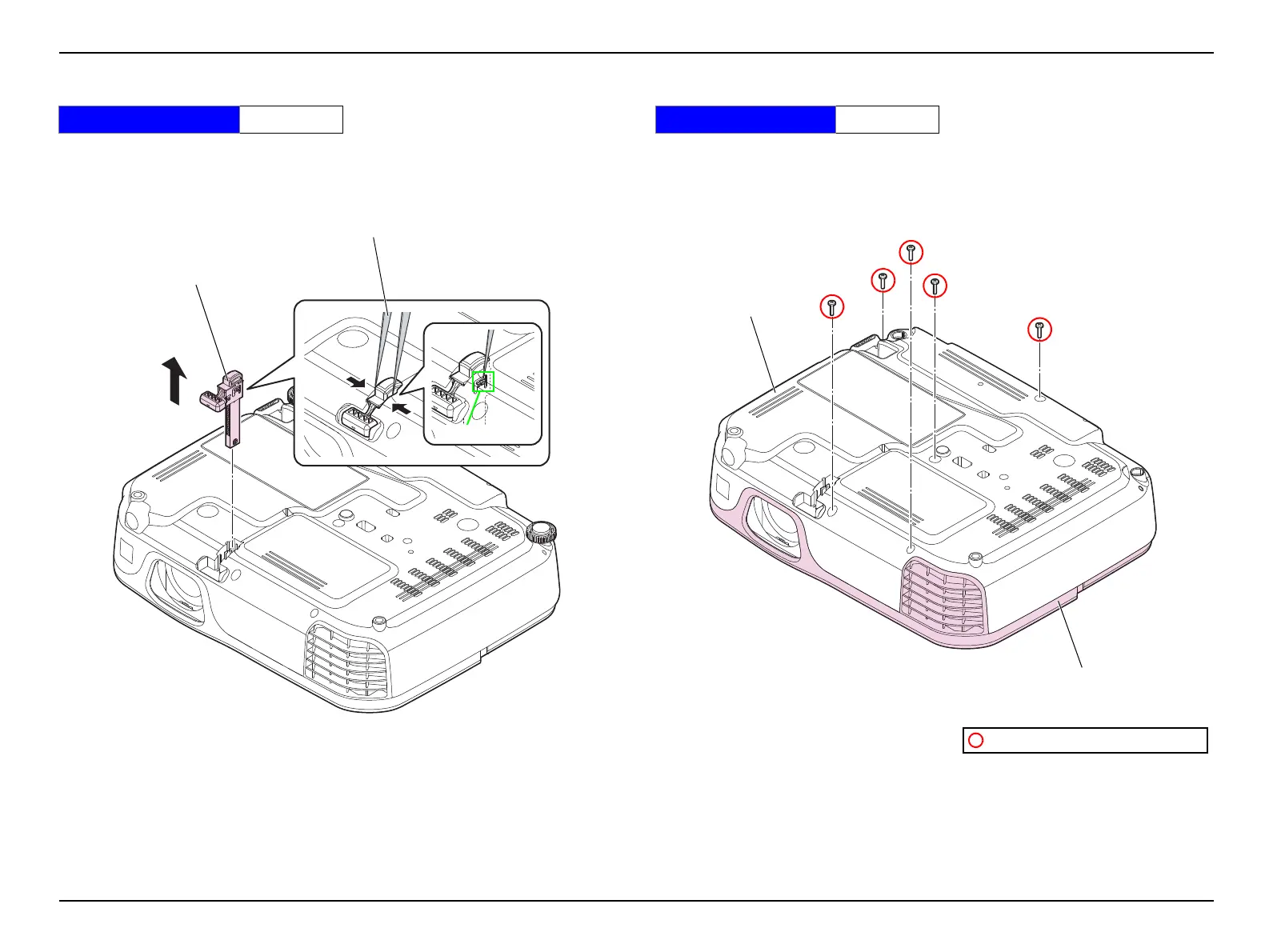

Figure 3-6.
3.3.5 Upper Case (assembly)
1. Remove the Air Filter. (p.59)
2. Remove the Lamp. (p.60)
3. Remove the five screws on the bottom of the projector.
Figure 3-7.
Standard Operation Time 1 Min.
Hook
Front Foot
Tweezers
Standard Operation Time 4 Min.
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
Lower Case
Upper Case
(assembly)
