3.3.6.1 IF Case
1. Remove the Air Filter. (p.59)
2. Remove the Lamp. (p.60)
3. Remove the Upper Case (assembly). (p.62)
4. Remove the MA Board (assembly). (p.74)
5. Remove the two screws and remove the IF Case.
6. Remove the RC Filter from the IF Case.
7. Remove the two screws and remove the MA Shield Plate.
8. Remove the MA Insulation Sheet from the MA Board (assembly).

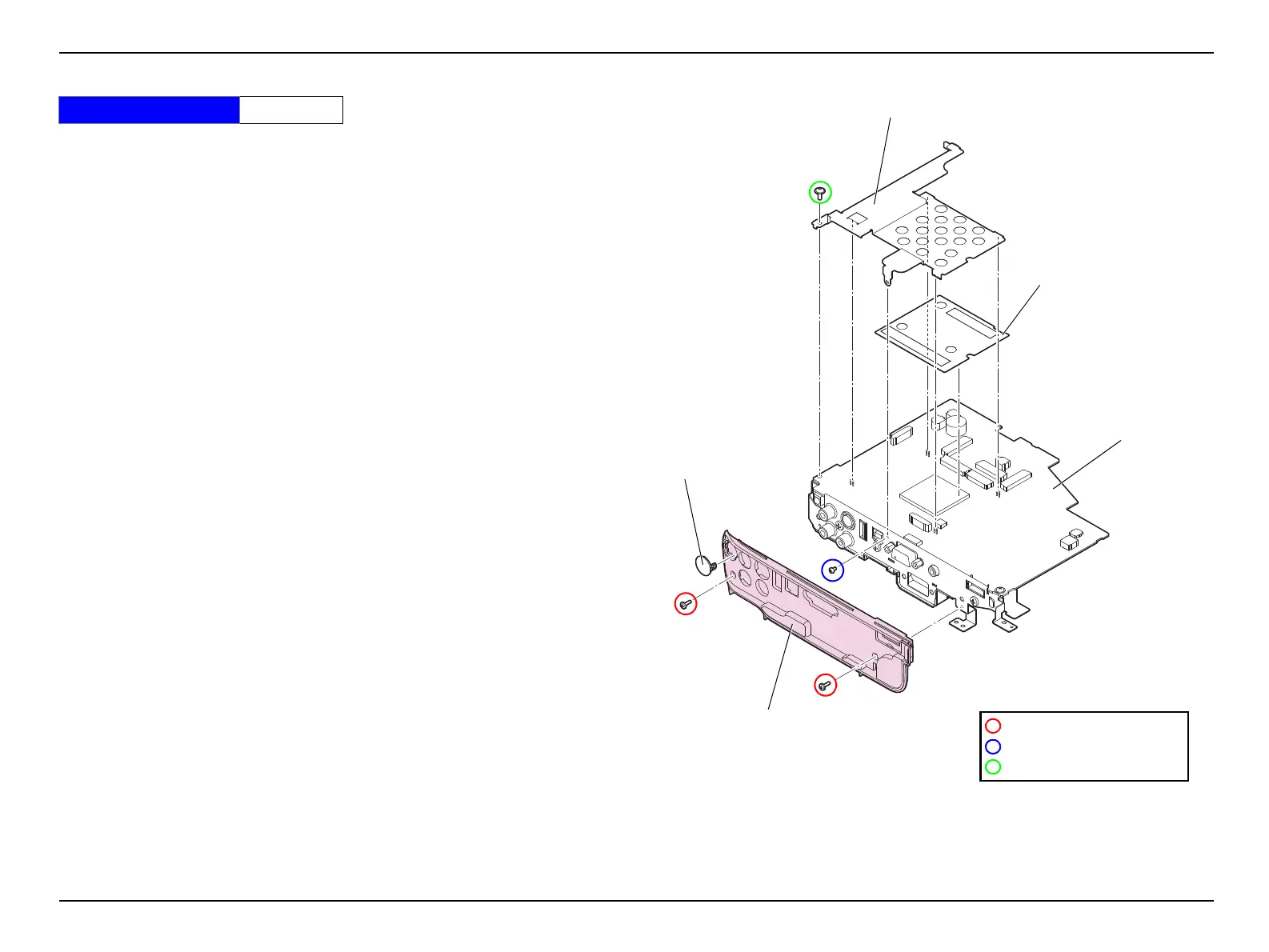

Figure 3-20.
Standard Operation Time 8 Min.
C.BSCREW,2X6,F/NI
C.P.SCREW,2X4,F/ZN-3C
C.C.SCREW,2.5X6,F/ZN-3C
IF Case
MA Shield Plate
MA Insulation Sheet
MA Board (assembly)
RC Filter
