Epson EB-X14G Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 94 Revision C
3.3.11.2 PS Filter
1. Remove the Air Filter. (p.59)
2. Remove the Lamp. (p.60)
3. Remove the Upper Case (assembly). (p.62)
4. Remove the MA Board (assembly). (p.74)
5. Remove the Optical Engine. (p.82)
6. Remove the Lamp Fan. (p.86)
7. Remove the EX Duct (assembly). (p.87)
8. Remove the BA Power Supply (assembly). (p.89)
9. Remove the BA Unit / SCI Cable. (p.93)
10. Remove the two screws ( ) and remove the BA Shield Plate.
11. Remove the two screws ( ) ( ) and remove the PS Shield Plate and the PS Insulation
Sheet.
12. Remove the PS Radiation Sheet from the PS Filter.

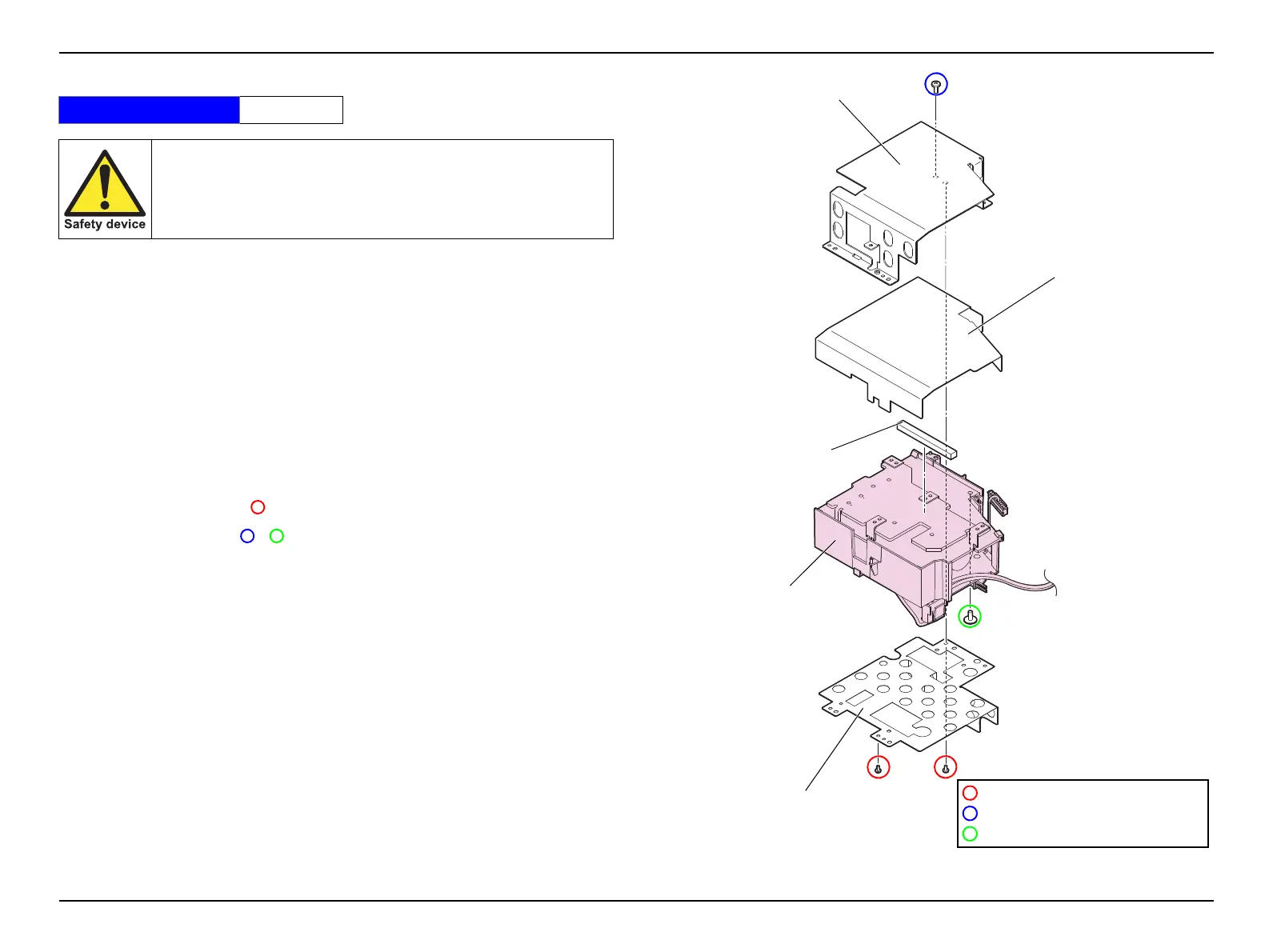

Figure 3-33.
Standard Operation Time 18 Min.
This part is designated as the Safety Device.When removing/
replacing the part for repair, be sure to refer to “3.4 Safety Check
after Servicing (p.103)”. According to the instructions in it,
handle the part and perform the procedure after servicing.
BA Shield Plate
PS Shield Plate
PS Insulation Sheet
C.P.SCREW,2X4,F/ZN-3C
C.B.P-TITE SCREW,2.5X6,F/ZN-3C
C.C.SCREW,3X6,F/ZN-3C
PS Filter
PS Radiation Sheet
