Epson EF-100 Series User Manual

33

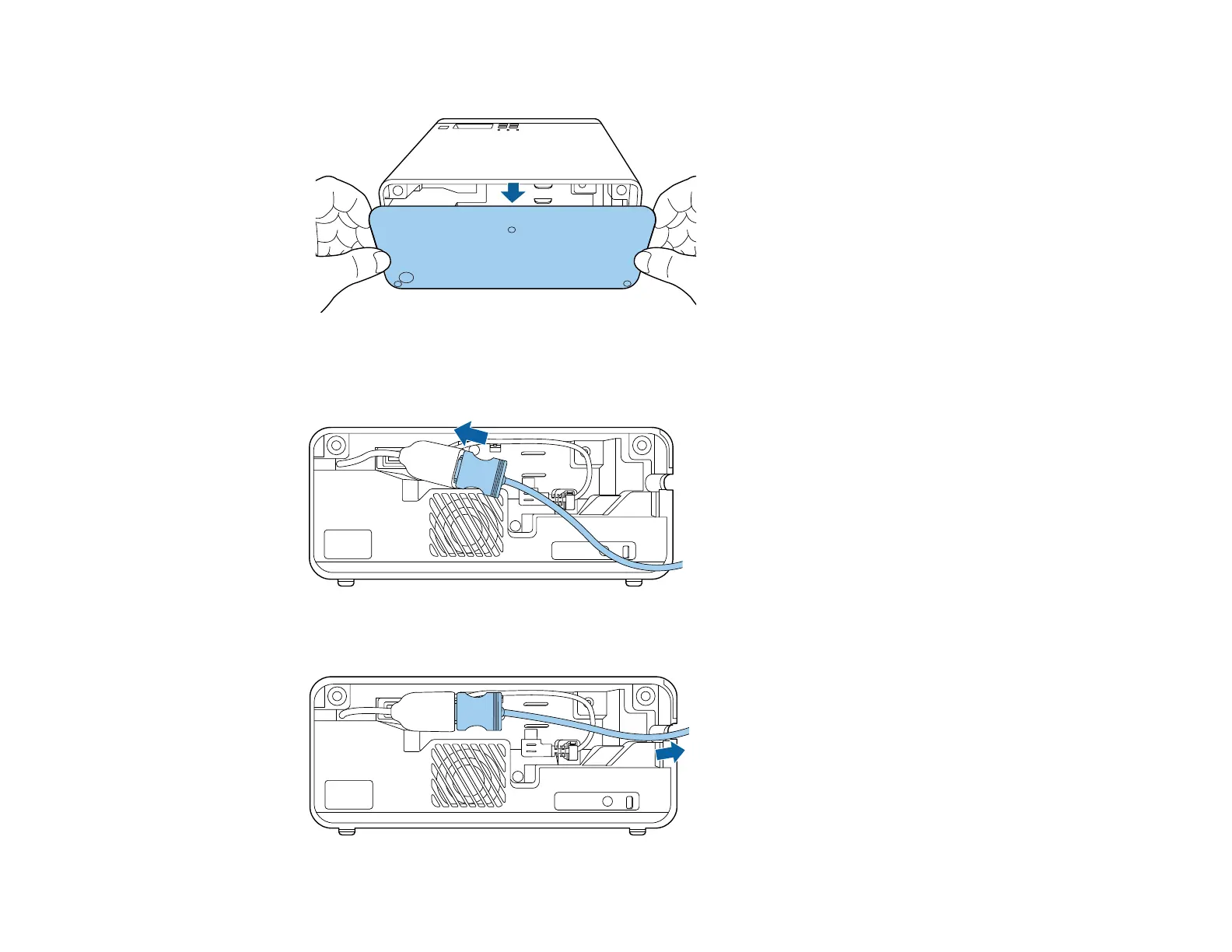

1. Remove the rear cover from the projector.
2. Connect one end of an HDMI cable to your video source's HDMI port.
3. Connect the other end of the HDMI cable to the projector's HDMI extension cable.
4. Pass the HDMI cable through the cable path as shown.

Epson EF-100 Series Specifications

General

Projection Technology	3LCD
Light Source	Laser
Contrast Ratio	2, 500, 000:1
Weight	2.7 kg
Color Reproduction	Up to 1.07 billion colors
Resolution	WXGA (1280 x 800)
Brightness	2000 lumens
Throw Ratio	1.04 - 1.40
Screen Size	30 inches - 150 inches
Connectivity	HDMI, USB
Lamp Life	20, 000 hours
Built-in Speaker	5W Mono
Operating System	No
Speaker	5W Mono
Noise Level	26 dB
Wireless Connectivity	Bluetooth
Keystone Correction	Vertical: ±45°, Horizontal: ±40°
