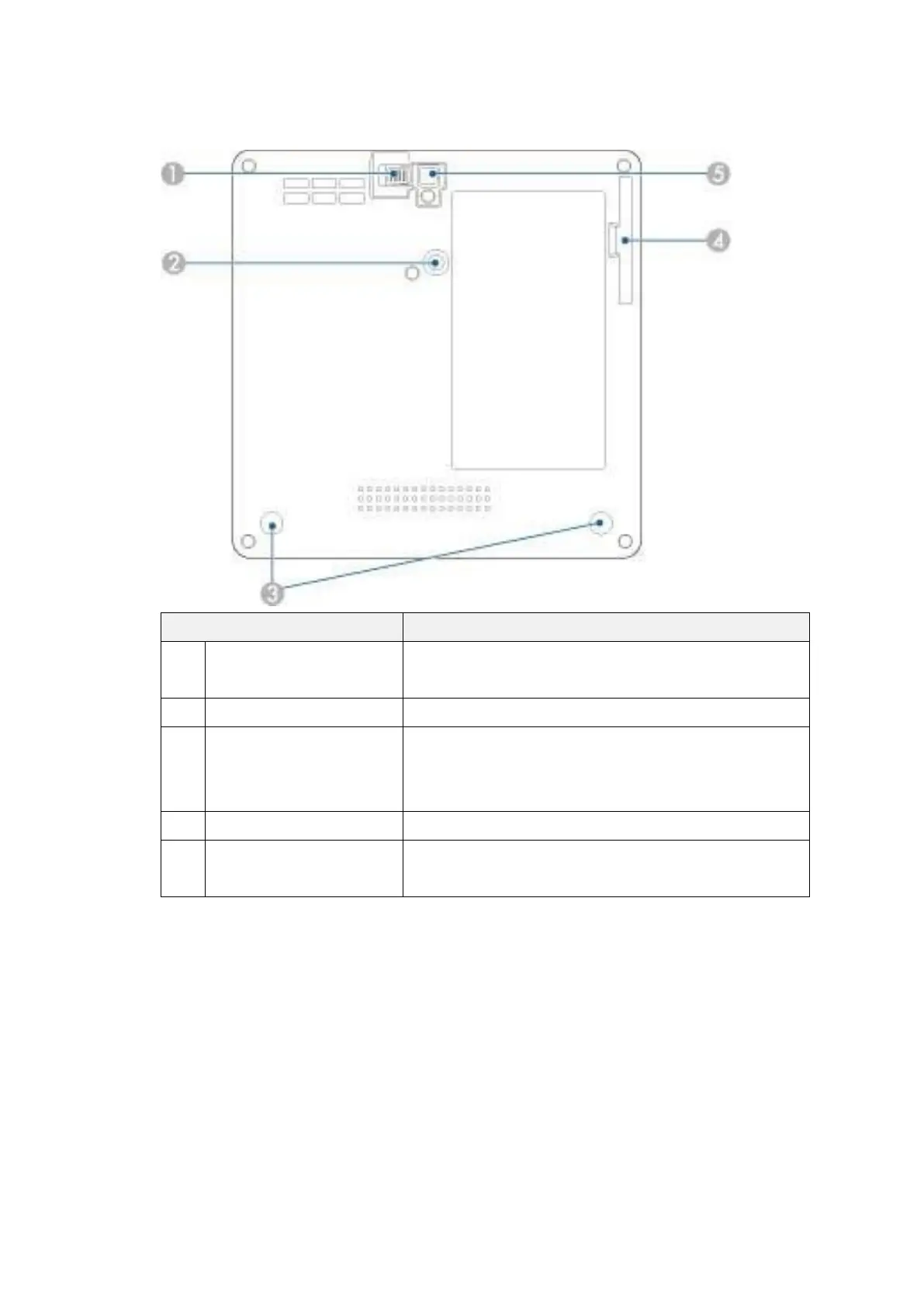

1.3 Projector Parts – Base
Name
Functions
①
Foot release lever
Press the foot release lever to extend and retract the
front adjustable foot.
②
Mount plate fixing point
Attach the optional or supplied mount plate here.
③
Rear feet (Mount plate
fixing points)
Loosen these feet by turning them counterclockwise,
and then remove them to attach the optional or
supplied mount plate.
④
Air filter cover
Open to access the air filter.
⑤
Front adjustable foot
When setup on a surface such as a desk, extend the
foot to adjust the position of the image.
