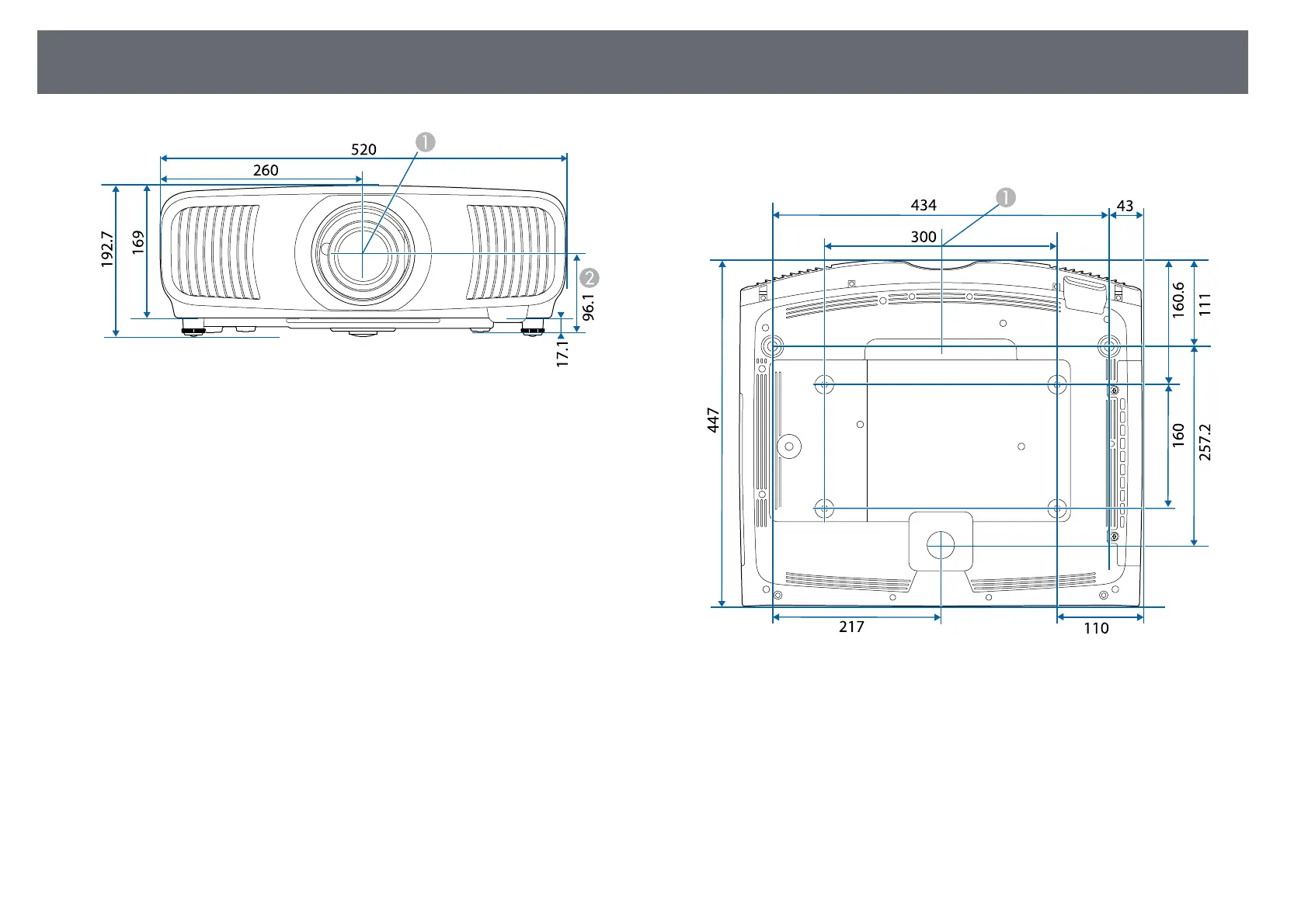

External Dimensions

126

Center of lens (when the lens is positioned in the center)

Distance from center of lens to suspension bracket fixing point

The unit in these illustrations is mm.
