Epson EMP-X5 Service Manual

2-2
EMP-822/EMP-83/EMP-X5/EMP-S5
SEIKO EPSON Revision:A

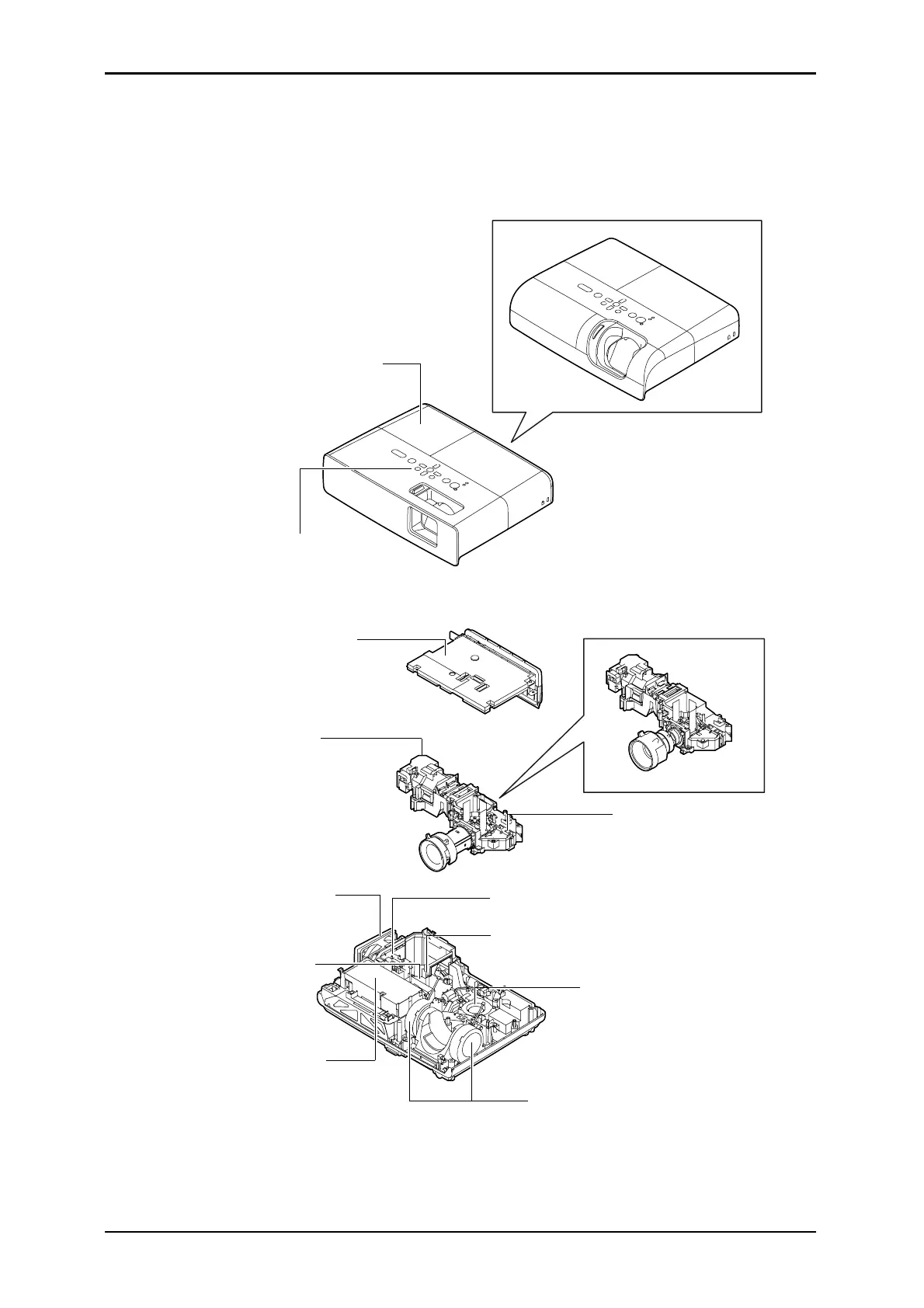

2.1 Internal Components
The main components that make up the projector are shown in the figure below.
Figure 2-1.
Control Panel
(Switch Board)
Lamp Fan
Lamp Unit
Optical Engine
PS Ballast
Assy.
Exhaust Fan
TH Board
(Lamp Thermistor)
Safety Switch
Upper Case
Intake Fans
PS Fan
MA Board Assy.
EMP-X5/EMP-S5
EMP-S5

Epson EMP-X5 Specifications

General

Resolution	1024 x 768 (XGA)
Contrast Ratio	400:1
Lamp Life	3000 hours (Normal Mode), 4000 hours (Eco Mode)
Display Technology	3LCD
Zoom Ratio	1.2x
Projection Size	30 - 300 inches
Brightness	2200 lumens
Weight	2.7 kg
Inputs	Composite video, S-Video
Noise Level	35 dB (standard), 28 dB (economy)
