Epson LQ-510 - Printhead Drive Circuit

PRINCIPLES OF OPERATION
REV.-A
2.3.6.5 Printhead Drive Circuit
The drive pulse width is adjusted using CPU port PC6. The Vx voltage is used to pull up the output signals
from the gate array in order to prevent printhead malfunctions.
+5v
CPU
PC6

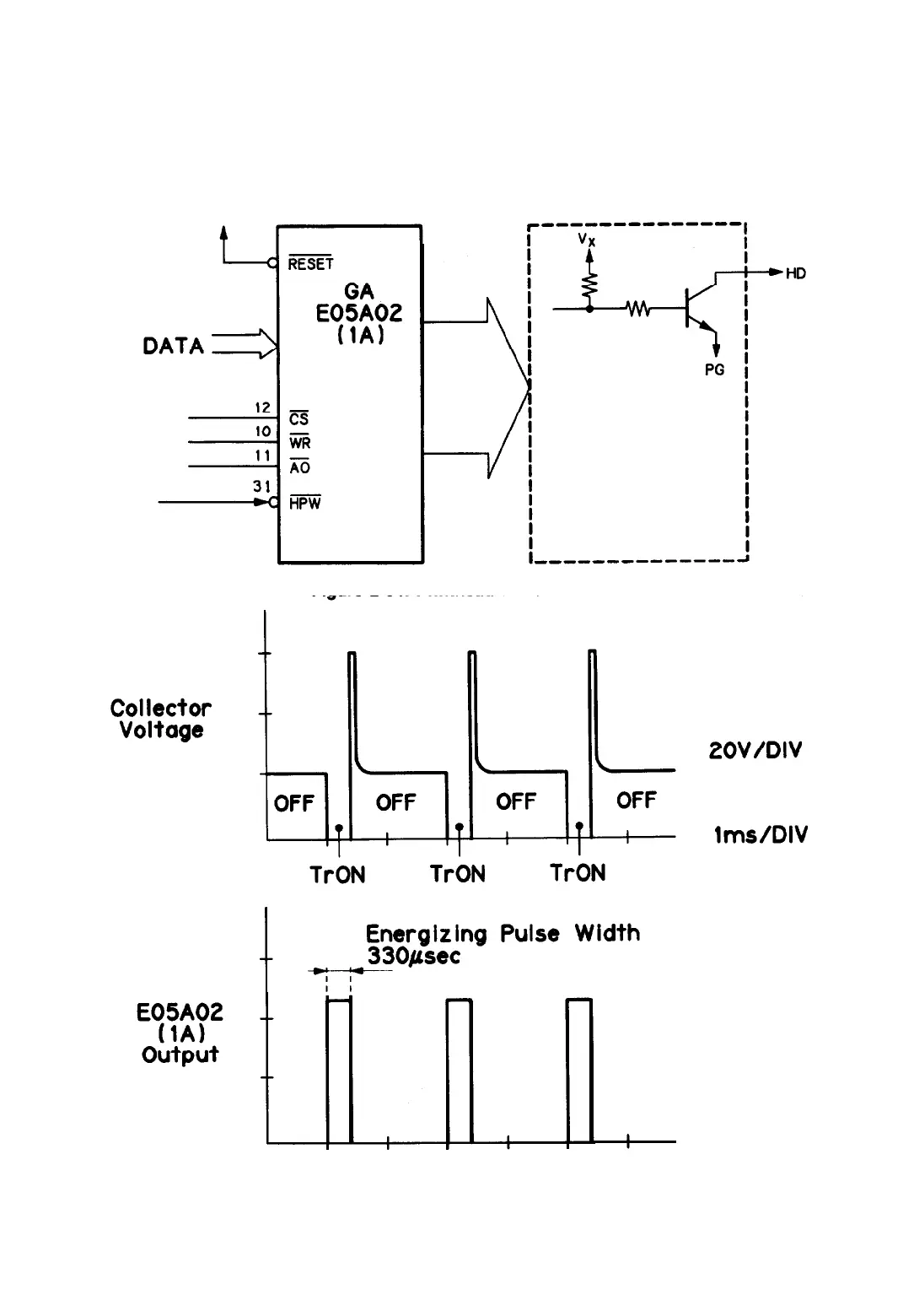

Figure 2-64. Printhead Drive Circuit
2V/DIV
Figure 2-65. Printhead Driving Waveforms
2-58
LQ-510
