1.2 SPECIFICATIONS
GENERAL DESCRIPTION
This section describes the specifications for the LQ-510 printer.
1.2.1 HARDWARE SPECIFICATIONS
Printing Method
Serial, impact, dot matrix
Pin Configuration
24 wires (12 x 2, staggered, 0.2 mm diameter)
Wires
(Column 1) Wires (Column 2)
II
II
II
II
I .
I
I
-
-----
_I
l+j-
lf90"
I
'
i
-----
8i
/
i
I
I .
.t;
------ --
+
i
11190"
-------
_-
I
1190"
I
+----A-

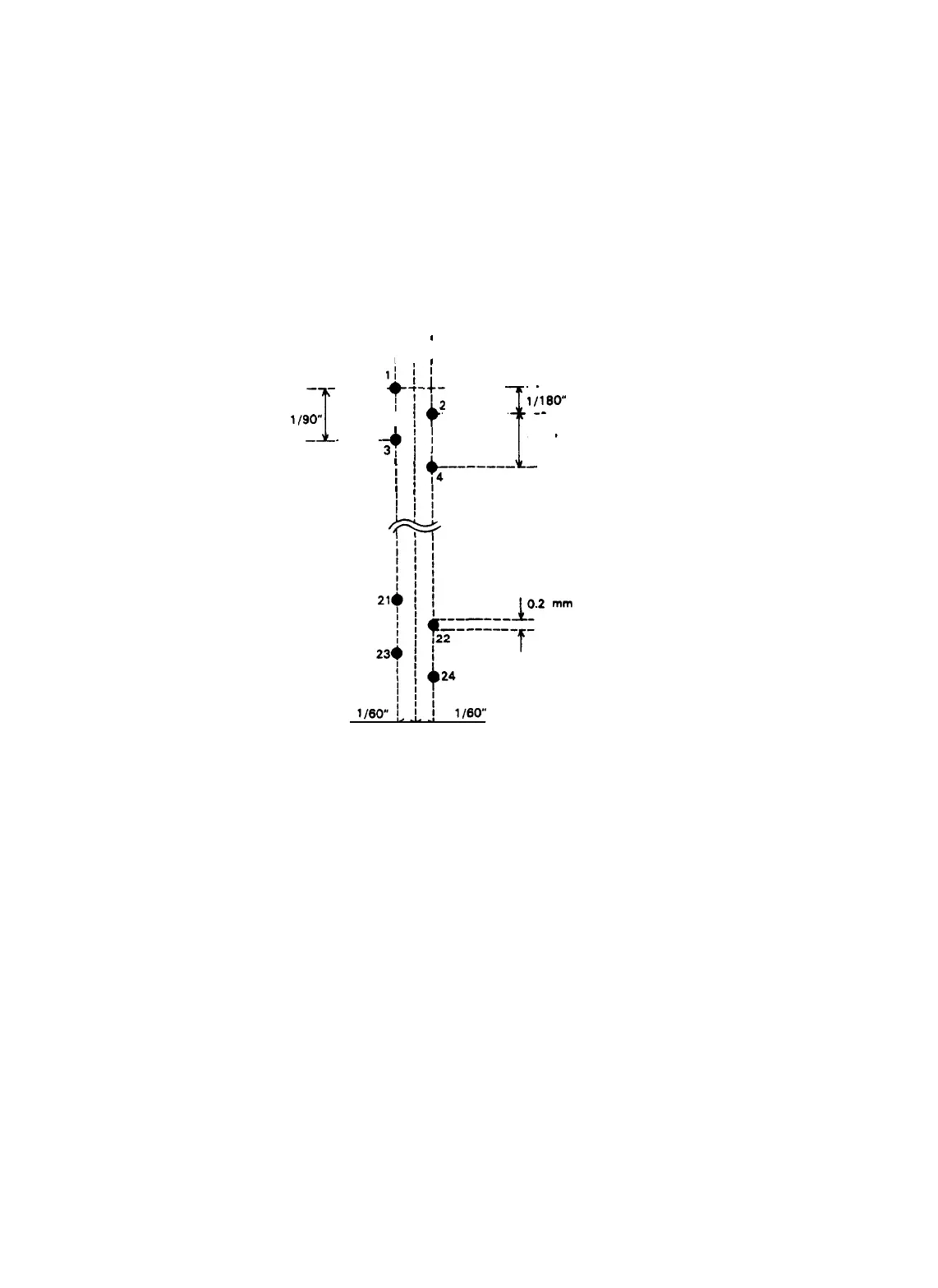

Figure 1-2. Pin Configuration
Feeding Method
Friction feed, tractor feed (push tractor: standard; pull tractor: optional)
NOTE:
Be aware of the following points regarding paper handling.
Friction Feed:
1.
Do not use continuous paper.
2.
Do not use a single sheet shorter than 7.28 inches (182 mm) or longer than 10.28 inches (257 mm).
3.
Do not perform a reverse paper feed when the paper is within .34 inch (8.5 mm) from the top or within
.88 inch (22 mm) from the bottom.
4.
Do not perform a reverse feed greater than 1/6 inch after the paper end has been detected.
5. Use the pull-out unit.
6. Do not use multi-part single-sheet forms.
Tractor Feed
1. Release the friction-feed mechanism.
2.
Multiple copies must be joined by pasting at the perforation or tractor holes.
3.
Paper for copies must be carbonless, multi-part paper.
LQ-510
1-3
