4.2.3.2 SANPS(E) Board Removal
1. Remove the upper case (refer to Section 4.2.2.1).
2. Disconnect connector CN1 from the SANPS(E) board. This connector connects the board to the power
switch.
3. Disconnect connector CN2 from the SANPS(E) board. This connector connects the board to the SAMA
board.
4. Remove the CBS(c) (M3 x 8) screws securing the SANPS(E) board, and then remove the board.
I
SANPS(E) Board
CN1
CBS(c)

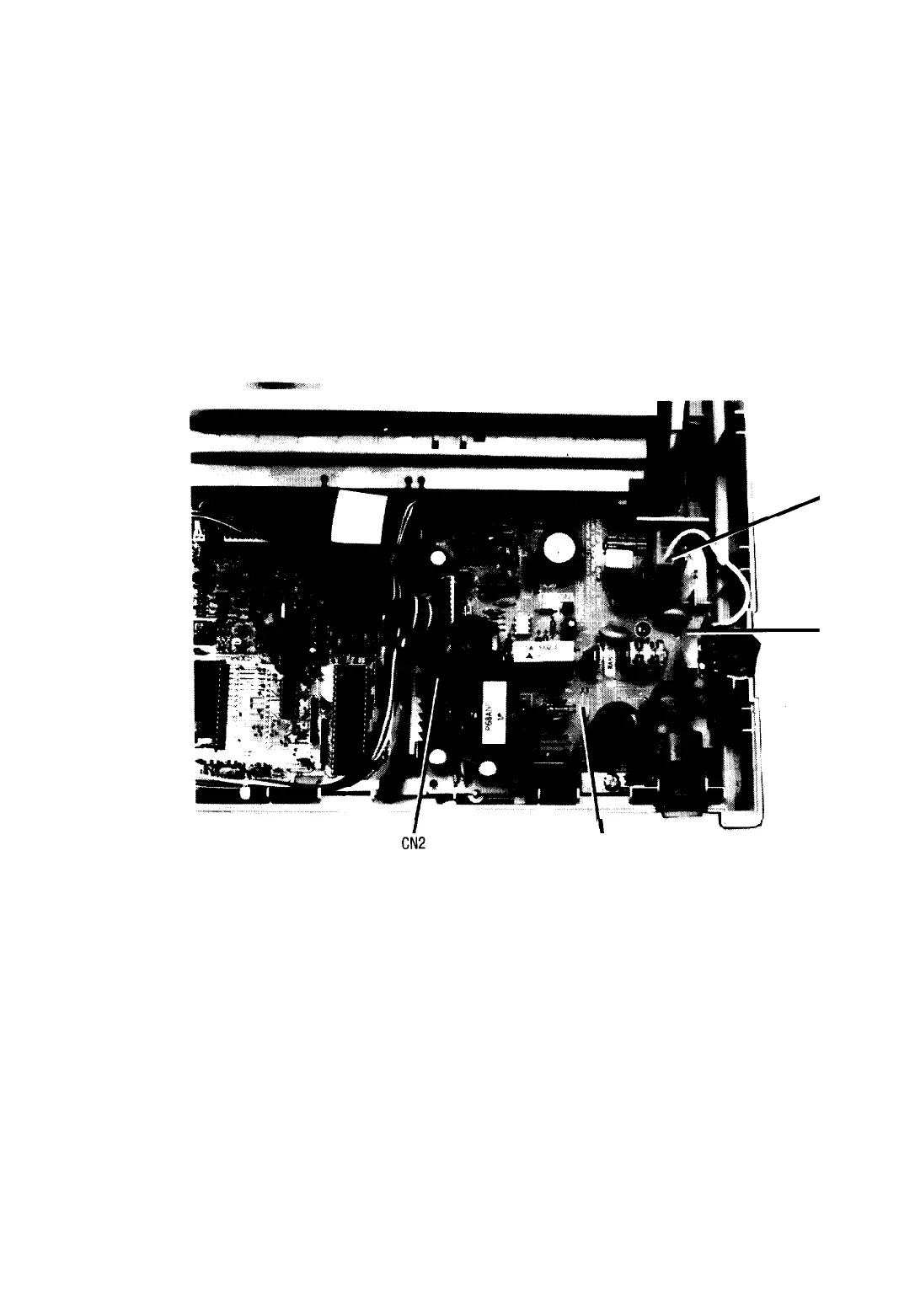

Figure 4-10. SANPS(E) Board Removal
