Epson LQ-510 - Figure 1-4. Printable Area for Cut Sheets; Table

GENERAL DESCRIPTION
REV.-A
Printable Area
The figure below illustrates the printable area for cut sheets.
7.2-10.1 ” (182-257mm)
I
*
*
I-
Printable area
t
.33” (8.5 mm)
or more
-
14.3” (364 mm), 7
maximum
e
a
r
e
a
-
.53” (13.5 m
or more
/
/
ABC
›r
XYZ
I
,
L
ABC
XYZ
1

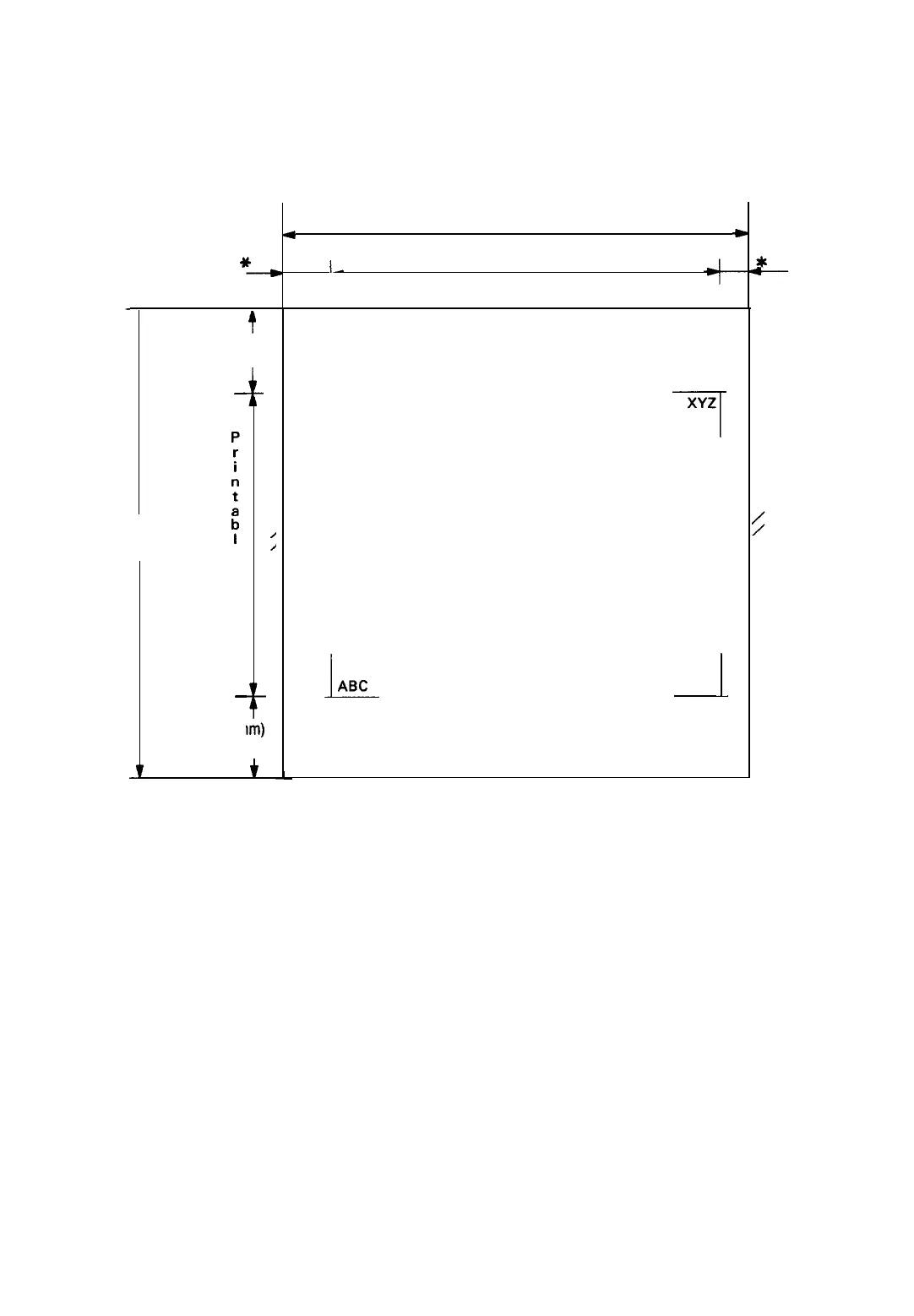

Figure 1-4. Printable Area for Cut Sheets
* At least 0.12 inch (3 mm) when paper width is less than 9 inches (229 mm); at least .9 inch (24 mm) when
the paper width is 10.1 inches (257 mm).
Printing is possible approximately 1.12 inches (28 mm) from the paper’s detected bottom edge; the .53 inch
(13.5 mm) value (lowest print position) is for reference only. Paper feed accuracy cannot be assured within
0.87 inch (22 mm) of either the top or bottom edge.
