REV.-A
GENERAL DESCRIPTION
1.9 MAIN COMPONENTS
To facilitate maintenance and repair, the main components of the LQ-510 printer are designed so that they
can be removed and replaced easily.
The main components are:
1) SAMA board:
The main control board. The CPU, which is contained on
this board, controls all the main functions.
2) SANPNL control panel:
The control panel.
3) SANPS board: (120 V Version)
The power supply circuit board.
SANPSE Board (220/240 V Version)
4) M-5710: The printer mechanism.

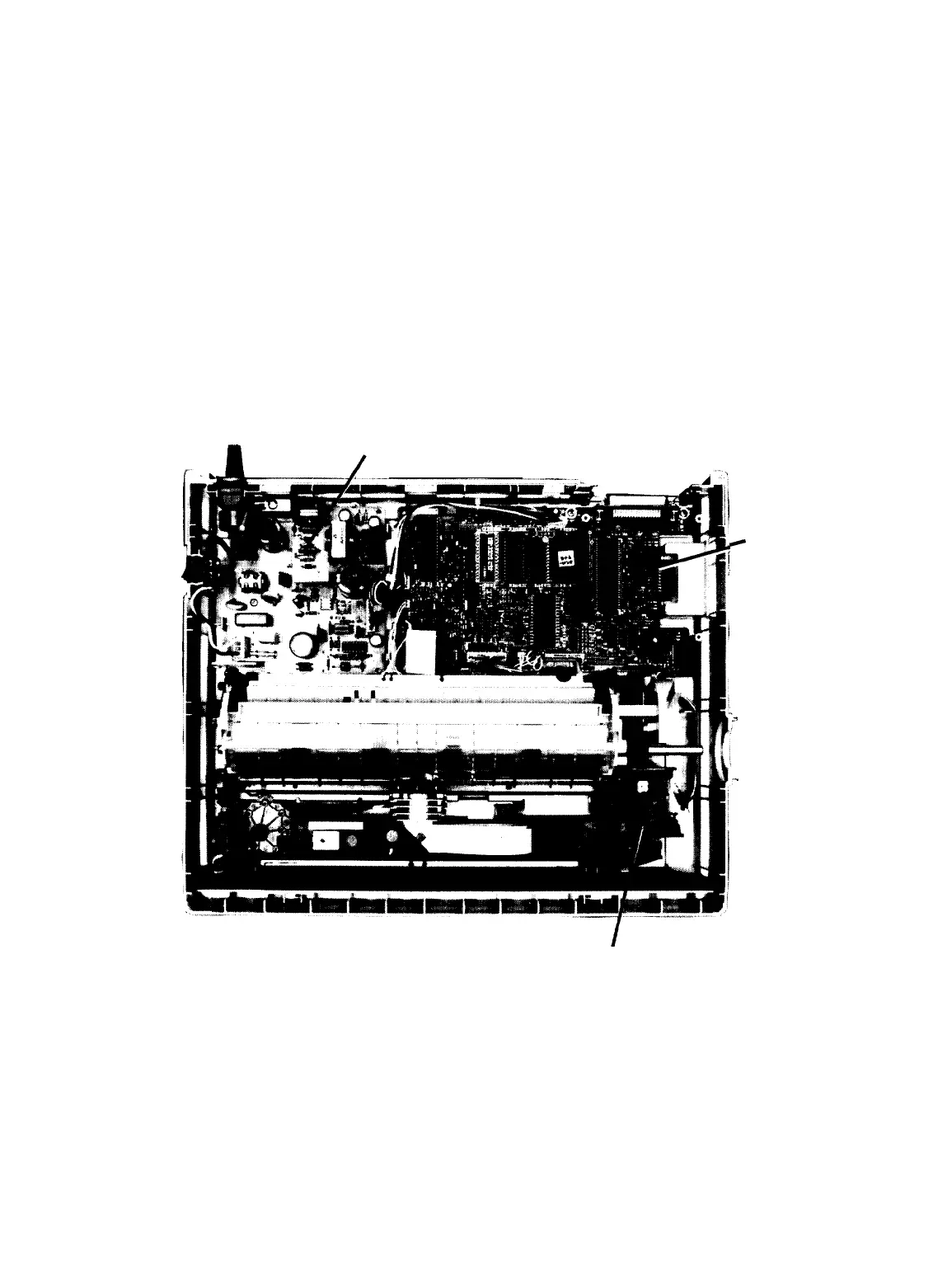

I
SANPS(E) Board
M SAMA Board
M-5710 Printer Mechanism
Figure 1-11. LQ-510 Component Layout
LQ-510 1-25
