PRINCIPLES OF OPERATION 2
2.1 OVERVIEW
This chapter describes the signals at the connectors linking the primary components of the LQ-510. These
components include the printer mechanism, power supply circuits, and control circuits. The chapter also
describes the operation of the printer’s circuitry and printer mechanism.
2.1.1 CONNECTOR SUMMARY

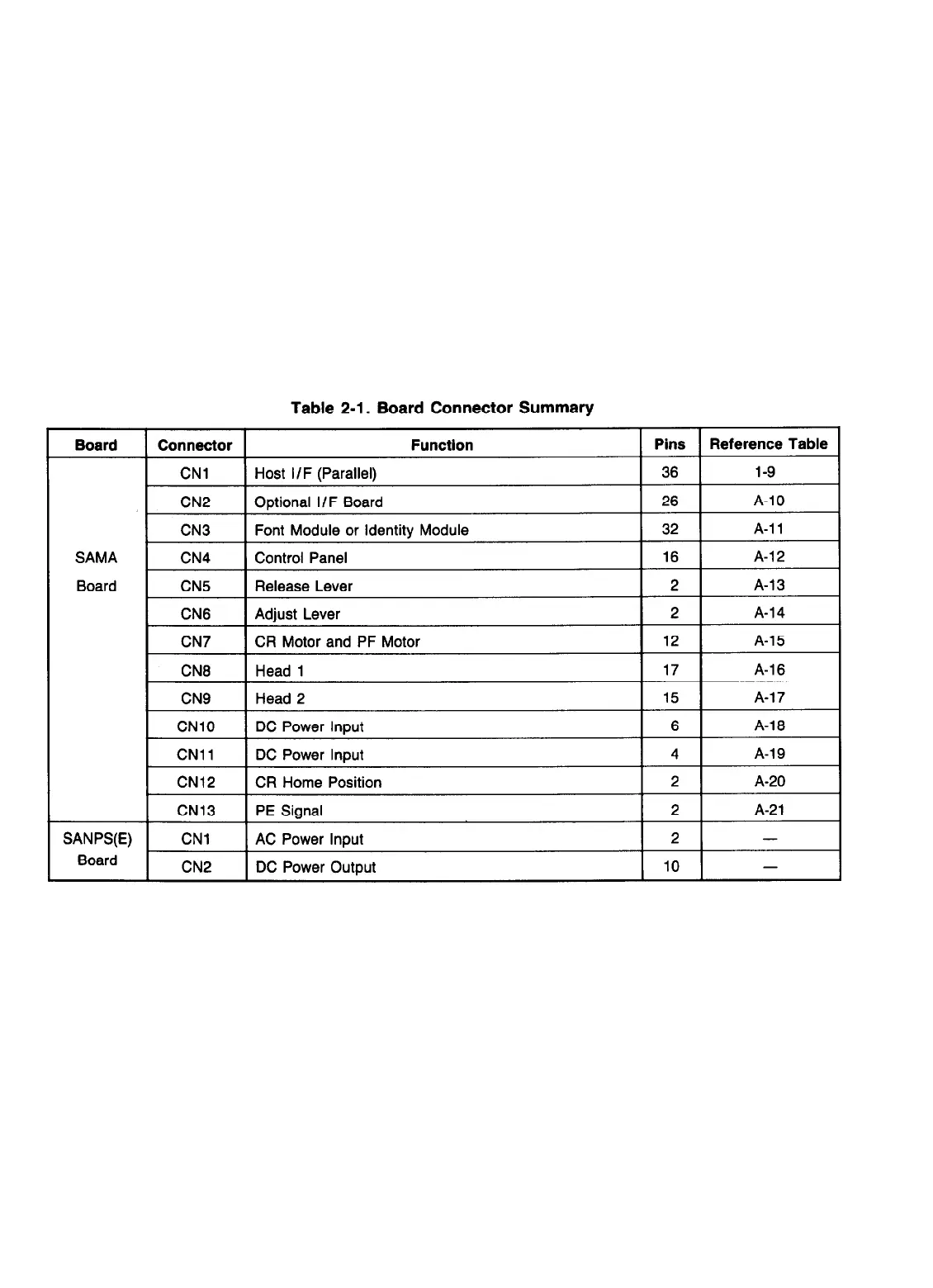

The interconnection of the primary components is illustrated in Figure 2-1. Table 2-1 summarizes the func-
tions, sizes, and types of the connectors shown in the figure.
LQ-510
2-1
