Epson Perfection 4870 Photo - Exploded Diagram

Perfection 4870 Photo Revision A
APPENDIX Exploded diagram 82
7.3 Exploded diagram

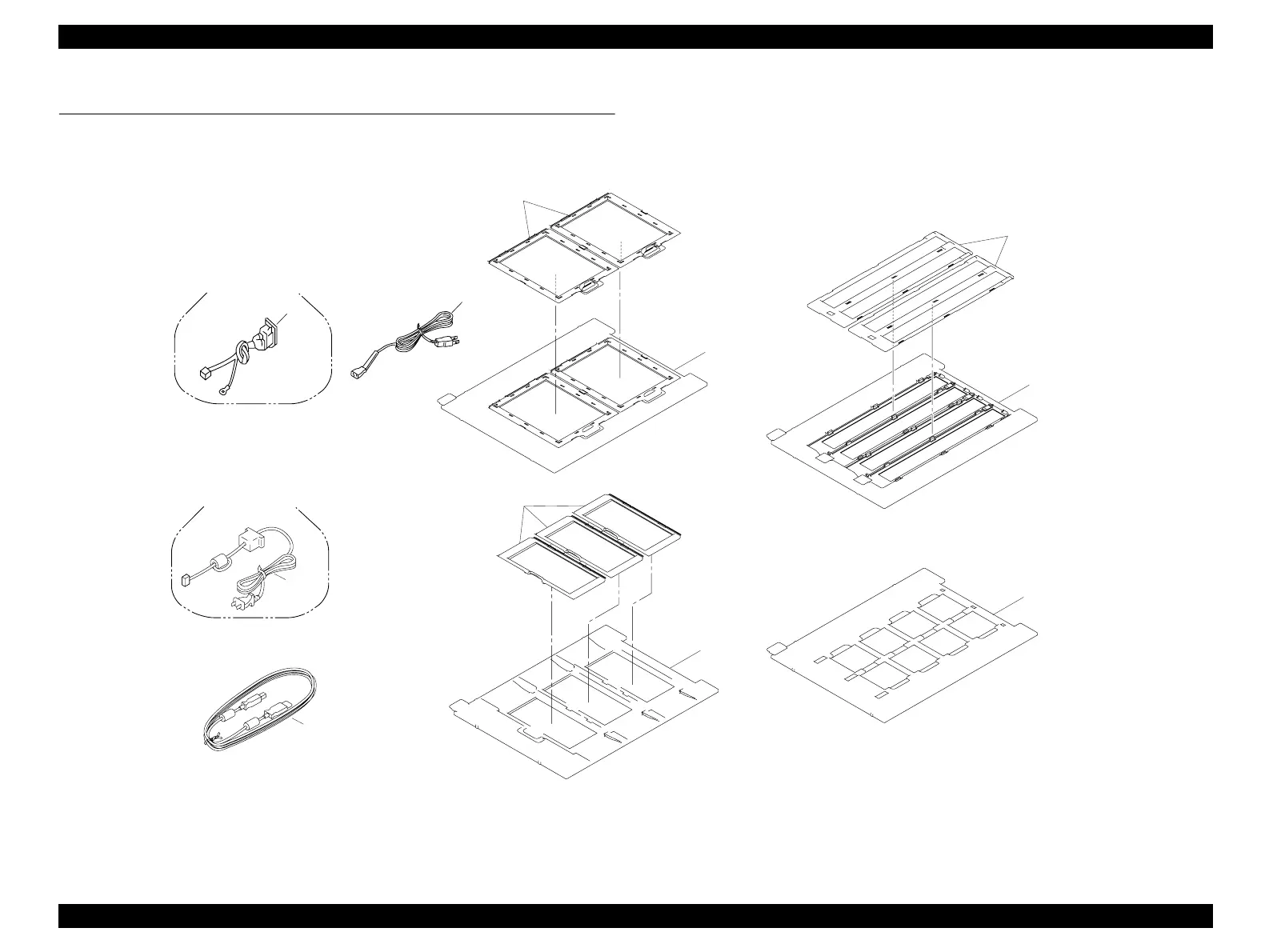

Figure 7-2. Exploded diagram (1)
GT-X700 / PERFECTION 4870 PHOTO / 4870 PRO NO.1
Rev.01 B163-ACCE-011
402
for 220V Harness socket
for 100V models
10
12
410
400
401
14
13
15
11
16
