Stylus Pro 4000 Field Repair Guide 4/28/05
Platen Gap Adjustment Printer Component, Software Item, LCD Display, Printer Button Page 166.

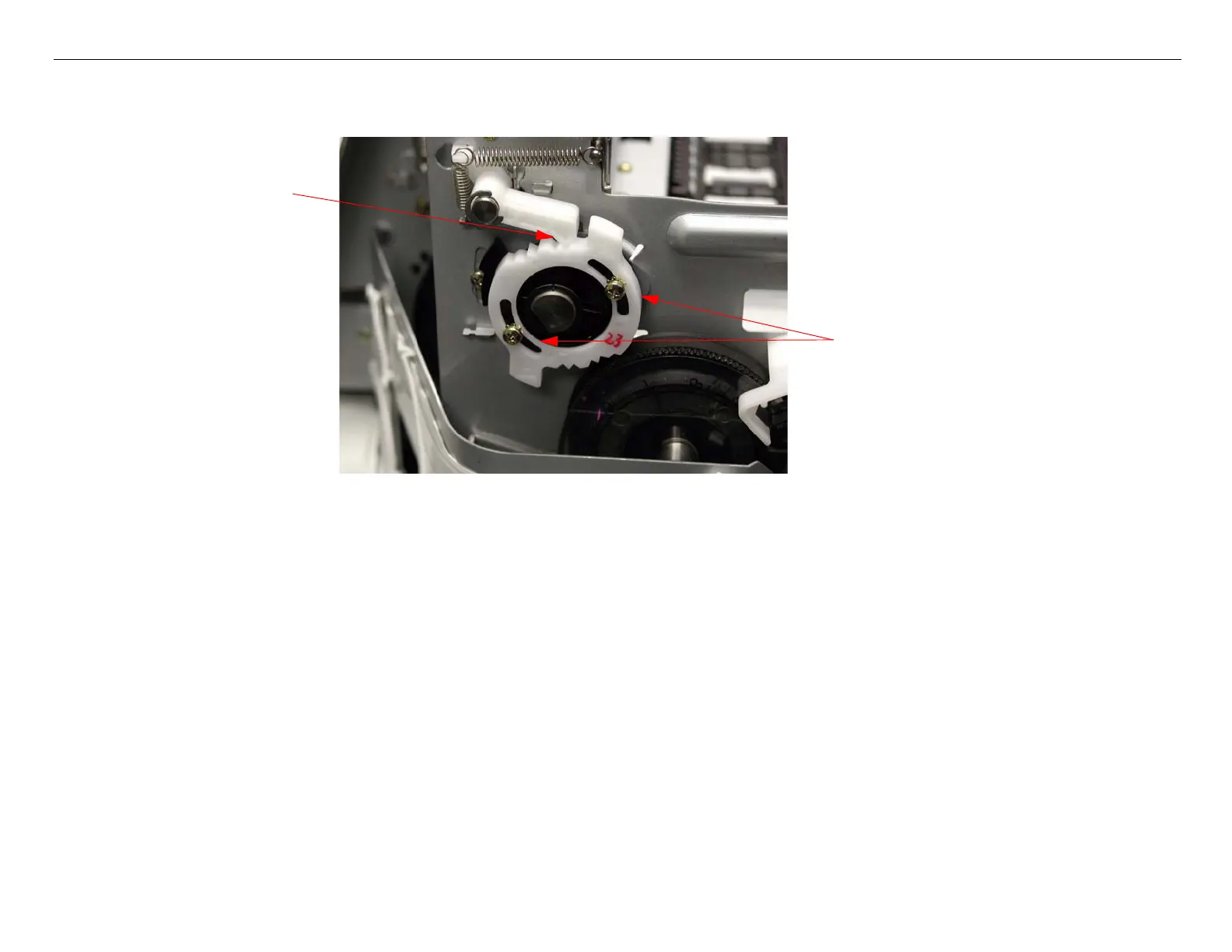

9. Place the Platen Position Detent device in the position shown below, and tighten the 2 Screws.
10. Depress the Menu button to store the value.
10.1 The Printer will display Updating Parameter.
Turn until the Stopper
is resting in the first
Detent (the detent has
an arrow pointing at it).
Tighten the 2 Screws.
