108 | Maintaining and Transporting the Printer

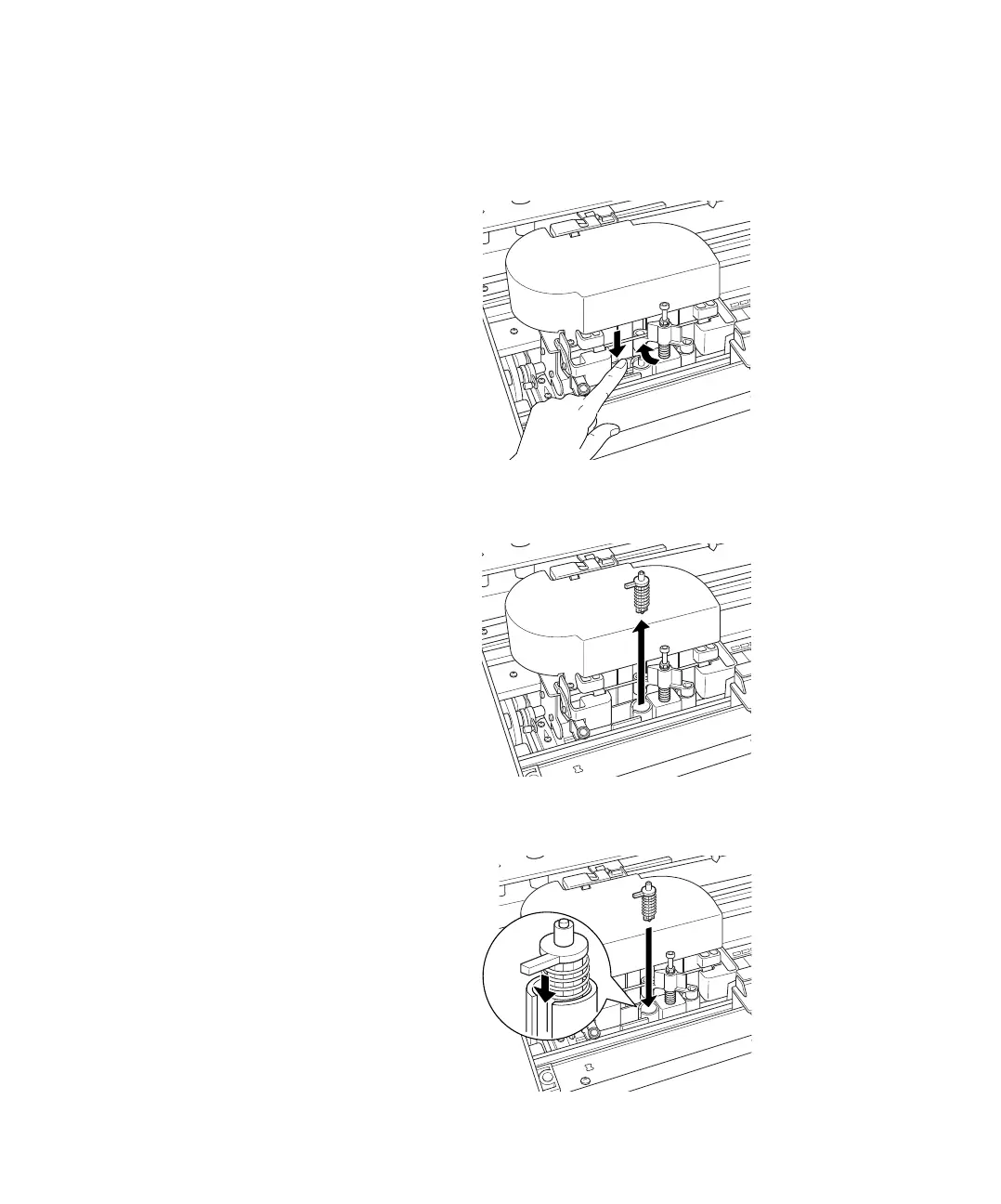

6. When REPLACE CUTTER is displayed on the LCD, hold down the side
pin as shown and turn the latch to the right.
7. Release the side pin and carefully remove the cutter blade.
8. Insert the new cutter as shown.
WARNING: The blade is
sharp. Be careful when
removing it.
