EPSON Stylus Pro 4400/4450/4800/4880/4880C Revision C
Disassembly & Assembly Disassembly Procedures 327

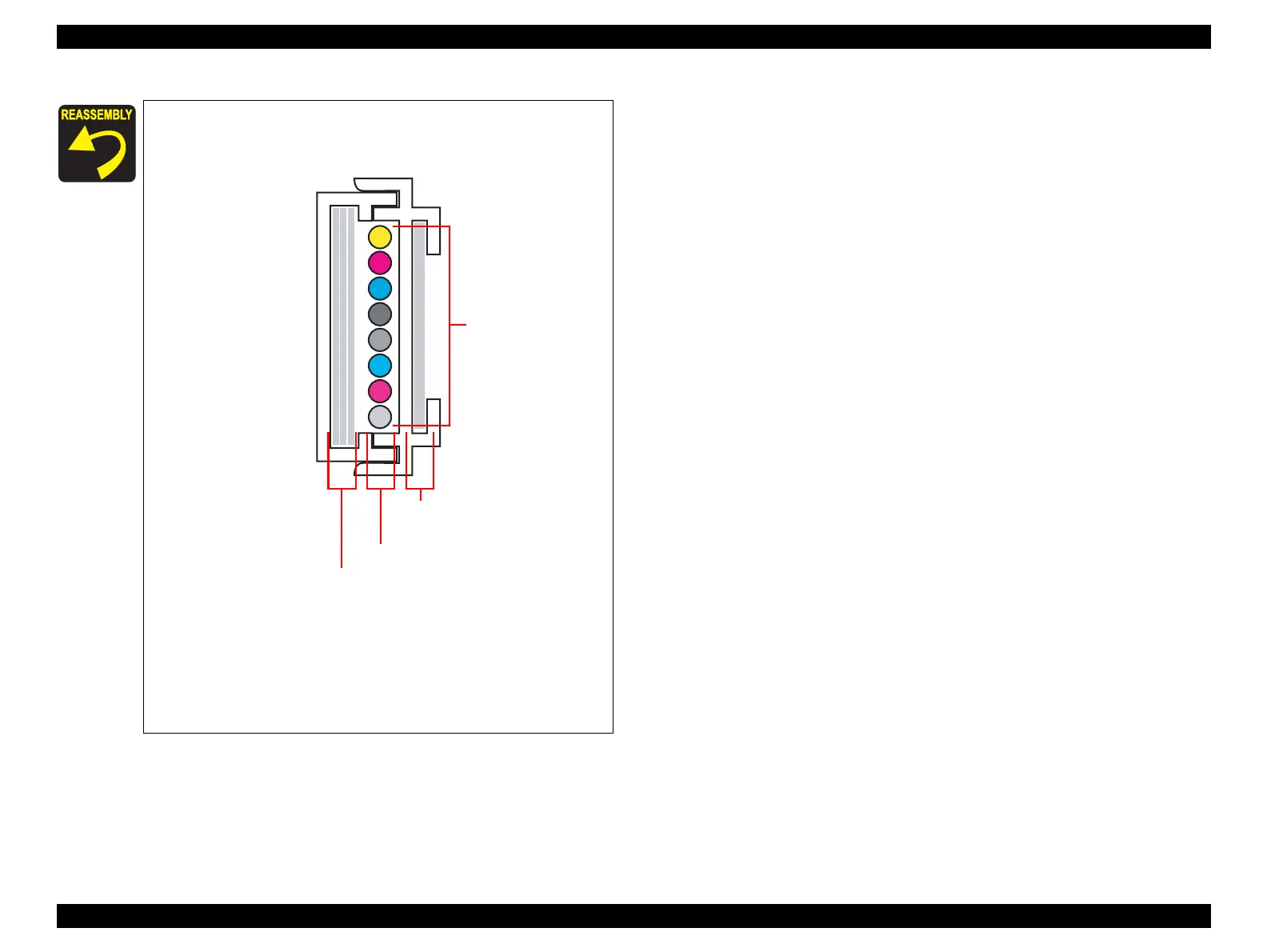

Check the followings after installing the "Holder, FFC".
 Each part should be properly installed in its prescribed
space of the "Holder, FFC".
 Move the "Carriage Unit" with hand to make sure that the
"Harness, Head" does not come off.
 Move the "Holder, FFC; B" from side to side to make
sure it moves smoothly. A reinstallation is needed if the
"Harness, Head" moves together with the "Holder, FFC".
Harness, Head (x2)
Harness, Head, Intermit
Tube, Supply, Ink
Sheet, SUS
Guide Plate, Tube
Sheet, Tube
Y
M
C
MK
K (PK or MK)
LC
LM
LLK
