ERA PRO CYCLONE - TORNADO EBM Specifications

EN
10
Specifications
CYCLONE
EBM
100
CYCLONE
EBM
125
CYCLONE
EBM
160
CYCLONE
EBM
200
CYCLONE
EBM
250
CYCLONE
EBM
315
Power consumption, W 52 52 85 135 210 225
Capacity, m
3
/h 265 370 680 900 1100 1700
Rotation frequency, r.p.m. 2350 2350 2700 2650 2500 2700
Pressure, Pa 310 310 400 540 580 740
Noise level dBA, the distance should be not
more than 3 m
52 51 57 55 53 53
Сurrent type AC , single phase
Frequency, Hz 50
Supply voltage, V 220-240

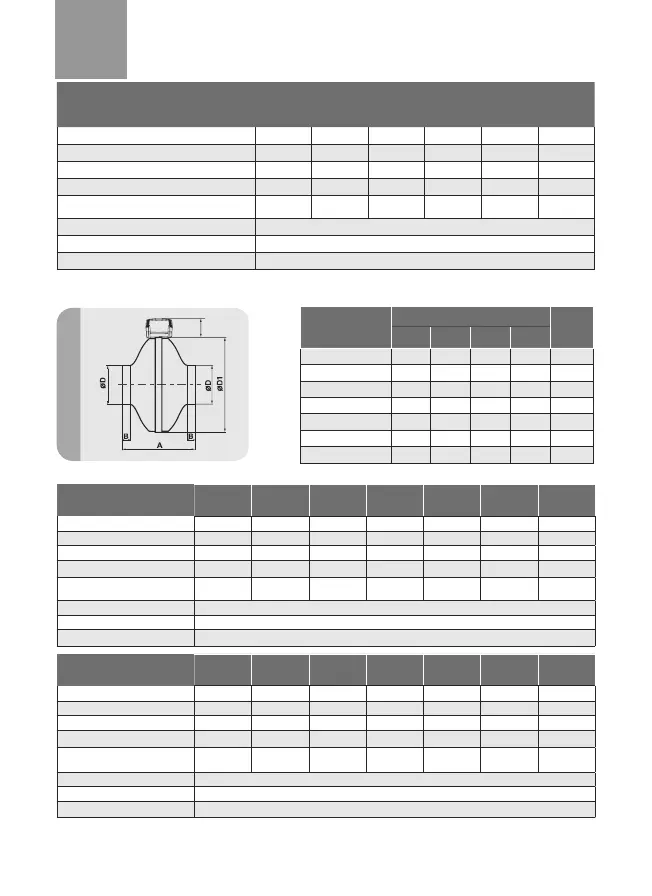

TORNADO fans is issued seven standard sizes depending on the install housing diameter. Fan look, basic dimensions,
connecting sizes and technical characteristics described in pic. 2 and lists of dimensions and characteristics (table 2).
Type
Dimensions, mm
Weight, kg
D D1 А B
TORNADO EBM 100 100 243 200 23 3,0
TORNADO EBM 125 125 243 202 27 2,9
TORNADO EBM 150 150 333 230 23 4,3
TORNADO EBM 160 160 333 235 25 4,1
TORNADO EBM 200 200 333 223 24 4,7
TORNADO EBM 250 250 333 205 27 5,2
TORNADO EBM 315 315 402 245 25 6,8
Table 2.
Specifications
TORNADO
EBM
100
TORNADO
EBM
125
TORNADO
EBM
150
TORNADO
EBM
160
TORNADO
EBM
200
TORNADO
EBM
250
TORNADO
EBM
315
Power consumption, W
44 46 89 98 134 176 256
Capacity, m
3
/h 250 350 560 700 940 1060 1700
Rotation frequency, r.p.m. 357 327 400 450 511 615 735
Pressure, Pa 2565 2488 2602 2537 2621 2603 2645
Noise level dBA, the distance
should be not more than 3 m
50 50 58 59 64 57 66
Сurrent type AC , single phase
Frequency, Hz 50
Supply voltage, V 220-240
Specifications
TORNADO
EBM
100
TORNADO
EBM
125
TORNADO
EBM
150
TORNADO
EBM
160
TORNADO
EBM
200
TORNADO
EBM
250
TORNADO
EBM
315
Power consumption, W
53 56 121 129 186 221 365
Capacity, m
3
/h 270 370 580 755 1040 1153 1830
Rotation frequency, r.p.m. 495 440 533 594 690 842 1050
Pressure, Pa 2905 2769 2810 2713 2863 2929 2836
Noise level dBA, the distance
should be not more than 3 m
53 53 61 61 67 59 68
Сurrent type AC , single phase
Frequency, Hz 60
Supply voltage, V 220-240
65
Picture 2
Specifications
TORNADO
EBM EC
100
TORNADO
EBM EC
125
TORNADO
EBM EC
150
TORNADO
EBM EC
160
TORNADO
EBM EC
200
TORNADO
EBM EC
250
TORNADO
EBM EC
315
Power consumption, W
68 75 72 75 90 156 156
Capacity, m
3
/h
420 445 485 510 870 1065 1445
Rotation frequency, r.p.m.
710 650 423 400 465 535 475
Pressure, Pa
3579 3455 2728 2689 2502 2641 1986
Noise level dBA, the distance
should be not more than 3 m
59 61 59 60 69 57 55
Сurrent type
AC , single phase
Frequency, Hz 50
Supply voltage, V 220-240
EBM EC - Electronically Commutated Motor
MARS fans is issued seven standard sizes depending on the install housing diameter. Fan look, basic dimensions,
connecting sizes and technical characteristics described in pic. 3 and lists of dimensions and characteristics (table 3).
Picture 3
