ATTENTION!

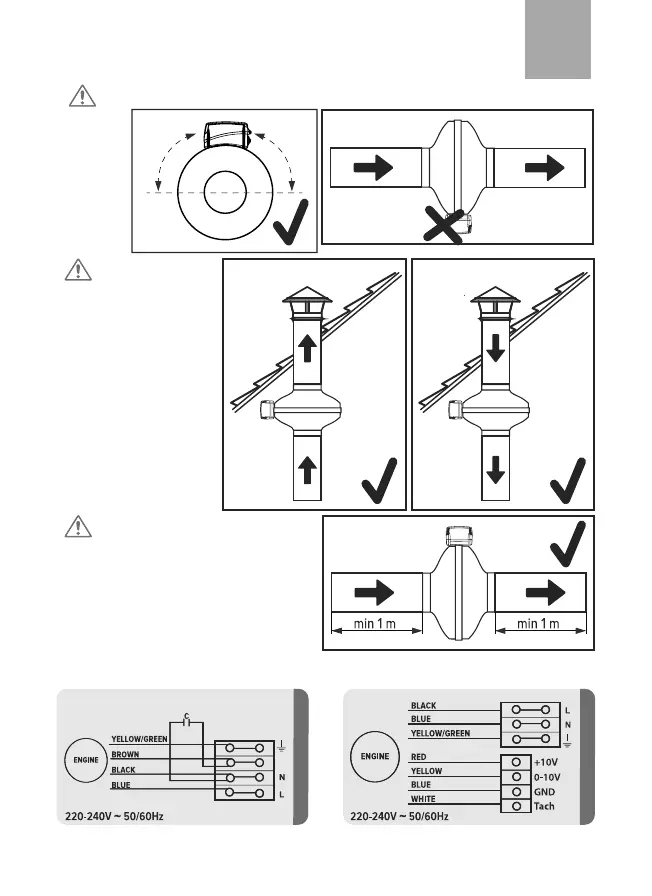

Fans of the MARS / TORNADO series must be installed with the terminal block upwards ± 90 degrees.
ATTENTION!
For vertical installation
of fans of the MARS/
TORNADO series, a hood
must be installed on
the side of the suction
(discharge) pipe.
ATTENTION!
For horizontal installation of fans of the MARS/
TORNADO series in conditions of maximum
permissible humidity, an air duct with a length of at
least 1 meter must be installed on the side of the
suction pipe
Wiring diagram
CYCLONE EBM / TORNADO EBM / MARS GDF
Wiring diagram
TORNADO EC
4
5
4
