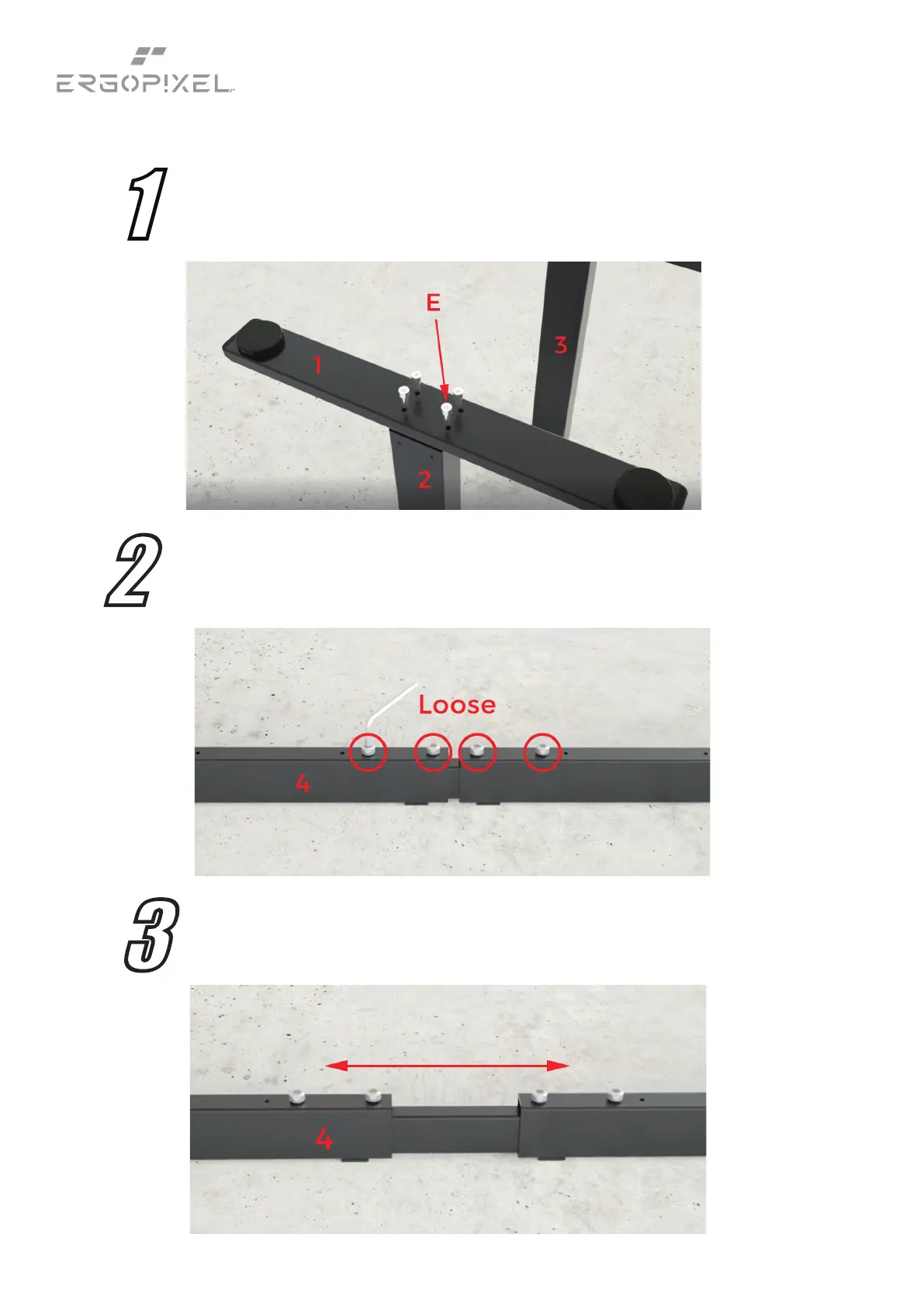

Install (1), (2) & (3) together, using the 5 x 5 allen key (A)
to tighten the screws (E).
Unscrew the 4 screws on supporting beam (4) with
the 4x4 allen key (A).
Pull out the supporting beam (4).
