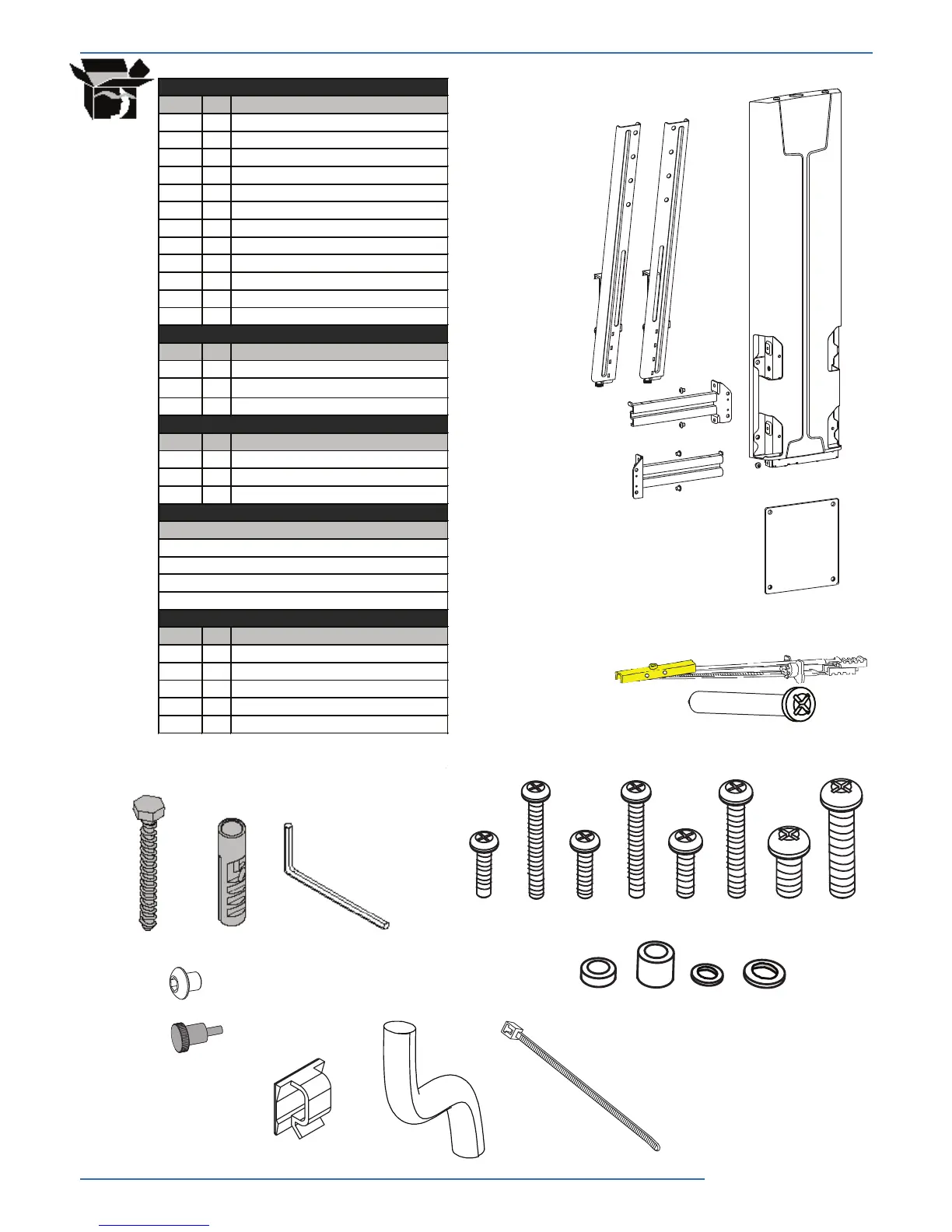

Ergotron Glide Wall Mount HD - Installation Hardware; Hardware and Component Identification

2 of 14
888-61-015-W-01 rev. C • 01/13
Screws / Hardware for Flat Panel
Part # Qty Description
M-A 4 Philips screws M4 x 15mm
M-B 4 Philips screws M4 x 30mm
M-C 4 Philips screws M5 x 15mm
M-D 4 Philips screws M5 x 30mm
M-E 4 Philips screws M6 x 15mm
M-F 4 Philips screws M6 x 30mm
M-G 4 Philips screws M8 x 15mm
M-H 4 Philips screws M8 x 30mm
M-I 4 Round Spacers: M6-M8 x 5mm
M-J 4 Round Spacers: M6-M8 x 10mm
M-K 4 Round Washers: M4-M5
M-L 4 Round Washers: M6-M8
Part # Qty Description
W-A 4 Lag Bolts (8mm x 80mm)
W-B 4 Wall Anchor (10mm OD x 8mm ID)
W-C 4 1/4-20 x Screws
Part # Qty Description
P-A 16 Button Head Screw M6X6mm
P-B 1 4mm Allen Wrench
P-C 2 Knob Screws M4x0.7"
Part # Qty Description
1 2 Verrical Rails
2 4 Horizontal Rails
3 2 Tilt Tension Knob
4 1 Lift Assembly
5 1 Wall Template
Description
Cable Clips
Cable Tubing
Cable Ties
Contents
Snap Toggles
Wall Kit
Specialty Hardware
Cable Management/Hollow Wall
M6 x 6mm
M4 x 8mm
16x
8x
2x
Screws / Hardware for Flat Panel (PN: 697-613)
Part # Qty Description
M-A 4 Philips screws M4 x 15mm
M-B 4 Philips screws M4 x 30mm
M-C 4 Philips screws M5 x 15mm
M-D 4 Philips screws M5 x 30mm
M-E 4 Philips screws M6 x 15mm
M-F 4 Philips screws M6 x 30mm
M-G 4 Philips screws M8 x 15mm
M-H 4 Philips screws M8 x 30mm
M-I 4 Round Spacers: M6-M8 x 5mm
M-J 4 Round Spacers: M6-M8 x 10mm
M-K 4 Round Washers: M4-M5
M-L 4 Round Washers: M6-M8
M-A M-B M-C
M-I M-J M-K M-L
M-D M-E M-F M-G M-H
M6 x 6mm
M4 x 8mm
16x
8x
2x
W-A W-B P-B
P-A
P-C
W-C
1-1/2 "
Hex Socket
