Ergotron Zip40 Service Manual

5 of 7
888-06-011-G-00 rev. B • 03/20
5
6

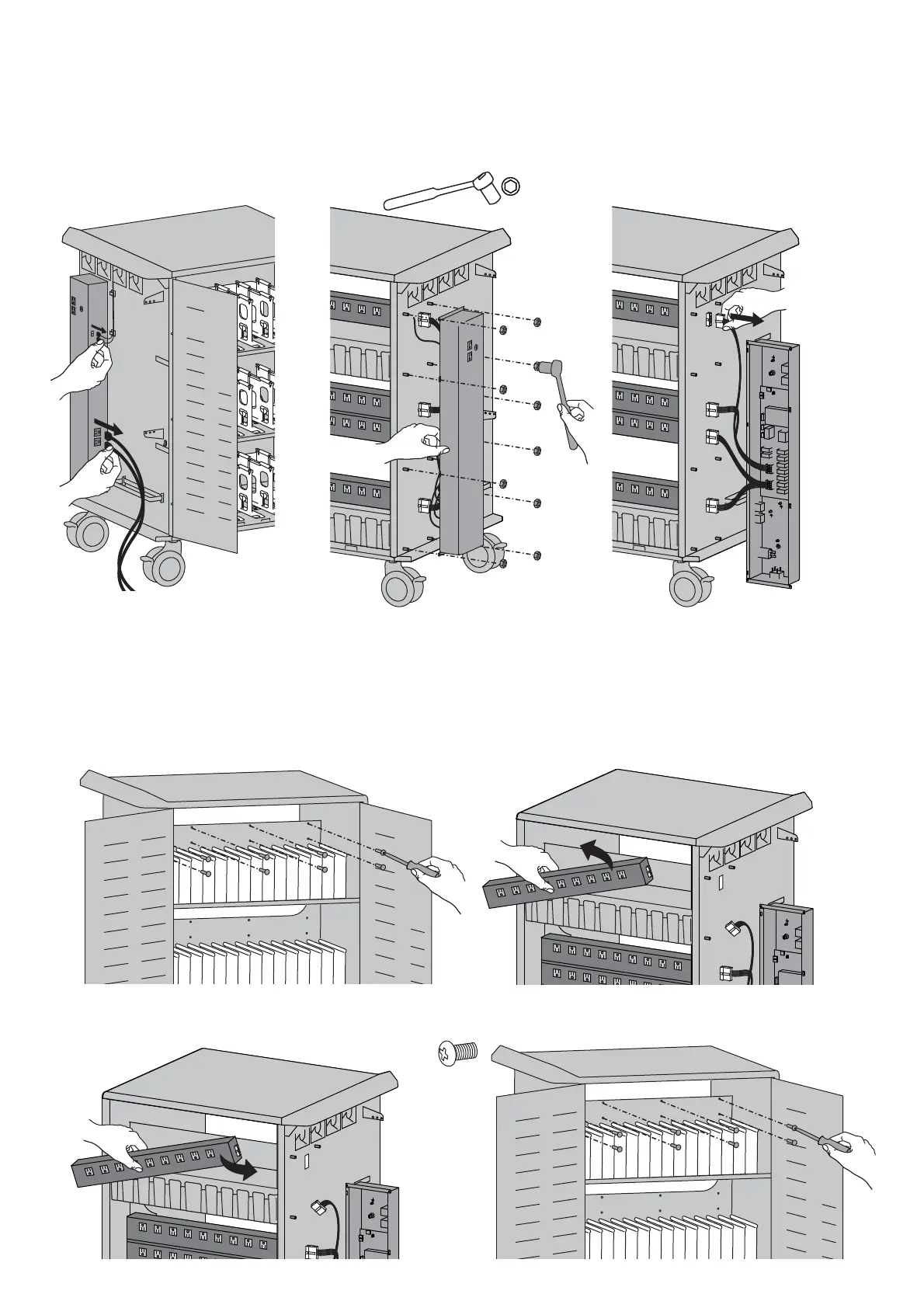

Remove Controller Box:
a. Unplug cables from controller box.
b. Unscrew 10 nuts to remove controller box.
c. Unplug outlet box you are replacing.
a. Unscrew the 8 screws and remove outlet box.
b. Attach new outlet box and secure with 8 M3 x 4mm screws.
a
a
b
b
c
7mm
8x
M3 x 4mm
