The CADWELD
®
PLUS Process

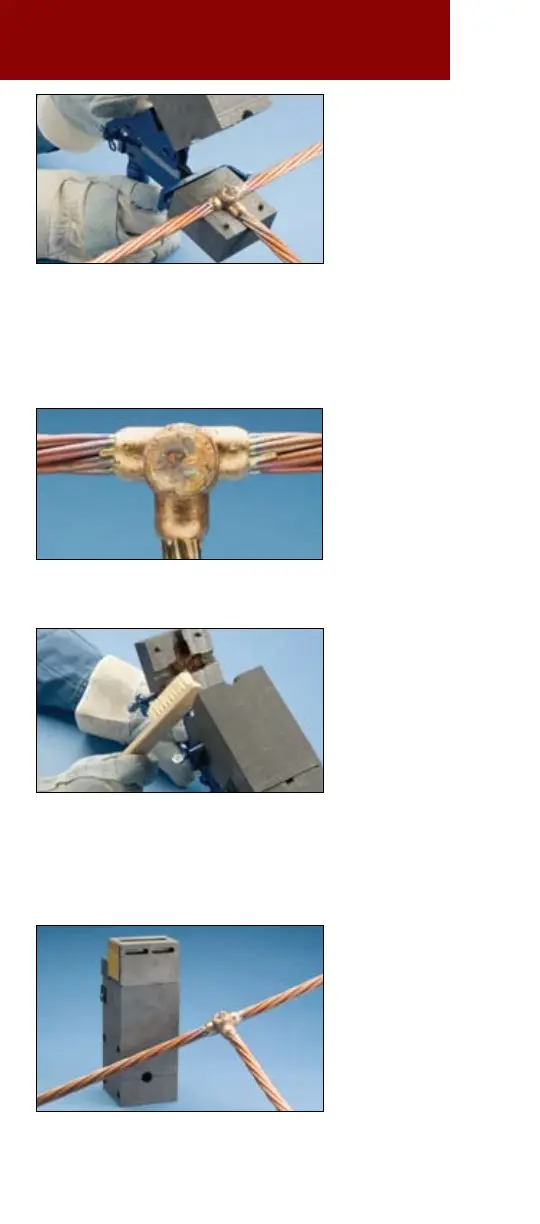

Fig. 22
Open the mold and remove the connection. Use care
to prevent chipping the mold. Avoid contact with hot
materials. Refer to the “Installers & Inspectors Section
(Appendix A)” to see whether a quality connection
has been made.
Fig. 23
Completed CADWELD
®
connection.
Fig. 24
CADWELD graphite molds will last approximately 50
connections. Use a soft cotton cloth or a soft bristle
brush (ERICO
®
part #T394) to clean inside the mold
cavity and cover.
Fig. 25
You are ready to make another CADWELD connection.
