(4) The unit supports 3-wire (DC-I) power feed. It can also support 2-wire (DC-C) power feed by making a jumper
connection in the power cable. Refer to Install 19-Inch Baseband for more information about the power cable pin out,
and Power Cables 2- and 3-Wire.
(5)
Supports synchronization over the transport network.
(6)
Hardware Activation Codes are required for use of multiple TN ports simultaneously.
(7)
Hardware Activation Codes are required for use of 10 Gbps transmission.
(8)
SFP+ is needed for transmission rates higher than 2.5 Gbps.
(9)
Multibaseband connection is only supported by Baseband 6630.
(10)
Hardware Activation Codes are required for use of more than 6 CPRI ports.
(11)
SFP+ is needed for CPRI rates higher than 2.5 Gbps.
(12)
RS-232 interface. Accessed with the LMT splitter cable.
(13) For more information about the LMT interfaces, see Connect Client.
(14)
100 Mbps electrical Ethernet interface.
(15)
Compliant with 1PPS 50 Ω phase synchronization measurement interface. Accessed with an adapter.
(16) For more information about the sync test interface, see Manage Network Synchronization.
(17)
The optical indicator indicates the status of the LMT B interface.
Do not remove dust plugs from unused ports. Always insert dust plugs into ports
that are not in use by a cable connector.
RJ-45/RJ-50 SFP Xcede
Ge15215A

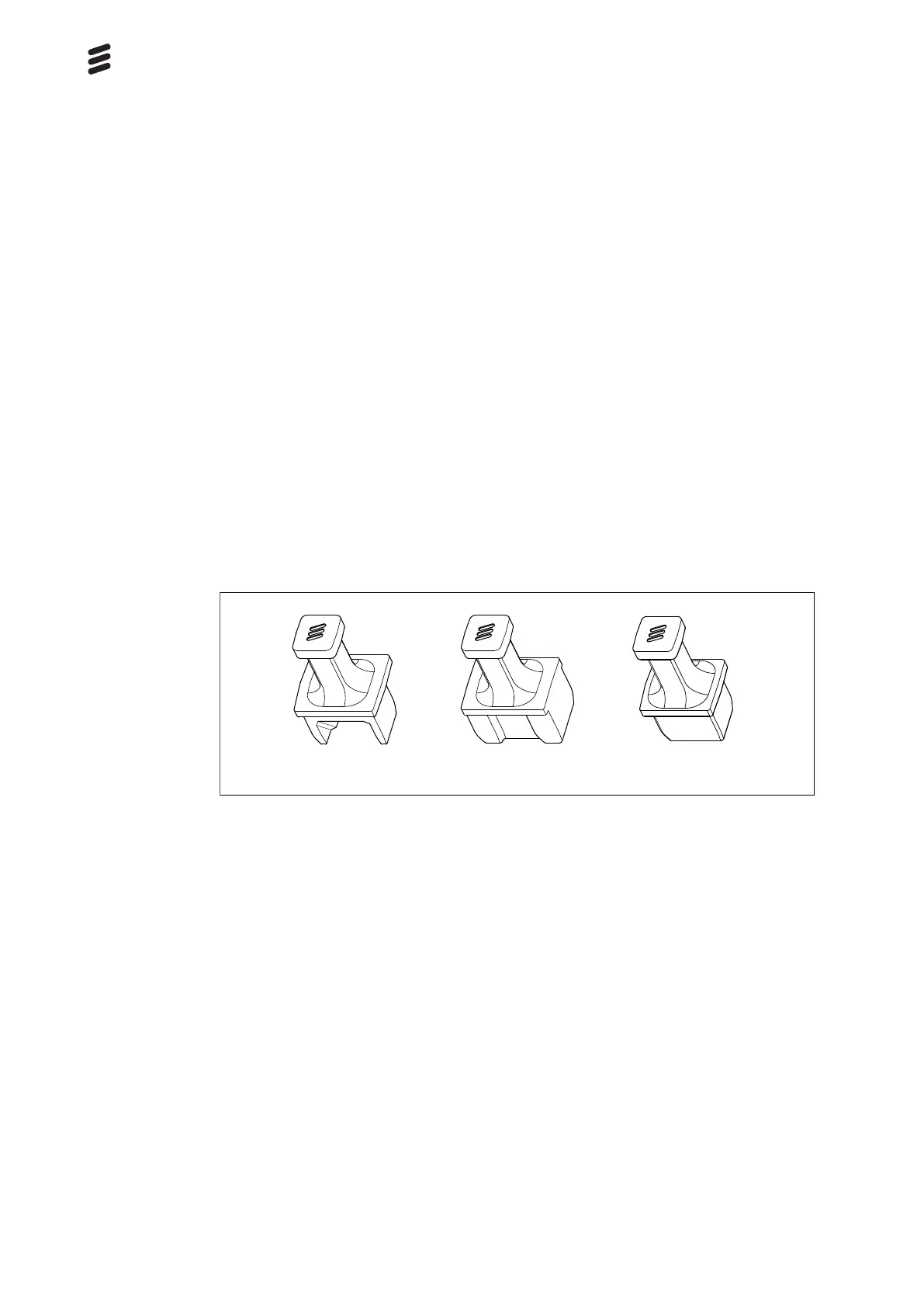

Figure 5 Dust Plugs for RJ-45/RJ-50, SFP, and Xcede Interfaces
Baseband Description
12
81/1551-LZA 701 6001/1 Uen AC | 2019-04-11
