ESAB fabricator 211i User Manual

ESAB FABRICATOR 211i
Manual 0-5450 4-17 INSTALLATION/SETUP
!
WARNING
Before connecting the work clamp to the work make sure the main power supply is switched
off.
Secure the welding grade shielding gas cylinder in an upright position by chaining it to a suit-
able stationary support to prevent falling or tipping.
!
CAUTION
Loose welding terminal connections can cause overheating and result in the male plug being fused in the
terminal.
Remove any packing material prior to use. Do not block the air vents at the front or rear of the Welding
Power Source.
Negative Welding
Te rminal (-)
Work Lead
Spool Gun
Positive Welding
Terminal (+)
Shielding Gas Hose Fitted with Quick Connect
MIG polarity lead
Spool Gun Switch
Remote Control
Socket
Art # A-10576

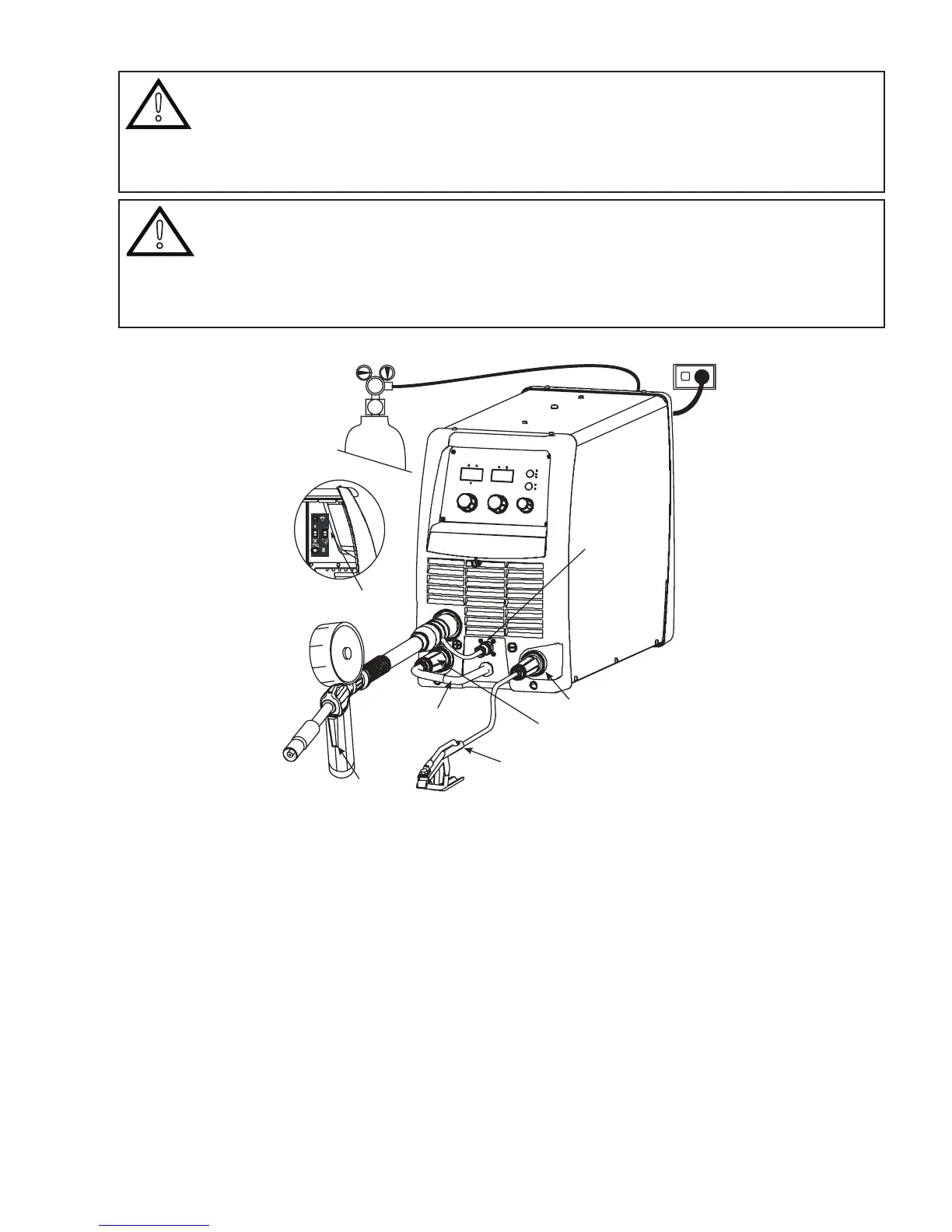

Figure 4-16: Setup for Spool Gun Welding with Gas Shielded MIG Wire
