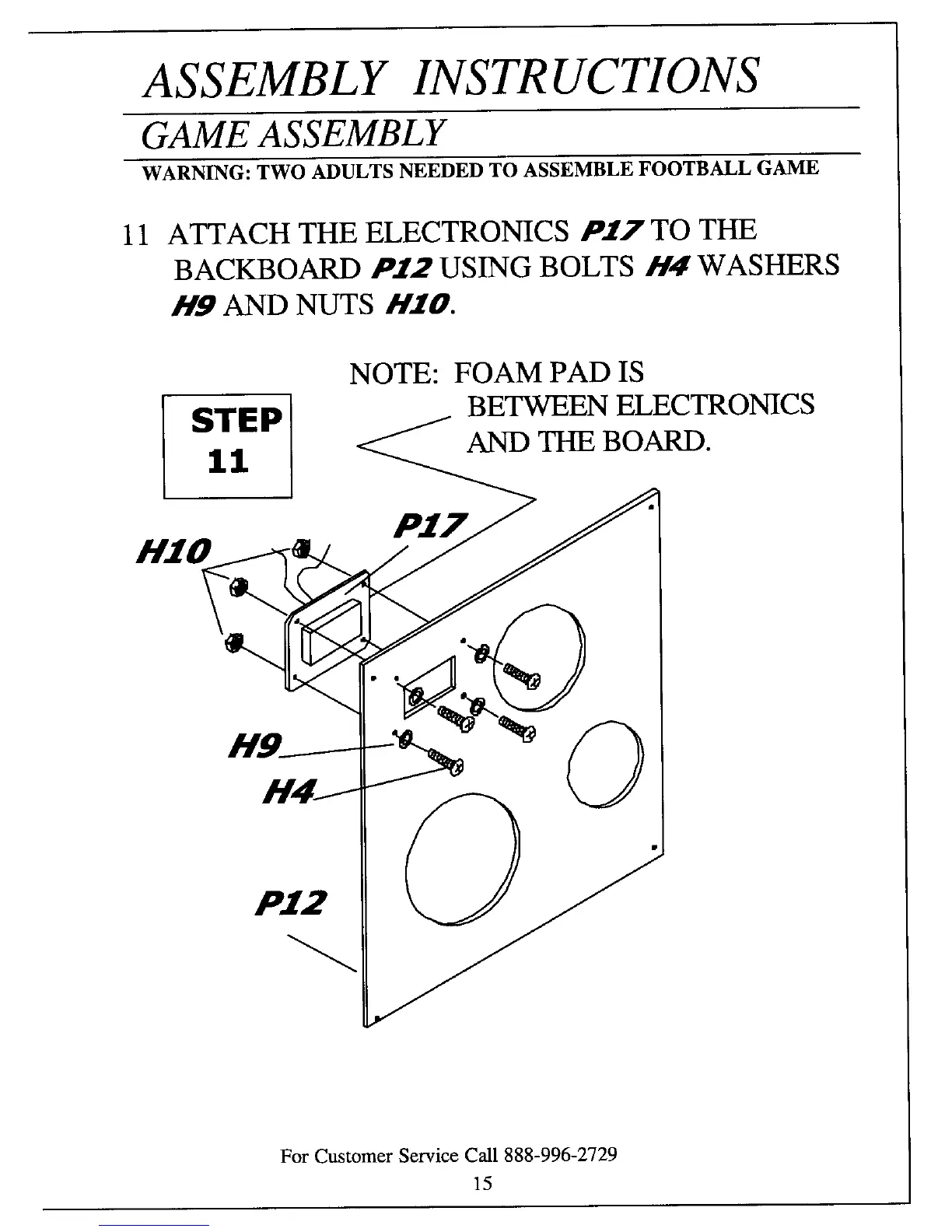

ASSEMBLY INSTRUCTIONS

GAME ASSEMBLY

WARNING: TWO ADULTS NEEDED TO ASSEMBLE FOOTBALL GAME

11 ATTACH THE ELECTRONICS P17 TO THE

BACKBOARD P12 USING BOLTS H4 WASHERS

H9 AND NUTS H10.

STEP

NOTE: FOAM PAD IS

BETWEEN ELECTRONICS

AND THE BOARD.

HIO

HgJ

H4J

P12

For Customer Service Call 888-996-2729
