Esco 90455 - Assembly Instructions

4
1.800.352.9852 • info@esco.net •www.esco.net
Manual Tire Spreader Model #90455
Assembly
1.
According to the drawing, put the movable claw support on the table.
Use the screws to stp the movable claw support at the table end
(Fig. 1,2,3)
2. Then bolt the moving clw with the support together. (Fig. 4)
3. Put the tire spreader assembly on th base plate. Tighen the handle
wheel bolt. (Fig. 5)
The Tire Spreader Is Now Ready for Operation

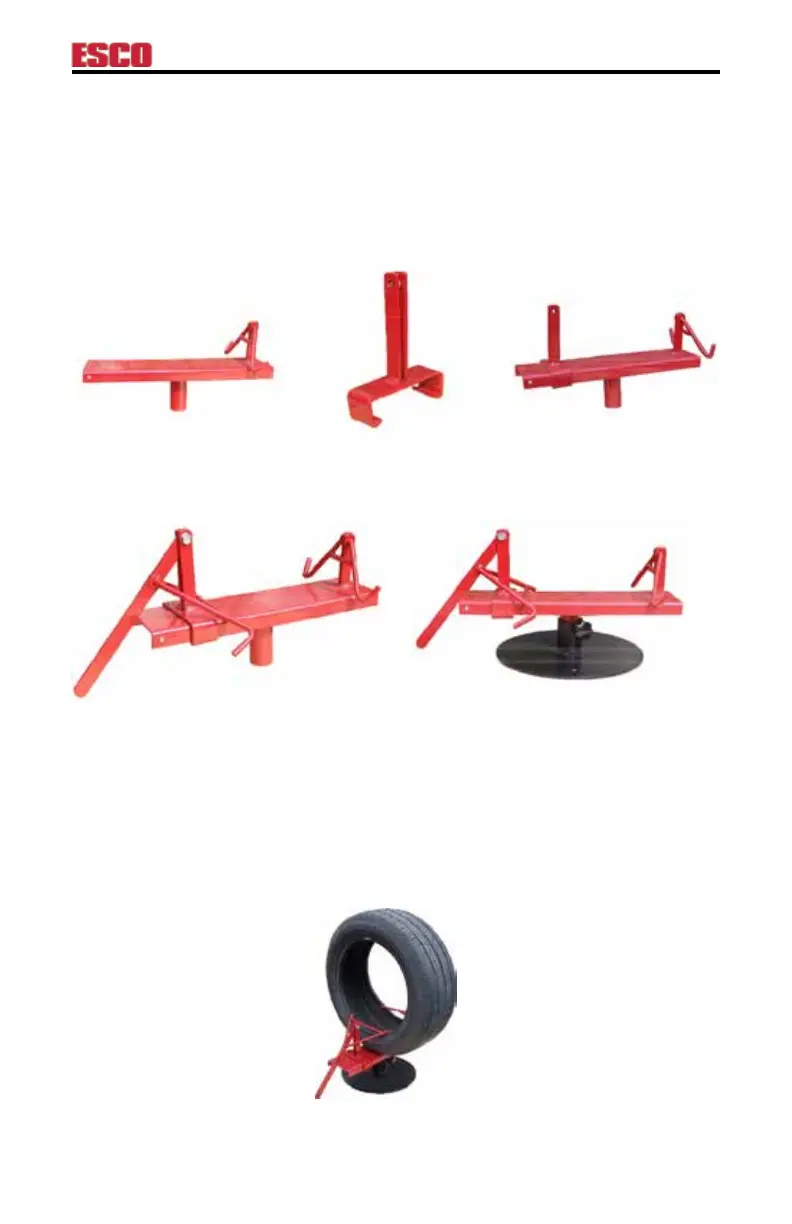

Fig. 1 Fig. 2 Fig. 3
Fig. 4 Fig. 5
