3.

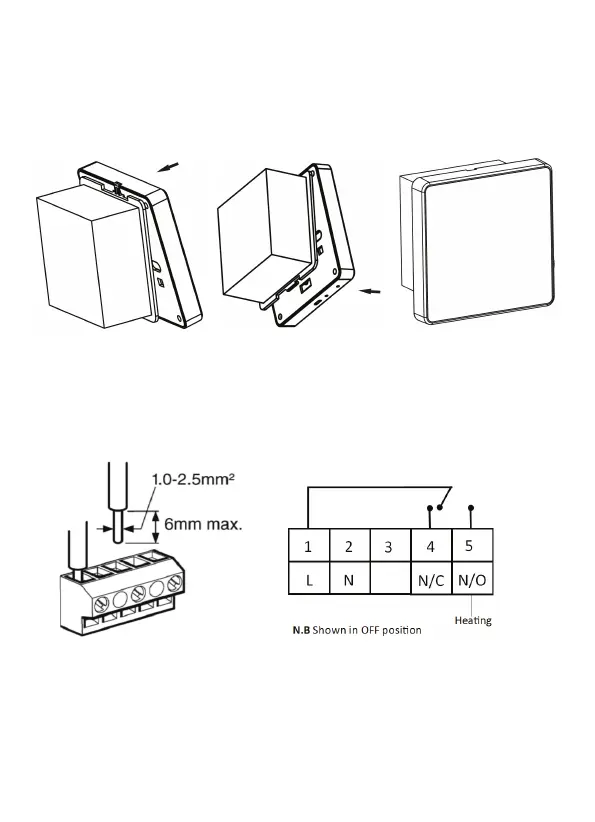

4. Fit the unit onto back-plate securing from top to bottom.
7.2.3 Wiring Diagram
5.
1 L : Live
2 N : Neutral
4 NC : Normally Closed
5 NO : Normally Open
17
Route the wires through the back of the wall plate. Fit the wires
to the wall-plate in accordance with the relevant diagram and in
accordance with I.E.E. regulations.
Ensure an appropriate fuse is fitted to the circuit before recon-
necting to the mains supply.
