transferred would destroy the data and make it unusable. It is not recommended to use the device as a MIDI
merger when you need to transfer SysEx data continuously.
Additional Options

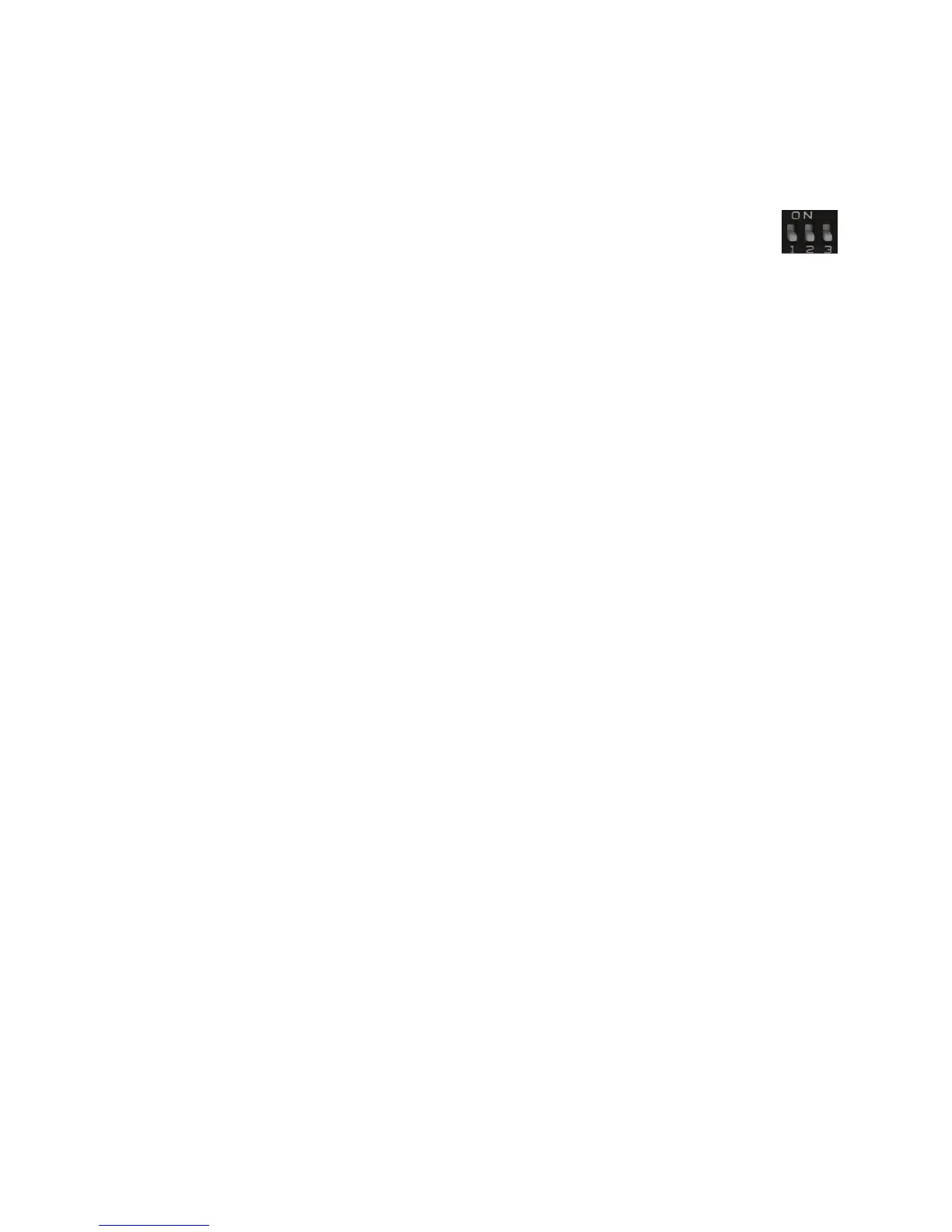

The M4U eX hardware has some additional options that can be changed via DIP switches that you can
find at the bottom of the unit. To change the settings, you need a thin ball pen or tiny screw driver or
maybe a needle. Options can only be changed when M4U eX is not connected to the computer and
also has no DC power, so disconnect those cables first before making any change.
USB 2.0 legacy vs. USB 3.0 high performance mode (DIP switch 1)
M4U eX ships with the USB 2.0 legacy mode being enabled. This is a requirement as many older operating
systems, for instance Windows 7, only have limited USB 3.0 support, in particular for MIDI devices. In USB 2.0
legacy mode, the USB MIDI interface inside M4U eX works as a USB 2.0 device, rather than as a USB 3.0
device with higher performance. The USB 3.0 hub with the 3 ports is not affected by this setting.
To disable the USB 2.0 legacy and enable the USB 3.0 high performance mode, the DIP switch number 1 must
be moved to the ON position (i.e. up). You are enabling the USB 3.0 high performance mode this way, something
that is recommended for more modern operating systems such as Windows 10 and current versions of macOS.
Using multiple units on one computer (DIP switch 2)
To make it more convenient using multiple units of M4U eX with one computer, you can designate one M4U eX
to be the first (or 'A') device and another one to be the second (or 'B') device. Your computer will then remember
which device has used which ports, i.e. you never need to change the assignment between your software and the
physical MIDI ports even if one M4U eX gets temporarily disconnected or you connect the devices with different
USB ports or cables. This is not really a requirement in order to use multiple units (for instance, you can use more
than two M4U eX at one time even), however in complex setups that are changing from time to time, this is a
nice feature. Keep DIP switch number 2 on the OFF position (i.e. down) to designate the unit as 'A' and move it
up (ON position) to designate it as 'B'. When using two M4U eX, you would setup one as 'A' and one as 'B'.
MIDI running status option (DIP switch 3)
M4U eX allows you to enable the so-called MIDI running status by moving DIP switch number 3 into the ON
position (i.e. up). With MIDI running status, it is possible to remove certain status bytes in the MIDI transfer. If
the device you connect to M4U eX supports this, you could reduce the amount of transferred data with this and
possibly improve the performance. Consult the manual of your MIDI devices for more info and check details
about MIDI running status on www.midi.org before using this.
