Operator's Manual
Sled Shelter Battery Tray
Check for parts online at www.GetEskimo.com or call 800-345-6007 M-F 8-5 CT
36357
|
ECN# 12590
|
REV 1
|
04/01/20
|
© Copyright 2020 Ardisam, Inc.
|
All Rights Reserved.
2
ASSEMBLY INSTRUCTIONS FOR SLED SHELTER BATTERY TRAY
IMPORTANT ASSEMBLY TIP
Do not fully tighten any nut and bolt combination until all bolt-on parts are assembled together!
Finger tighten only. This will help with hole-alignment of all parts.
1.
Using #34997 as a template against the side of your sled, nd a desired location and mark all 4 holes.
2.
Using the 4 marked hole locations, drill (4) 5/16” holes through the side of the sled.
3.
Attach the Sled Shelter Battery Tray by aligning #34997 and #36187 with the drilled holes and secure to
the sled by using (4) #8930B and (4) #67538.

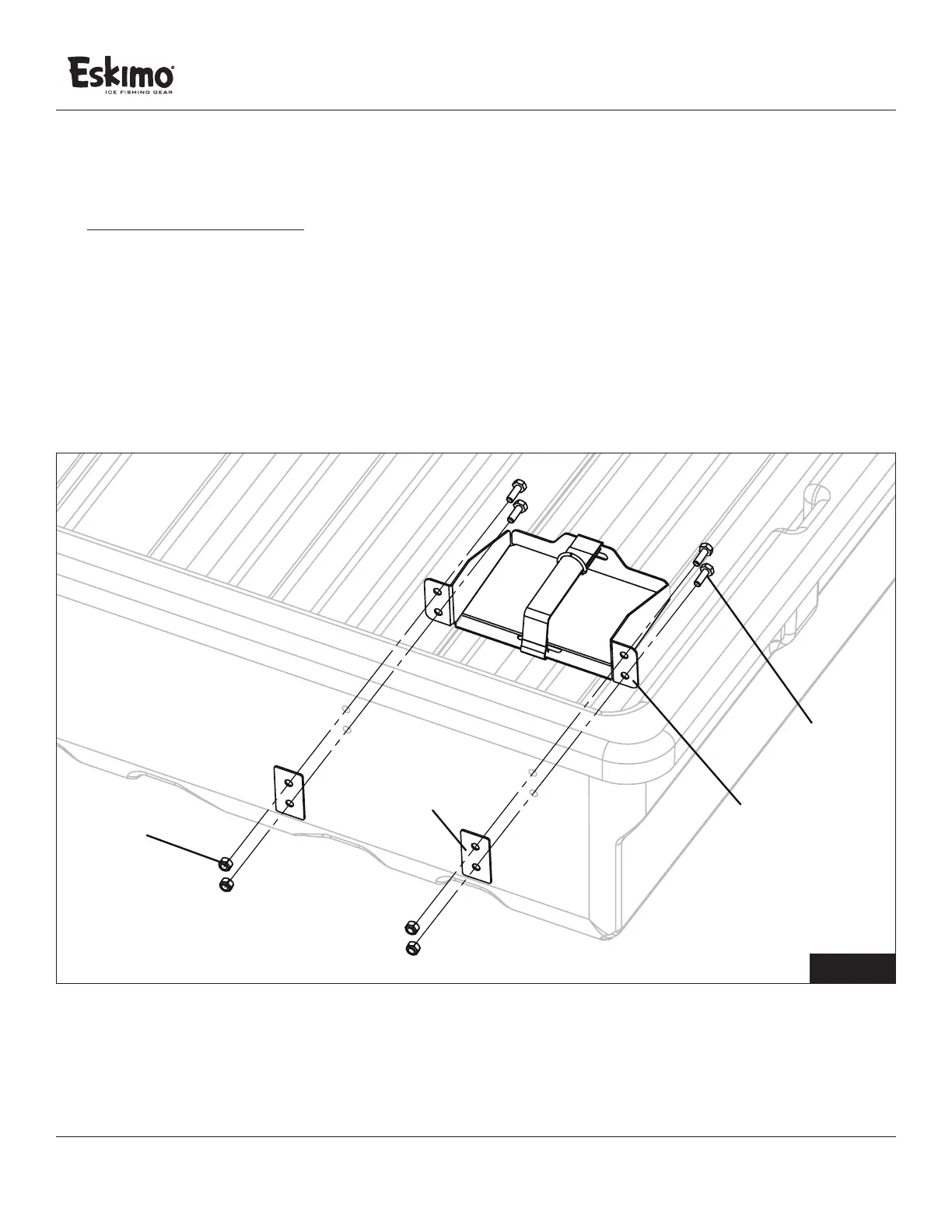

SEE FIGURE 1.
34997
8930B
67538
36187
FIGURE 1
