Esoteric X-01 Service Manual

1 SPECIFICATIONS
−2−
General
System ......................................................................SACD and CD
Power supply ........................................................AC 120 V, 60 Hz
Power consumption ..............................................................40 W
Weight................................................................25 kg (55-1/16 lb)
External dimensions (W x H x D) ..................442 x 153 x 353 mm
(17-3/8" x 6" x 13-7/8")
Operating temperature ................................................+5˚C - +35˚C
Operating humidity..........................5% to 85% (no condensation)
Storage temperature ................................................–20˚C - +55˚C
Audio output (Analog Audio)
Jacks ......................................................XLR jacks (2 channel) x 1
RCA jacks (5.1 channel) x 1
Maximum Output level (1 kHz, full scale) ..............2.5 Vrms (RCA)
2.3 Vrms (XLR)
Nominal Output level (1 kHz, full scale –20dB)..250 mVrms (RCA)
230 mVrms (XLR)
Frequency response ......................................5Hz - 58 kHz (SACD)
Signal-to-Noise Ratio (S/N)..........................112 dB (SACD, 1 kHz)
Dynamic range ............................................106 dB (SACD, 1 kHz)
Total harmonic distortion............................0.001% (SACD, 1 kHz)
Audio output (Digital Audio)
OPTICAL ..........................Optical digital jack x 1, –15 to –21 dBm
COAXIAL ............................................RCA jack x 1, 0.5 Vp-p/75 Ω
Word Synchronization input format
Jack ........................................................................................BNC
Input level ................................................................4.5 Vp-p/75 Ω
The main unit can accept and synchronize to the following
frequencies received from external devices:
44.1kHz, 88.2kHz, 176.4kHz
Accessories
Power cord x 1
Remote Control Unit (RC-941) x 1
Batteries (AA, R6, SUM-3) x 2
Screwdriver x 1
Felt x 3
Warranty card x 1
Owner’s manual x 1
• Design and specifications are subject to change without notice.
• Weight and dimensions are approximate.

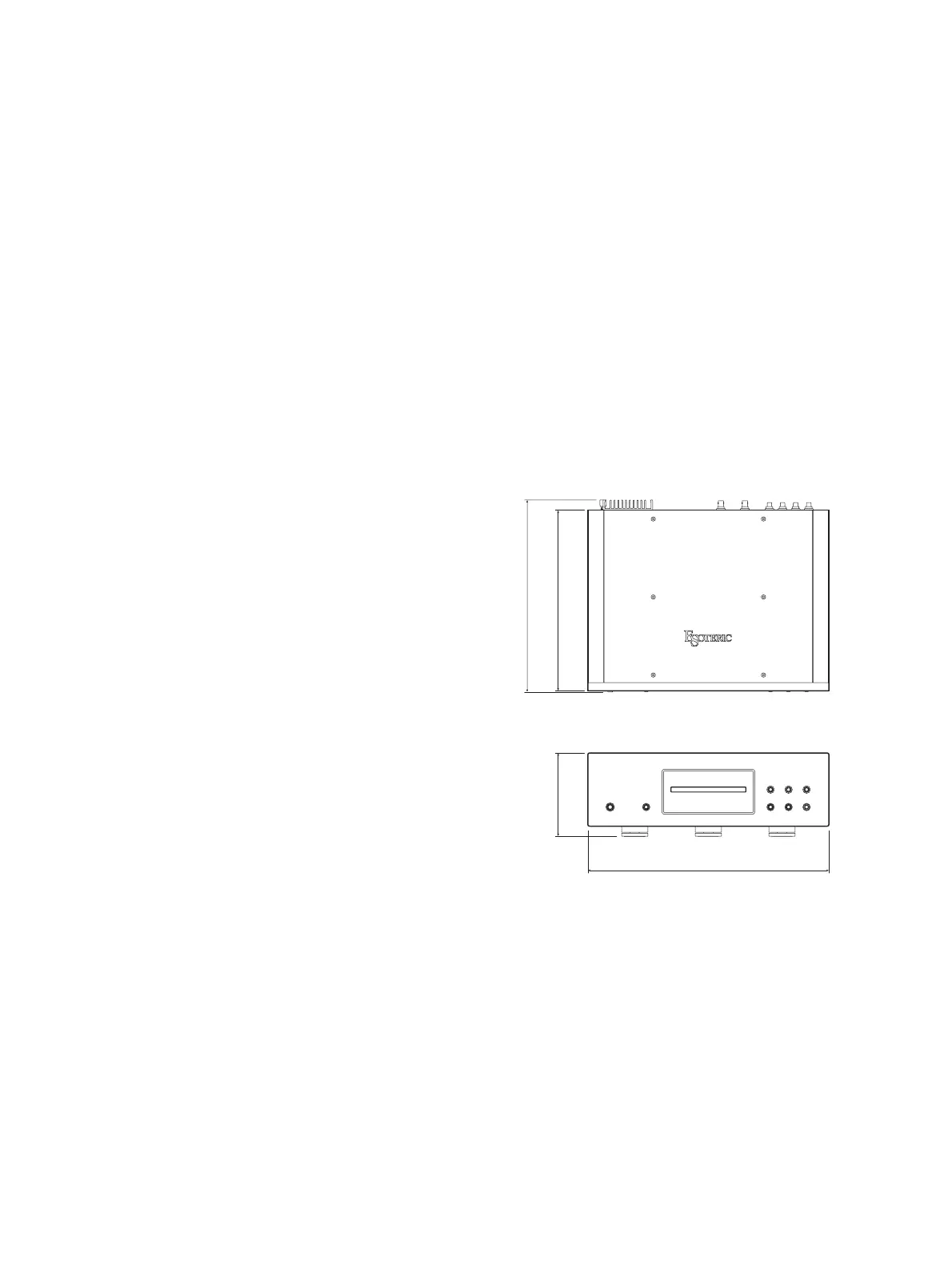

353mm 332mm153mm
442mm

Esoteric X-01 Specifications

General

Brand	Esoteric
Model	X-01
Category	CD Player
Language	English
