2. Pin Definitions
2.
Pin Definitions
2.1 Pin Layout

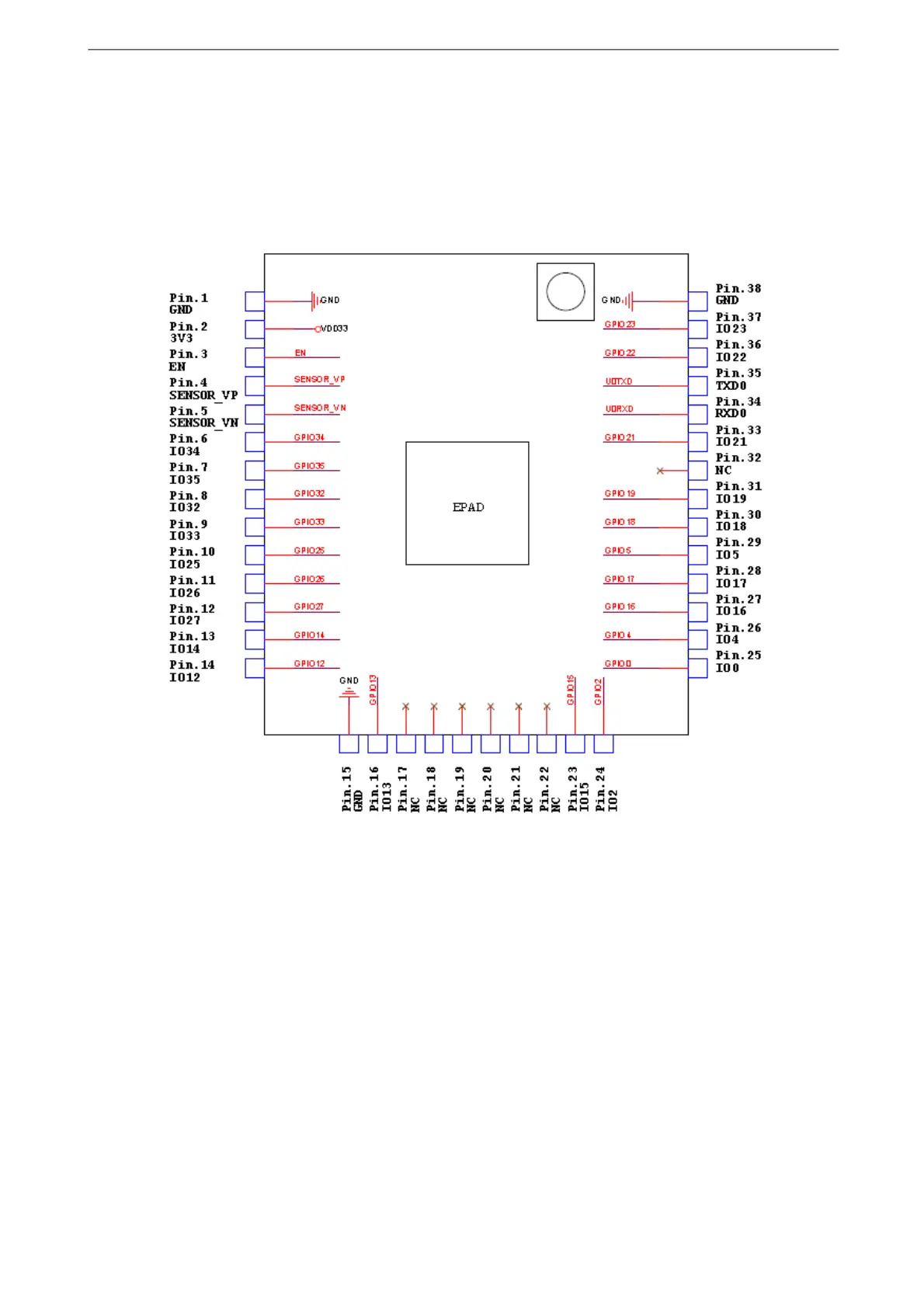

Figure 1: Pin Layout of ESP32-WROOM-32UE (Top View)
Es
pressif Systems 3
ESP32-WROOM-32UE User Manual V0.1
