INSTALLATION
13.012
CONNECT TO THE ELECTRICITY
SUPPLY
We recommend that the appliance is
connected by a competent person who
is a member of a “Competent Person
Scheme” & who will comply with the
I.E.E. & local regulations.
Important: Ensure that you route all
mains electrical cables well clear of any
adjacent heat source, such as an oven or
grill.
Warning: This appliance must be earthed.
1. Where a xed connection is used, a de-
vice allowing the appliance to be isolated
on all poles from the mains supply with a
contact opening width of at least 3mm
must be provided. A 13 amp fuse must be
used.
2. A type H05 V V-F cable must be used
as the mains lead. We recommend the
cross section of the wires to be 1.5mm².
3. The mains terminal block is located at
the right hand rear of the appliance.

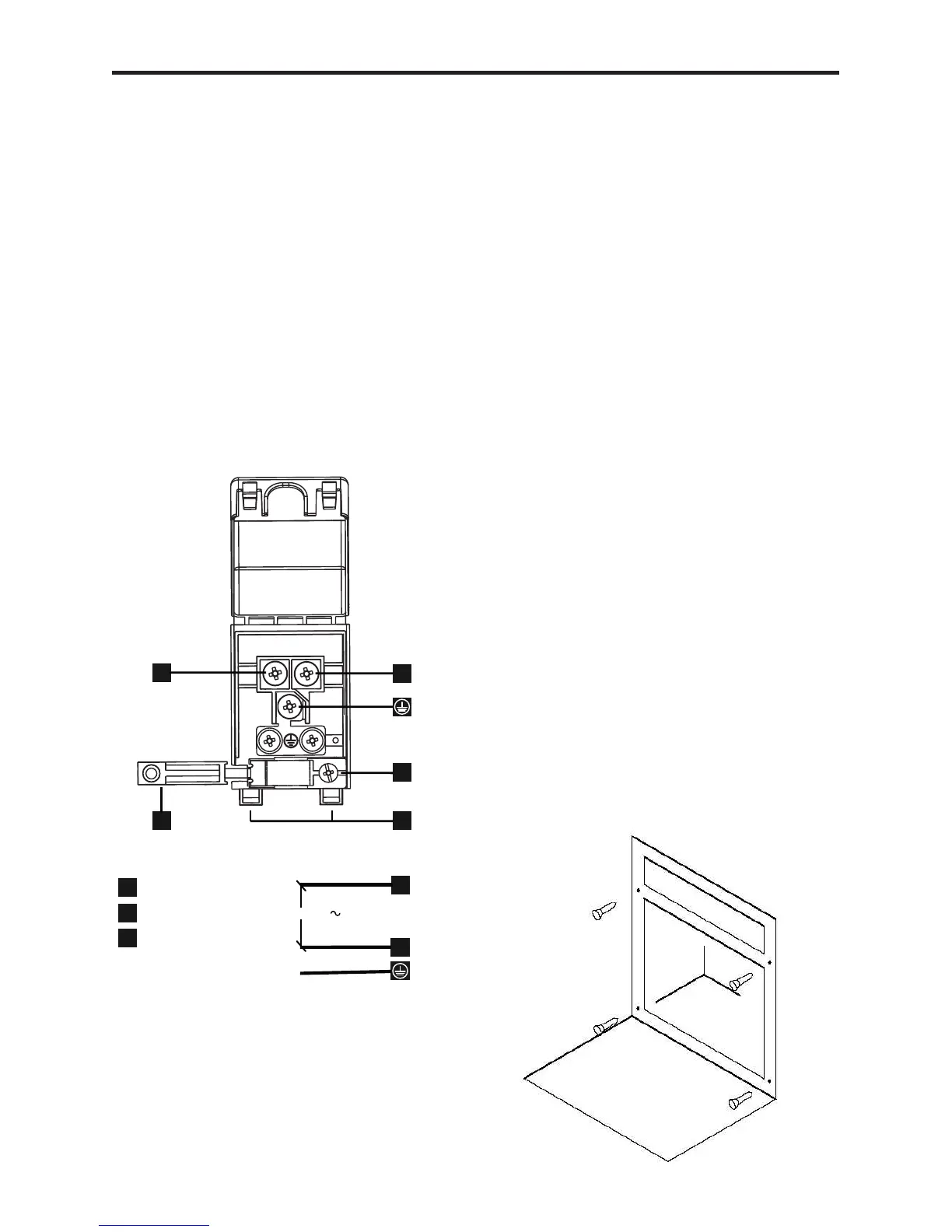

4. Follow the terminal block connection
schematic.
5. Firstly open the terminal block cover by
inserting a small at bladed screwdriver
into the door release tabs.
6. Remove the cable clamp screw to
release the cable clamp.
7. Strip the wires back & connect to the
terminal block as appropriate.
8. Fit the cable clamp & secure with the
screw provided.
9. Close the terminal block, ensuring that
the cover is closed and all screws are tight
and in place.
SECURE APPLIANCE INTO HOUSING
UNIT
Note : The unit housing the appliance
must be appropriately xed. Ensure that
the appliance is centrally located. Take
care not to damage the appliance or
cabinetry. Open the oven door and secure
the appliance using the 4 xing screws
provided.
Door release tabs
Cable clamp
Cable clamp screw
1
2
3
Live
