CAUTION: To reduce the risk of fi re or electri-
cal shock, do not use this fan with any solid state
speed control device.
Select the area you wish to cool. Evaporative
coolers work best near a partially opened door or
window to draw in fresh air. An equal amount of air
should be discharged out of the room to dispel heat
and humidity.
Fill the reservoir from the back. The reservoir holds
3 1/4 gallons of water. Pour water into the water
trough located in the lower portion of the back grille.
DO NOT OVER FILL. Water will leak out and could
cause water damage to the surrounding area. If the
reservoir runs dry, it will not harm the pump. When
transporting the unit to a different location, be very
careful not to spill the water. It is best to re-locate
the cooler, and then add water.
Plug the electrical cord into a 115-120 volt ground-
ed outlet. You may operate your cooler on one of
three speeds: low, medium or high. Turn the switch
knob clockwise to activate the pump and fan. This
will cool the air. Turn the switch counterclockwise
to operate the cooler as a fan only (pump will be
off).
When you operate your cooler without the water
circulating, it functions as a fan to circulate air.
Unpack your cooler and install the casters. Slip the
stems of the casters into the holes provided in the
bottom of the front and back grille.
CAUTION: To reduce the risk of fi re, always unplug
the cooler before attempting service of any kind.
No oil or lubrication is necessary. The motor is
permanently lubricated at the factory.
No oil or lubrication is necessary. Clean any debris
from under the pump in the inlet area.
The fi lter should be replaced each season, if it
becomes dirty or clogged.
Drain and clean the water tank. To drain, remove
the back grille and disconnect the clear hose from
the black tube. Turn unit on cool and pump out
most of the water. Wipe dry and clean with a towel.
Before reattaching the back grille, reconnect the
clear hose to the black water tube.
CAUTION: Always unplug the cooler before at-
tempting service of any kind.
POSSIBLE CAUSE/REMEDY:
1. The pump hose may have worked loose. Check
the connection at the pump and at the water tube
located in the back grille assembly. Reconnect
pump hose if necessary.
2. The water tube may be blocked. Remove the
tube and clean it out. Make sure water holes are
clear.
3. The pump or switch may be defective. Replace
pump or switch, if necessary.
POSSIBLE CAUSE/REMEDY:
1. Verify there is 115-volt power at the electrical
outlet. Check the fuse or breaker.
1. The fan switch or motor may be defective. Re-
place if necessary.
PROBLEM:
Cooler Does
Not Pump
Water
PROBLEM:
Fan Does Not
Operate
This warranty is extended to the original purchaser
only. It does not cover damages incurred during
shipping or through accident, neglect, or abuse by
the owner. Essick Air Products/Champion Cooler
does not authorize any person or representative to
assume any other or different liability in connection
with this cooler.
All original parts provided by Essick Air Products/
Champion Cooler are warranted against defects in
material or factory workmanship for one year.
Essick Air Products/Champion Cooler is not re-
sponsible for incidental or consequential damage
resulting from any malfunction.
Essick Air Products/Champion Cooler is not re-
sponsible for any damage occurring from the use of
water softeners, chemicals, de-scale material, or if
a higher horsepower motor is used in the unit other
than what Essick Air Products recommends.
Essick Air Products/Champion Cooler is not respon-
sible for the cost of service calls to diagnose cause
of trouble, or labor charge to repair and/or replace
parts.
Contact the Dealer where you purchased the
evaporative cooler. If for any reason you are not
satisfi ed with the response from the Dealer, contact
the Customer Service Department: Essick Air
Products, 5800 Murray Street, Little Rock, Arkansas
72209 or call 800-643-8341.
Register your product online at:
www.essickair.com/eac/onlineregistration-eac.htm
Terms And
Conditions Of
Warranty
Exclusions
From
Warranty
How To
Obtain
Service
Under This
Warranty
Register
Product
Motor
Pump
Filter
Water Tank
MAINTENANCE
LIMITED WARRANTY
TROUBLE SHOOTING
EVAPORATIVE COOLER
OPERATION
REPLACEMENT PARTS LIST
LISTA DE PIEZAS DE RECAMBIO
MOTOR
RED
BLACK
BLUE
WHITE
4
WHITE /
RIBBED
(COMMON)
BLACK /
SMOOTH
(HOT)
PUMP
32
AB
1
RIBBED
SUPPLY
SMOOTH
115V
GREEN
3 SPEED
SWITCH
GREEN (GROUND)
WIRE NUT OR
CRIMP TERMINAL
DE 115V
MOTOR
BLANCO
AZUL
NEGRO
ROJO
4
NEGRO / LISO
BOMBA
231
LISO
VERDE
ACANALADO
INTERRUPTOR DE
3 VELOCIDADES
BA
ABASTECIMIENTO
BLANCO /
ACANALADO
VERDE (TIERRA)
EMPALME PLASTICO
16

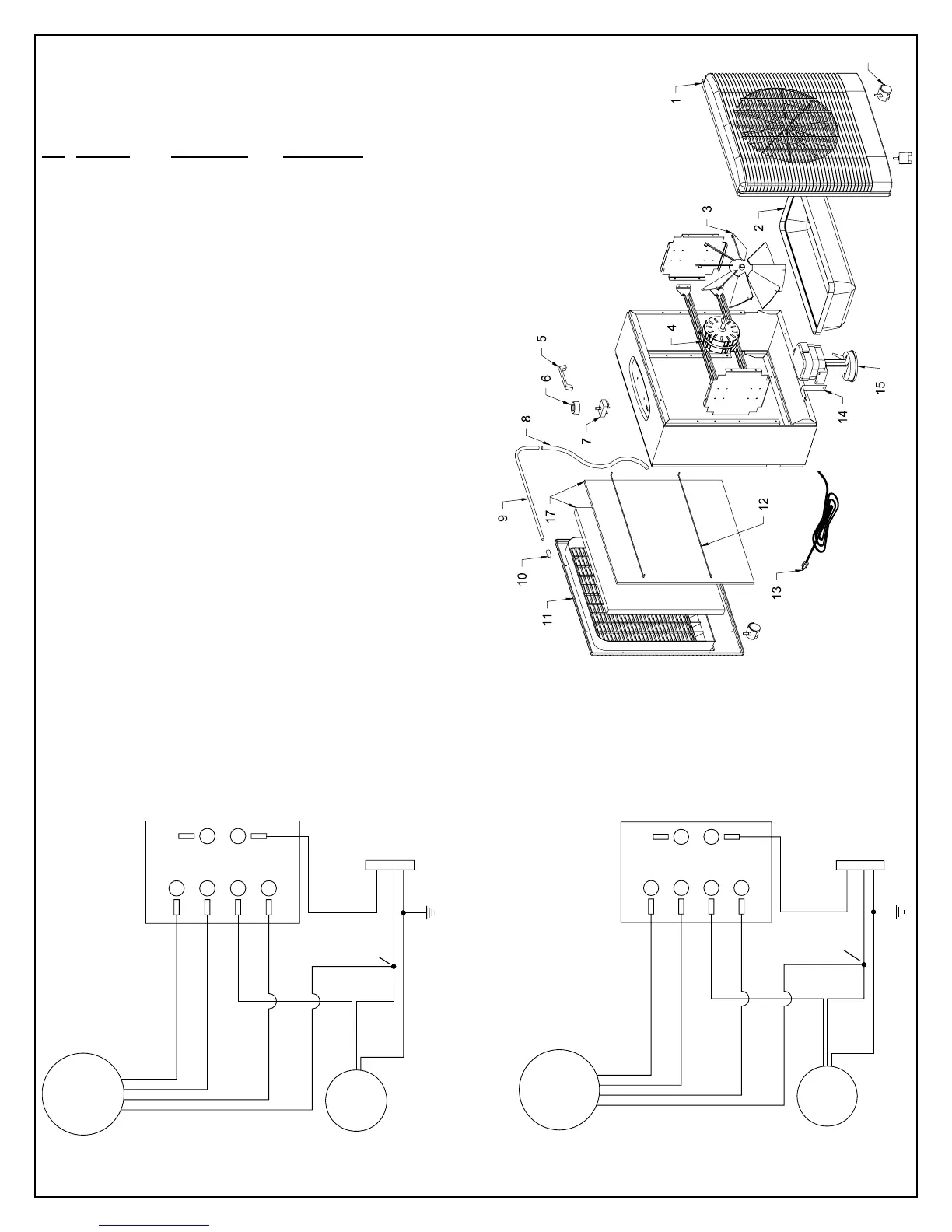

1 110845-12 Front Grille Rejilla Anterior
2 110850-1 Reservoir Depósito De Agua
3 110846-1 Fan Blade Hoja De Ventilador
4 110441-3 Motor Motor
5 110849-1 Handle Asidero
6 110845-14 Knob Perilla
7 110425-1 Switch Interruptor
8 110718 Hose Manga
9 110588-1 Tube Tubo
10 110721 Tube Cap Tapa Del Tubo
11 110845-11 Back Grille Rejilla Posterior
12 250001-004 Pad Retainer Soporte De Filtros
(2 req’d) (2 req’d)
13 110394-1 Power Cord Cable De Corriente
14 224135-001 Pump Mount Soporte De La Bomba
15 110438 Pump Bomba
16 110822-4 Casters Ruedecilla
(4 req’d) (4 req’d)
17 310124-1 Pad Set Montaje De Filtros
No. Part No. Description Descripción
WIRING DIAGRAM ESQUEMA DE CABLEADO
