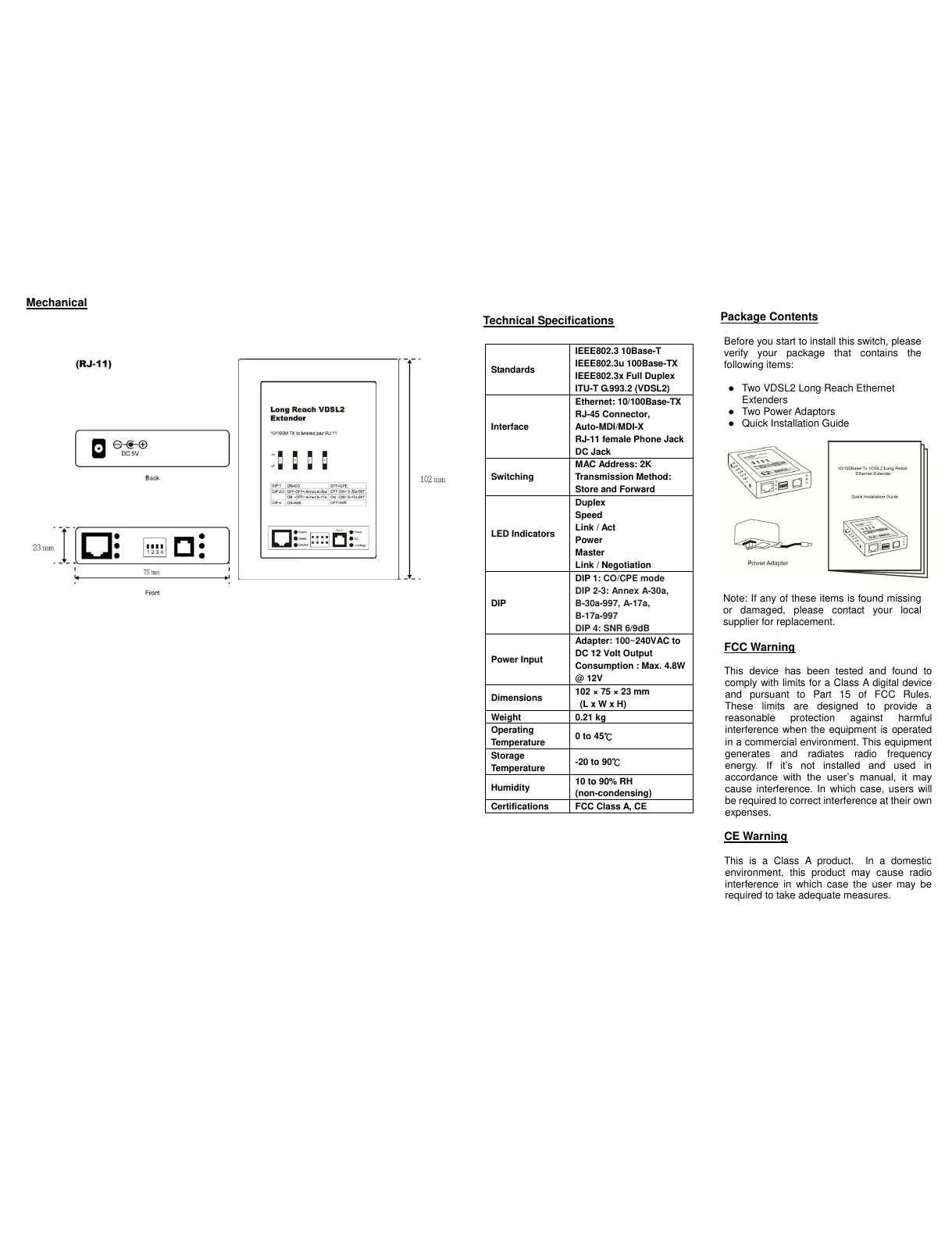

Mechanical
Technical Specifications
Standards
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3x Full Duplex
ITU-T G.993.2 (VDSL2)
Interface
Ethernet: 10/100Base-TX
RJ-45 Connector,
Auto-MDI/MDI-X
RJ-11 female Phone Jack
DC Jack
Switching
MAC Address: 2K
Transmission Method:
Store and Forward
LED Indicators
Duplex
Speed
Link / Act
Power
Master
Link / Negotiation
DIP
DIP 1: CO/CPE mode
DIP 2-3: Annex A-30a,
B-30a-997, A-17a,
B-17a-997
DIP 4: SNR 6/9dB
Power Input
Adapter: 100~240VAC to
DC 12 Volt Output
Consumption : Max. 4.8W
@ 12V
Dimensions
102 × 75 × 23 mm
(L x W x H)
Weight
0.21 kg
Operating
Temperature
0 to 45℃
Storage
Temperature
-20 to 90℃
Humidity
10 to 90% RH
(non-condensing)
Certifications
FCC Class A, CE
Package Contents
Before you start to install this switch, please
verify your package that contains the
following items:
 Two VDSL2 Long Reach Ethernet
Extenders
 Two Power Adaptors
 Quick Installation Guide
Note: If any of these items is found missing
or damaged, please contact your local
supplier for replacement.
FCC Warning
This device has been tested and found to
comply with limits for a Class A digital device
and pursuant to Part 15 of FCC Rules.
These limits are designed to provide a
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment. This equipment
generates and radiates radio frequency
energy. If it’s not installed and used in
accordance with the user’s manual, it may
cause interference. In which case, users will
be required to correct interference at their own
expenses.
CE Warning
This is a Class A product. In a domestic
environment, this product may cause radio
interference in which case the user may be
required to take adequate measures.
