INSTALLATION AND CONNECTION

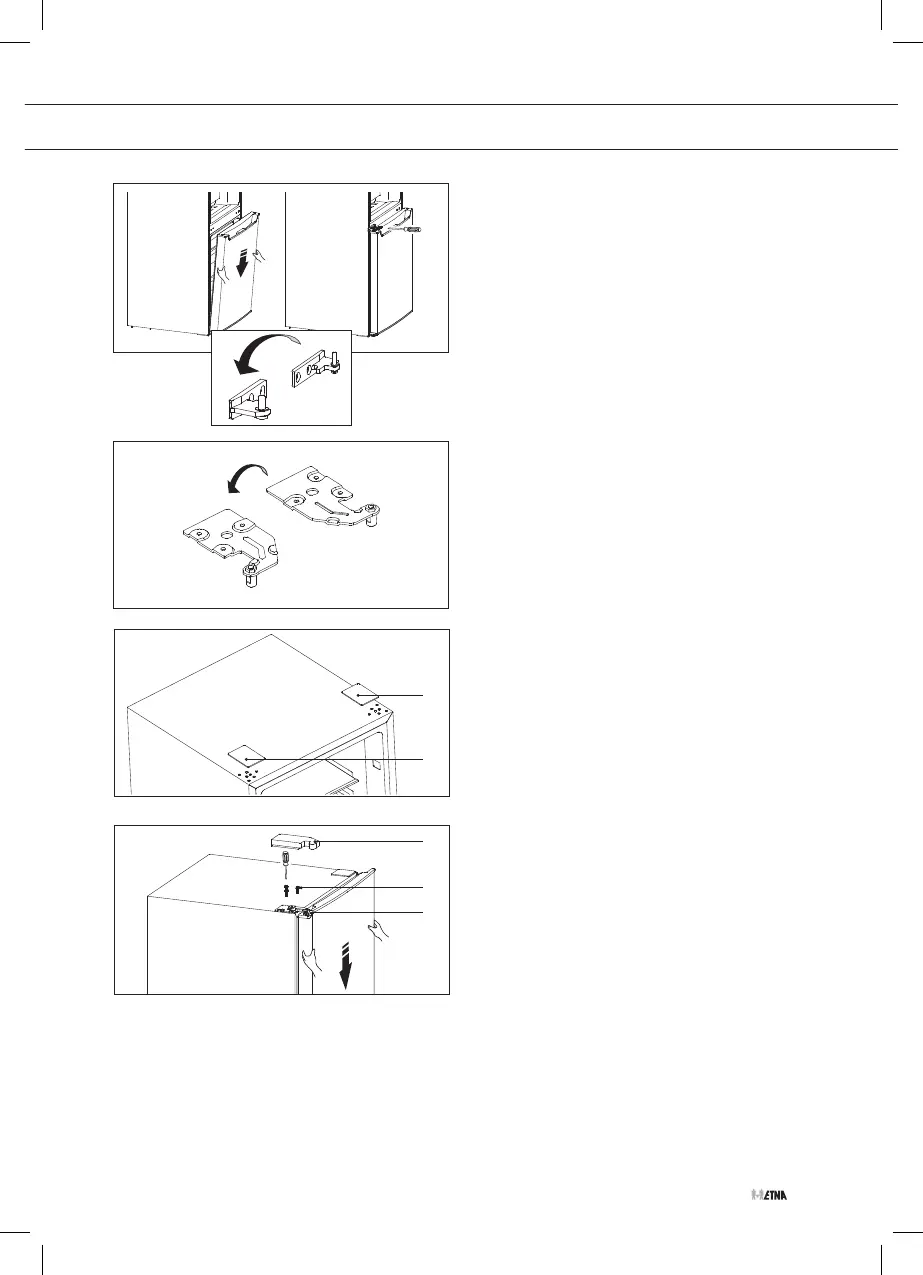

15. Place the freezer door on the lower hinge.
16. Place the middle hinge in the freezer door.
Pay attention to the positioning of any
adjustment washers.
17. Position the freezer door and tighten the
screws of the middle hinge.
18. Move the pivot point of the upper hinge to
the other side of the hinge plate.
19. Move the cover plate (1) for the threaded
holes for the upper hinge to the other
side (2).
20. Place the refrigerator door on the middle
hinge.
21. Place the upper hinge in the refrigerator
door.
22. Position the refrigerator door and tighten
the screws (2) of the upper hinge (1).
23. Place the separately supplied cover
plate(3) over the upper hinge.
24. Place the door compartments back in the
refrigerator door.
25. Level the device again using the levelling
feet.
2
1
1
2
3
