DMX-P08 DMX-P08
CMD: 0x04
1.3.4 ON/OFF control (0×04):
SubCMD:0×00 ON, 0×01 OFF
Without Memory function, default status is ON, after power on

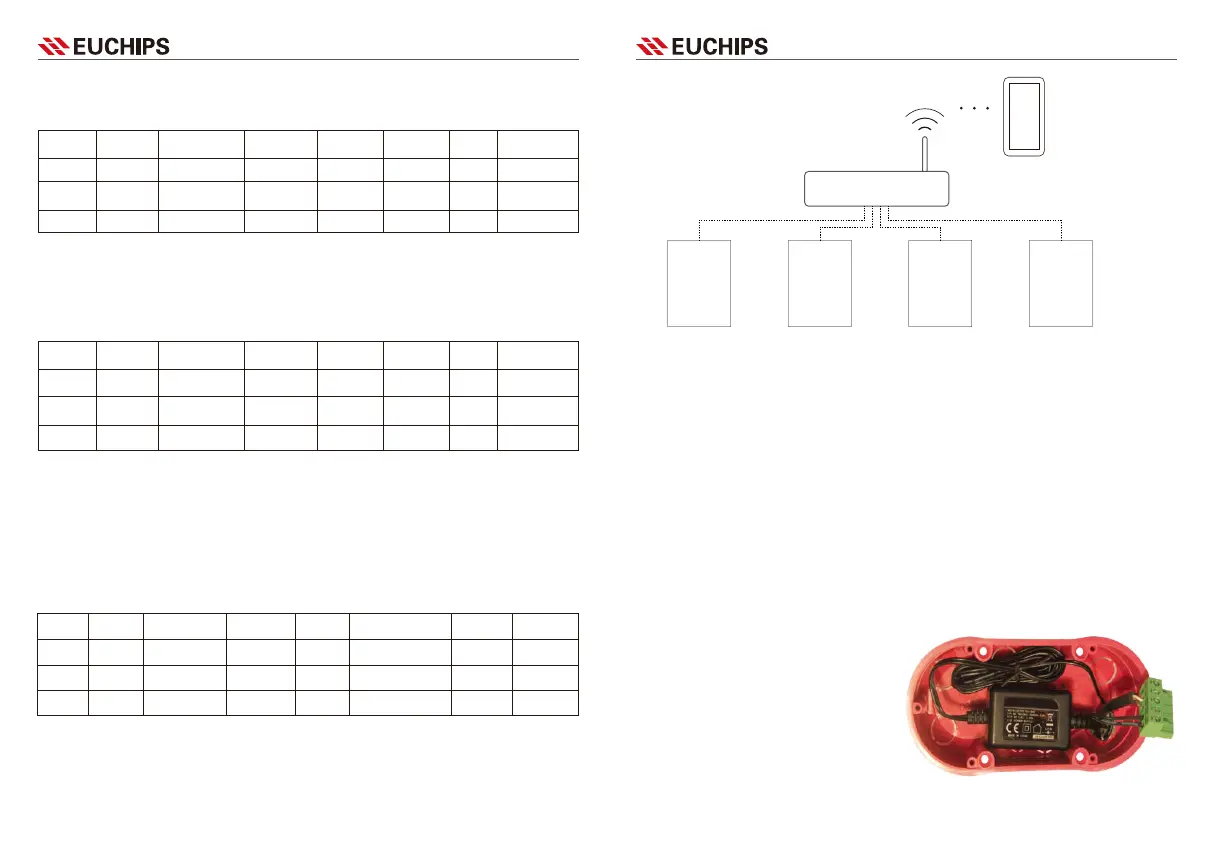

Byte0 Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7
'E' 'U' Device code Device No CMD SubCMD 0 0
Byte8 Byte9 Byte10 Byte11 Byte12 Byte13 Byte14
0 0 0 0 0 0 CRC
ACKCMD: 0x84
Status: 0×0 CMD Failure, 0×01 CMD Success
Byte0 Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7
'E' 'U' Device code Device No ACKCMD Status
Byte8 Byte9 Byte10 Byte11 Byte12 Byte13 Byte14
0 0 0 0
0 0
0 0 CRC
1.3.5 Get \ set device number(0×05):
It is used when a single machine is connected , and is used for setting equipment numbers, so that
different equipment can be distinguished when multiple machines are used together.
CMD:0x05,
Byte0
Byte1 Byte2 Byte3 Byte4 Byte5
Byte6
Byte7
'E'
'U' Device code
Device No
CMD
SubCMD
Para0
0
Byte8
Byte9
Byte10
Byte11 Byte12
Byte13
Byte14
0 0 0
0
0 0
CRC
Device No:0xFF,
Broadcast or specify equipment number modification;
SubCMD:
0x00 :Get device number,Para0: 0x00
0x01 :Set device number,Para0:Device number
ETHERNET ROUTER/HUB
WIFI
Mobile phone
DMX-P08 DMX-P08 DMX-P08 DMX-P08
Configuration of the master/slave
Master/slave mode
When multiple devices are cascaded, all devices need to be connected to the same local area
network ( i.e., the same router ) with network cables. Each device will automatically acquire an
independent IP address in the local area network. as shown in the following figure, you can see in the
about interface, when all the IP addresses of the devices are acquired, you can select any one of the
devices to set as the master ( with the master option √ ), and the other devices will be set as the slave
control by default. the master will trigger the operation and then pass it to the slave control. However,
the split control is out of sync with the master control when controlling the scene to be played by itself.
Therefore, the sub-control can start and play different scenes. The main controller is like an ordinary
remote controller to control other sub - controllers.
Note: when setting up the master control on the LAN, only one of them can be selected as the
master control, and not more than one can be selected at the same time.
Installation Guide
4.To lock the glass panel and fix it with the screwdrive
1. Mount an electrical box inside the wall
DMX-P08 can be installed in any standard electrical
box,you can insert the adapter inside or outside the
electrical box
2. To lock the back cover on the electrical box and
fix it with the screwdrive
3.Connect the wires
DMX: Connect the DMX cable to the lighting recivers
Power: Make sure to not invert the + and the ground
7Specification :V01 8Specification :V01
