12
The product has been tested and tried even under extreme conditions and produced good
results with respect to safety and grip. We are therefore able to exclude malfunctions if the
fitting has been carried out correctly.
Dear Customer, in observance of the German highway code and the existing bearing load
and max. loading capacity, this rear bike carrier may also be used for transporting other
goods or objects. However, secure fixing of these goods or objects must be guaranteed.

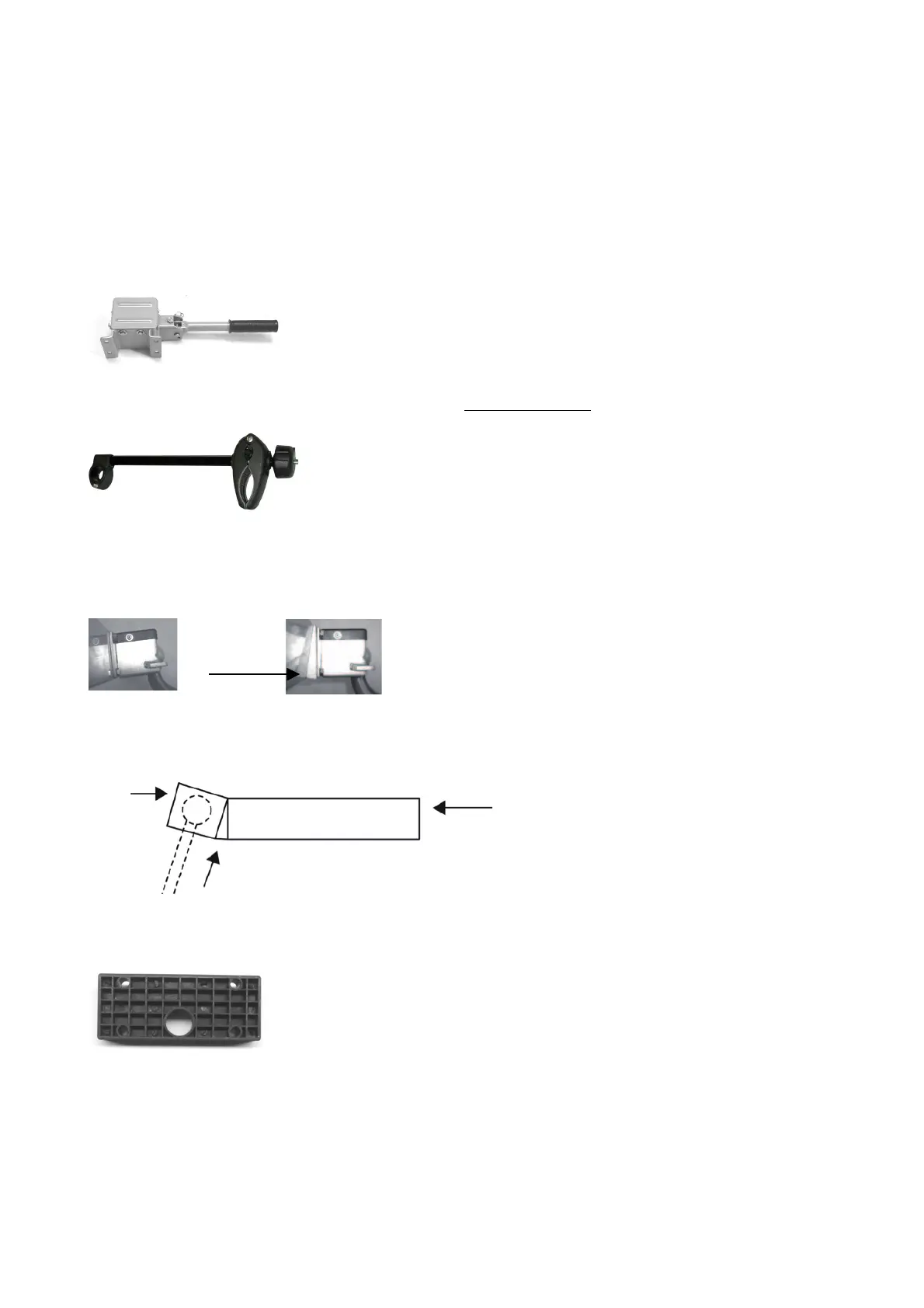

The carrier may be modified using original parts, for example:
(needs to be ordered separately)
Art. No. 11446 expansion set for the 3
rd
cycle
Art. No. 11402 a quick release fastener for fast and simple assembly to the towbar.
Art. No. 11232 lockable frame holder 115mm
Art. No. 11234 lockable frame holder 180mm for the 3
rd
cycle
Art. No. 11233 lockable frame holder 310mm
And because the attachment for the 3
rd
cycle involves attachments from cycle to cycle, you
will also need the lockable frame holder 11234. This frame holder can be fitted with large clips
on both sides. This set of clips is included in the delivery scope.
Art. No. 11442 wedge washer
In the case of some towbars, the rack table may tilt somewhat toward the road surface. To
compensate this tilt, we also supply a wedge washer which is position between the base and
the rack table.
Art. No. 11441 adapter plate to increase the distance from the towbar to the rack table in case
the boot of the car cannot be opened.
All these parts can be combined with each other and will be supplied with the required at-
tachment materials. All original conversion parts are officially approved. Please observe the
assembly instructions to ensure proper and secure assembly.
If in doubt with regard to these instructions, please contact your dealer or the manufacturer for
further information.
The manufacturer and the dealer will not be liable for damage or injury caused by in-
correct assembly or improper use.
Wedge
washer
Wedge washer
Rack table
Base
