Mounting the wheel rails

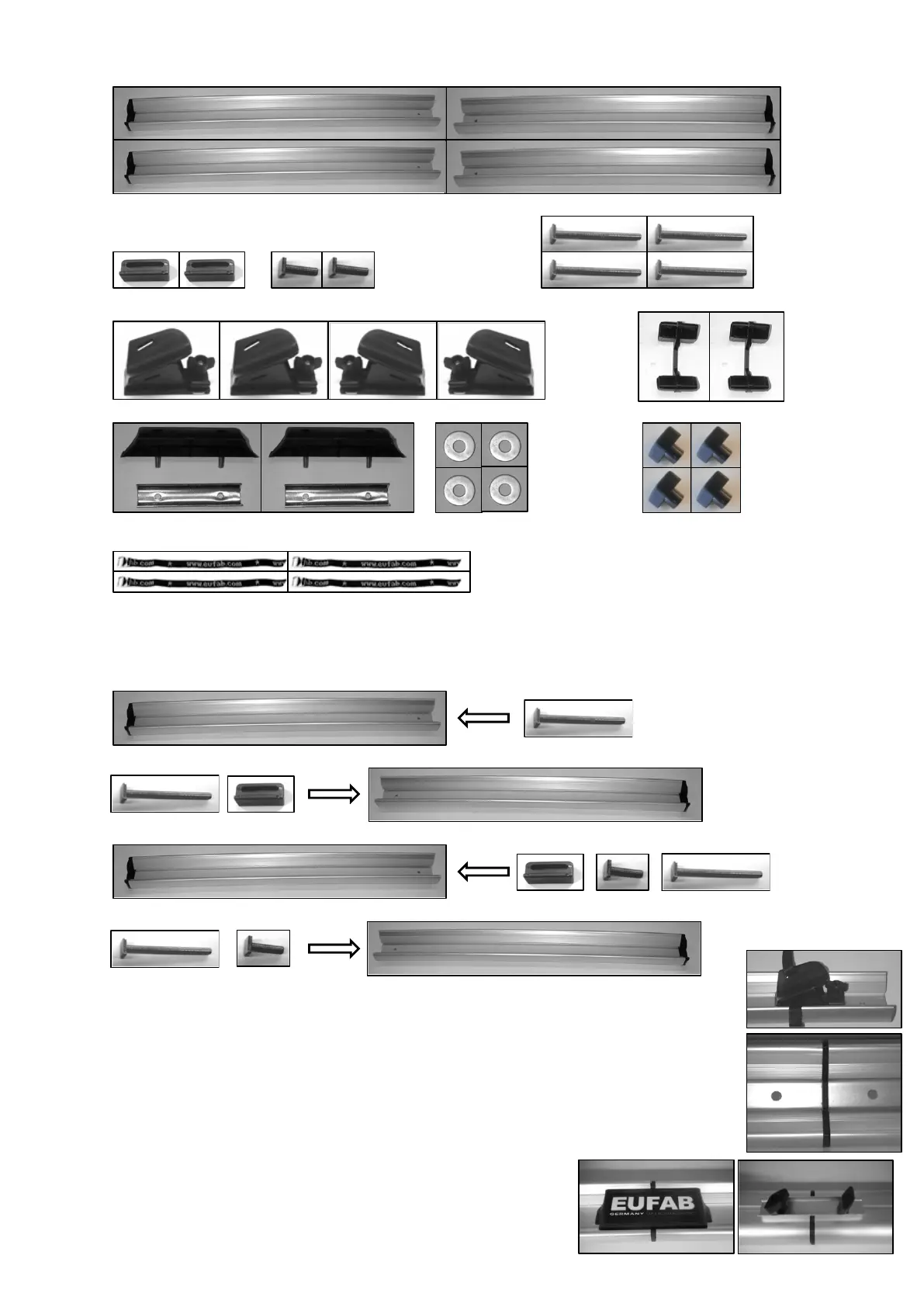

4 x Wheel rails halves
2 x Strap guide 2 x Link screw M6 x 25 4 x Link screw M6 x 75
4 x Wheel stopper 2 x Rail connector
2 x Connecting element with metal loop 4 x Washer 4 x Wing nut M6
4 x Tensioning strap, small
Place the 4 rail halves in front of you as shown on the pictures below, and guide the components in the
sequence shown under the rail into the existing link.
Pull one tensioning strap through each wheel stopper. Now insert one wheel stopper in
each wheel rail into the topmost link.
Make sure that the wheel stopper can be pushed from the inside to the outside towards
Connect the right and left halves of rail 1 with a rail connector.
Insert the connecting element from the top with the threaded bolt in the drilled holes of
the wheel rail. From below, insert the metal loop with the ridges facing outwards, over the threaded bolt and
screw firmly with two washers 11.9 x 6.5 x 0.9 and two wing buts.
Repeat this assembly process for rail 2.
